Frame the area, then set the view
Use the motorized 5× optical zoom to tune a single camera’s view from wider context to a tighter area. Pan, tilt and rotation are set manually at the mount.
LOREX CONNECT · WIRED POE SECURITY

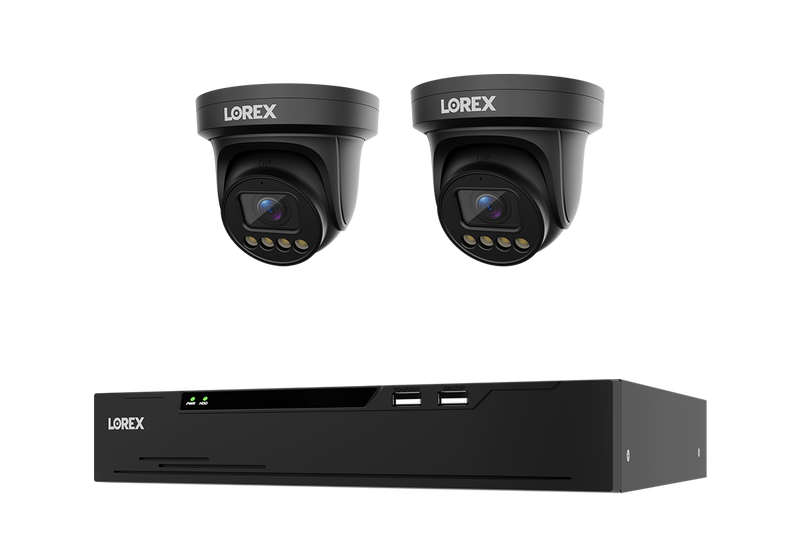

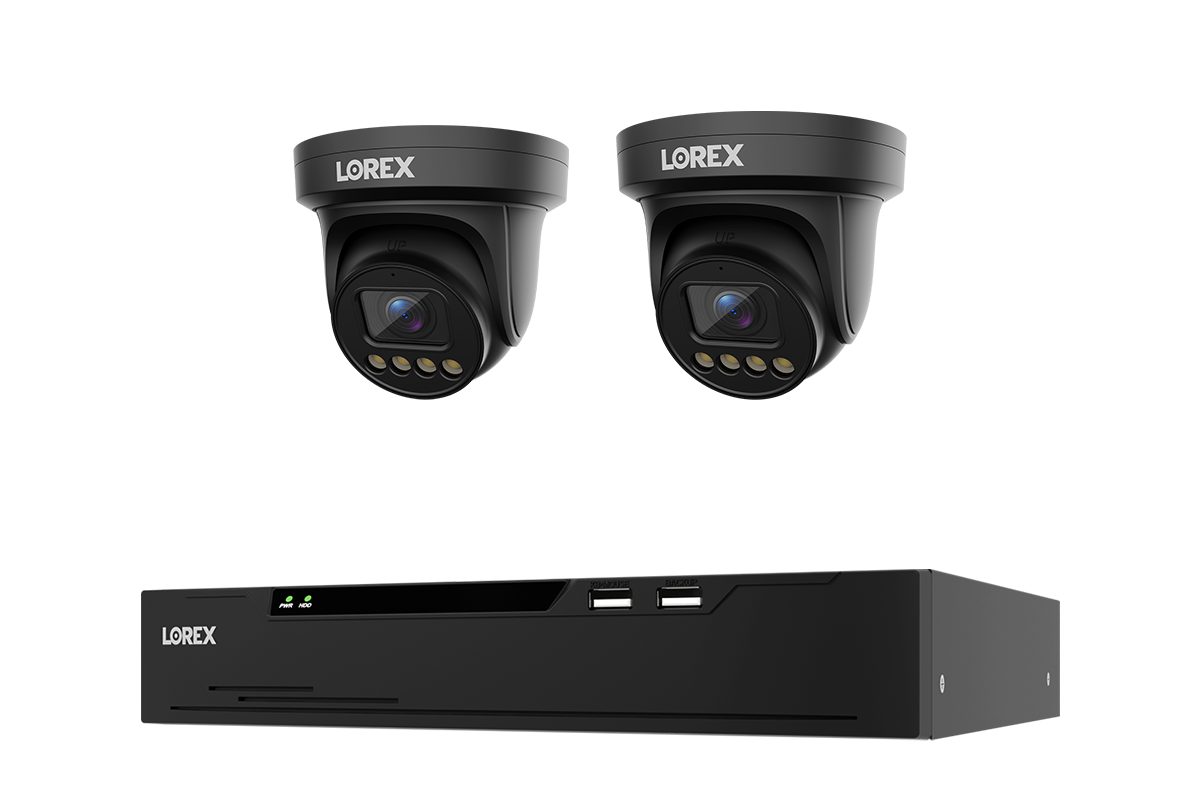

Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Turret Security Cameras - 2TB
Shape each camera view around the area that matters, with 4K detail, motorized varifocal lenses and continuous recording to a local 2 TB drive.
- 2 cameras · Black X3 turret cameras
- 8-channel NVR · Installed 2 TB HDD
AT A GLANCE
Product Overview
Choose 2, 4, 6 or 8 black or white X3 turret cameras around the same eight-channel recorder. Each configuration includes a 2 TB hard drive.
-
4K detail from one lens
Each X3 turret records 3840 × 2160 video at up to 25 fps, with a single 8 MP image sensor.
-
5× optical zoom
The 2.7–13.5 mm motorized varifocal lens adjusts framing. Pan, tilt and rotation are set manually at the mount.
-
2 TB installed locally
Continuous, motion and AI-event recording are stored on the recorder’s installed hard drive.
-
Eight PoE camera channels
Eight built-in PoE ports carry power and data. The recorder supports one SATA drive up to 12 TB.
-
Person and vehicle events
AI events can help surface relevant activity. Lighting, placement and configuration affect results.
-
Plan the cable routes
Camera Ethernet cables and a router are not included. Cameras are IP66-rated; the recorder belongs indoors.
Full product details
The Lorex Connect X Series 4K 8-Channel Wired NVR System combines one RNE01P-82B-AB1 network video recorder with a preinstalled 2TB hard drive and the selected quantity of X3 motorized-varifocal turret cameras. Choose black or white cameras in 2-, 4-, 6-, or 8-camera configurations. Black variants use camera model CNE01P-2TB-AB1; white variants use CNE01P-2TW-AB1.
- 4K camera detail: Each 8MP camera records up to 3840 × 2160 at 25 fps and uses a 2.7–13.5 mm motorized-varifocal lens with 5× optical zoom.
- Night and difficult-light imaging: Color Night Vision operates when adequate ambient light is available, while infrared night vision reaches up to 131 ft (40 m). The cameras support 120 dB wide dynamic range.
- Local recording and analytics: The eight-channel NVR provides eight PoE camera inputs and supports continuous, motion, and AI-event recording. Supported camera analytics include person and vehicle detection, Smart Motion, intrusion, loitering, line crossing, wrong-way travel, unauthorized parking, dual-tripwire, and people counting.
- Storage: A 2TB hard drive is preinstalled. The recorder has one SATA bay supporting a drive up to 12TB.
- Audio and deterrence: Each camera includes a microphone and an active-deterrence white light. Audio recording must be used in accordance with local privacy and consent requirements.
- Remote access: The system works with the Lorex Connect app. Remote features require high-speed internet and a wired connection between the NVR and a customer-supplied router.
- Installation: The cameras use wired PoE connections and are IP66 rated. Install them in a sheltered location and do not submerge them. The NVR is intended for indoor use.
The package includes one NVR with its installed 2TB drive, the selected camera quantity and color, one HDMI cable, the NVR power cable and adapter, one USB mouse, two NVR alarm I/O terminal block connectors, six HDD screws, four foam feet, camera mounting hardware, and weather-resistant RJ45 cable glands. Camera Ethernet cables and the router are not included.
WHY CHOOSE THIS SYSTEM
A considered view of the places that matter
The X3 turret’s adjustable field of view makes it useful when a doorway, vehicle approach or loading area needs deliberate framing. A wired path brings those separate camera views back to one local recorder.
Keep everyday recording at the property
The NVR’s installed 2 TB drive supports continuous recording from the wired cameras. Local recording can continue without internet; remote access needs a network connection.
Review activity with more useful event filters
Person and vehicle detection, intrusion and line-crossing events can help focus review on activity you care about. Sensible zones and careful placement remain part of the setup.
COVERAGE PLANNING
Different spaces call for different camera positions
These property scenes are illustrations for planning. Check sightlines, lighting and cable routes on your own site before choosing camera locations.

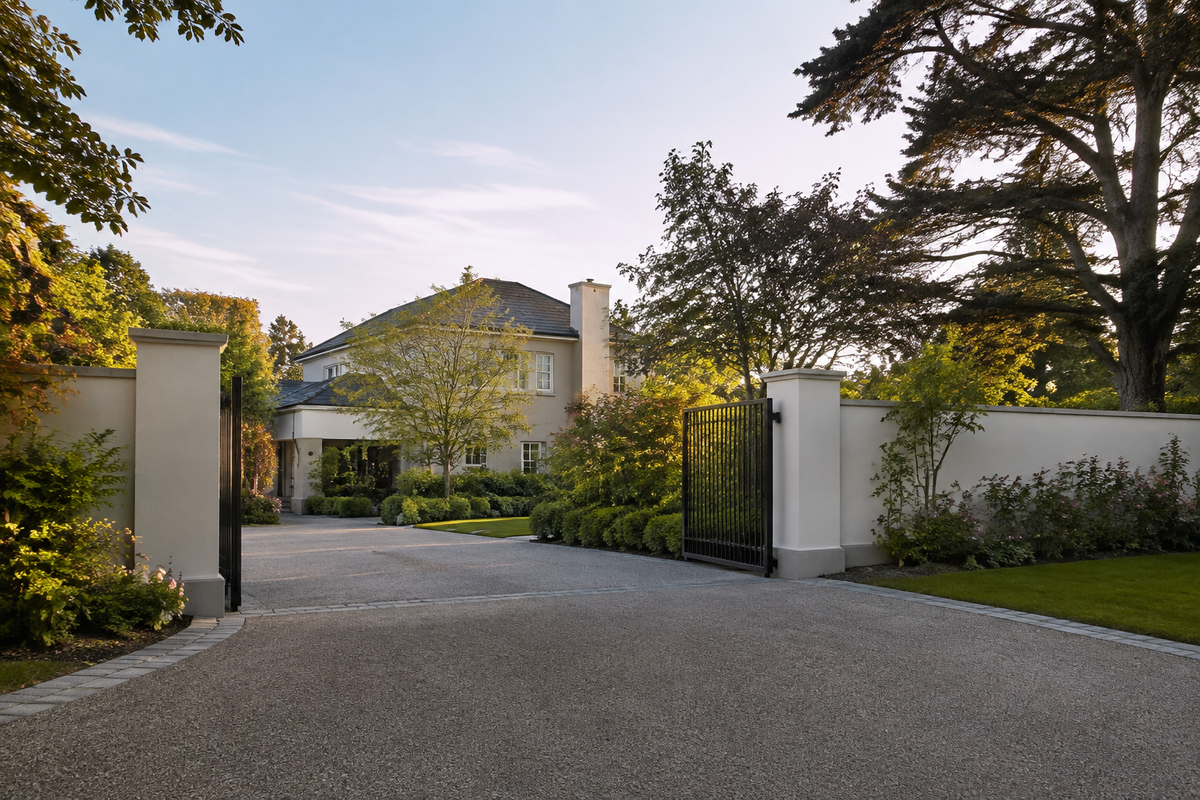

ARRIVALS
Entrances and vehicle approaches
A gate or approach often needs a defined view rather than the widest possible angle. Adjust framing for the arrival area, then check night lighting, nearby walls and the route back to the recorder.

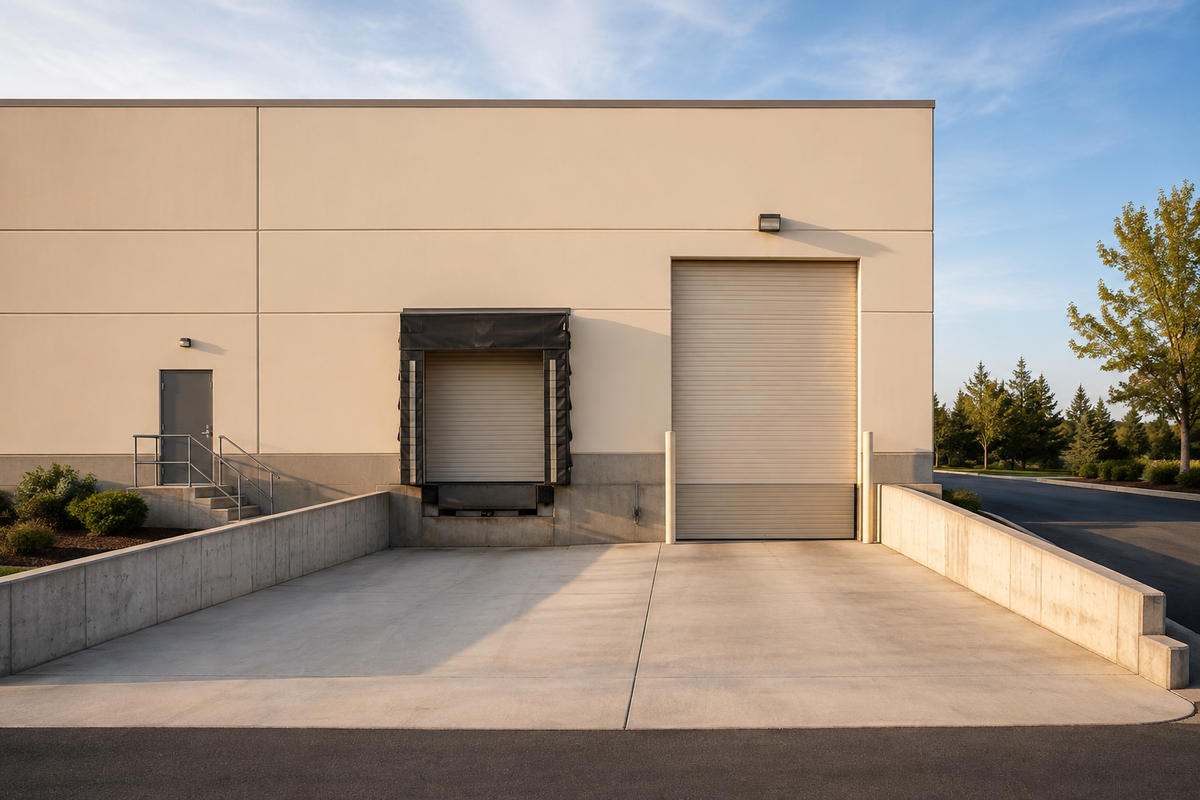

ACTIVITY TRANSITIONS
Loading bays and service doors
Separate pedestrian and loading activity may deserve separate camera positions. Person and vehicle events can support review; check moving obstructions, glare and protected cable entry points.

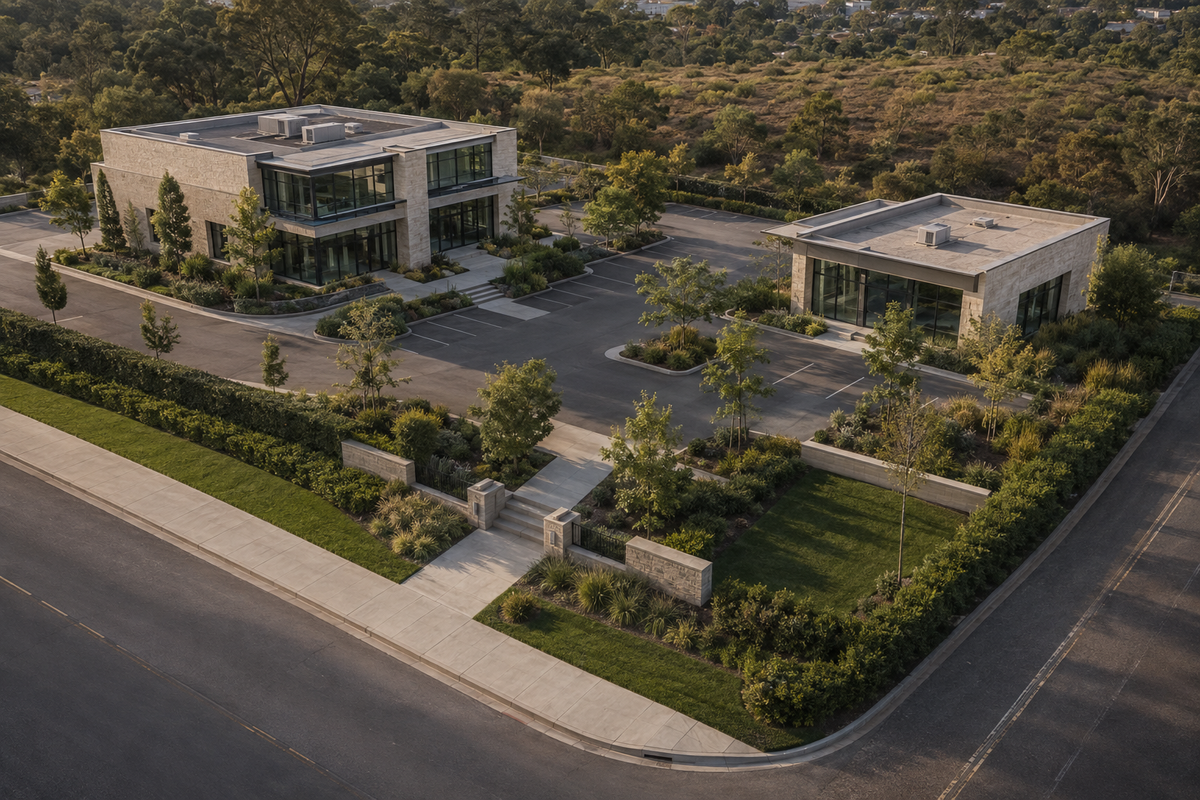

MULTIPLE ZONES
Parking edges and multiple buildings
Choose a camera count to match the zones you actually need to observe. Measure each full cable route and assess any between-building network work before committing to an eight-channel design.
HOW THE SYSTEM WORKS
A wired path from the scene to the recording
The included X3 cameras connect by Ethernet to the NVR’s PoE ports. The recorder stores video locally, while local displays and the Lorex Connect app offer different ways to view it.
- Turret cameras Your selected camera count observes the planned zones.
- Wired Ethernet Each camera cable carries power and data to a PoE port.
- Local 2 TB recorder The indoor NVR manages eight channels and stores recordings.
- Local or remote access Use HDMI/VGA locally, or Lorex Connect with internet access.
One lens. Deliberately adjustable framing.
The 2.7–13.5 mm lens provides 5× optical zoom. Aim the turret manually during installation, then adjust its field of view for the scene.
4K resolution, with the exact frame rate
The X3 turret records 3840 × 2160 at up to 25 fps. The 120 dB wide dynamic range helps balance difficult lighting; usable detail still depends on the scene and placement.
Optical zoom for purposeful framing
The 2.7–13.5 mm motorized varifocal lens offers 5× optical zoom. This adjusts the view; it does not provide motorized pan or tilt.
Events shaped around people and vehicles
Supported camera events include intrusion, loitering, wrong-way movement, unauthorized parking, line crossing and dual tripwire. Configure rules for the actual scene; detection is not a guarantee.
Color when the light supports it
Color Night Vision needs sufficient ambient light. Infrared supports black-and-white viewing up to 131 ft (40 m); range and image quality depend on conditions.
Listen-in audio and a warning light
A built-in microphone supports audio recording and is off by default. A white deterrence light is available.
Outdoor-rated cameras, indoor recorder
The aluminum turret is IP66-rated and specified from −22°F to 140°F (−30°C to 60°C). Protect cable connections and plan a suitable indoor location for the NVR.
Optional camera storage has a separate role
Each camera supports a microSD card up to 1 TB. That camera-side storage is accessed through the camera web interface and is not uploaded to the NVR, cloud or app.
Compatibility needs an exact-device check
ONVIF and RTSP support network integration, but they do not promise every feature on every device. Confirm the exact cameras, recorder and required features before adding third-party equipment.
INSTALLATION & COVERAGE
Give each camera a job before running the cable
Good planning starts with what you need to see and where the cable can safely go. The following guidance helps organize the installation; it does not replace a site-specific assessment.
ILLUSTRATIVE ROUTE PLAN
Separate zones, one indoor recording point
This four-zone example shows the planning principle. Select 2, 4, 6 or 8 cameras for your own site and measure each complete Ethernet route. Camera Ethernet cables and a router are not included.
- Example zone 1
- Example zone 2
- Example zone 3
- Example zone 4
Indoor recorder locationPower · LAN · ventilation
-
DEFINE THE VIEW
List the zones you need to observe
Start with entrances, pedestrian routes, loading areas or parking edges. Account for obstructions and the activity distance before choosing the number of cameras.
-
PLAN THE CABLE
Measure the full Ethernet route
Include changes in level, cable protection and entry points. Supply suitable camera Ethernet cables separately and have longer or complex routes assessed for the installation.
-
SET THE FRAMING
Aim the turret and adjust the lens
The mount supports manual pan, tilt and rotation. Set the viewing direction, adjust the motorized varifocal lens and check the scene in daylight and at night.
-
PROTECT THE RECORDER
Choose a suitable indoor location
Allow airflow and access to the NVR’s power, network and display connections. Its operating range is 14°F to 122°F (−10°C to 50°C).
-
CHOOSE HOW TO VIEW
Separate local recording from remote access
HDMI supports a local 4K display output and VGA supports 1080p. Remote Lorex Connect access needs a router and internet service.
-
CHECK EXPANSION
Work within eight channels and the power budget
The recorder has eight PoE ports and a 100 W total PoE budget. Verify the exact device and power requirements before adding cameras, switching or other infrastructure.
BUYING GUIDANCE
Check the fit before choosing the camera count
A wired system makes the most sense when the cable routes, recorder location and viewing priorities work together.
You can route cable to each camera
The cameras rely on wired PoE for their normal NVR connection. Plan cable access before selecting mounting positions.
You want recording stored on site
The included hard drive supports local recording, with capacity choices based on how you intend to record.
Adjustable framing matters
A motorized varifocal lens can suit a defined doorway or vehicle area where fixed framing is less convenient.
Your plan fits within eight channels
Choose 2, 4, 6 or 8 cameras now, allowing for any future zones within the recorder’s supported capacity.
You require specific movement or audio features
Aim the cameras manually, adjust framing with motorized optical zoom and use the built-in microphone for audio recording where permitted.
The site spans difficult cable routes
Separate buildings and long or exposed routes may require a professionally designed network and appropriate protection.
You need a guaranteed recording duration
No fixed retention period is promised. Camera count, quality, frame rate, compression and recording schedule all affect storage.
Third-party equipment is essential
Verify model-level compatibility and the functions you need. Protocol support alone is not a universal compatibility guarantee.
SPECIFICATIONS
The technical details, by component
Camera specifications apply to CNE01P-2TB-AB1 in black and CNE01P-2TW-AB1 in white. Recorder specifications apply to RNE01P-82B-AB1.
Camera · imaging
- Sensor / resolution
- 8 MP, 1/2.7-inch CMOS · 3840 × 2160
- Maximum frame rate
- 25 fps at 4K
- Lens / optical zoom
- 2.7–13.5 mm, F1.6 motorized varifocal · 5× optical
- Field of view
- Horizontal 102.5°–33° · vertical 54°–18° · diagonal 106.7°–37.2°
- Dynamic range / SNR
- 120 dB WDR · 55 dB signal-to-noise ratio
- Compression
- Nano-enhanced H.265, H.265, H.264, MJPEG · three streams
Camera · low light and events
- Infrared range
- Up to 131 ft (40 m), subject to conditions
- Color Night Vision
- Requires sufficient ambient light; infrared provides black-and-white viewing
- Minimum illumination
- 0.01 lux in color; 0 lux with infrared
- Detection
- Person / vehicle; intrusion, loitering, wrong-way movement and unauthorized parking
- Additional event rules
- Line crossing, dual tripwire and people counting
- Audio / deterrence
- Built-in microphone, off by default; white deterrence light
Camera · connection and storage
- Network interface
- RJ45 10/100 Mbps
- Protocols
- ONVIF and RTSP support; verify exact-device compatibility
- Alarm interface
- One alarm input and one alarm output
- Power
- 12 V DC or IEEE 802.3af PoE
- Maximum consumption
- 9.6 W on 12 V DC; 12 W on PoE
- microSD
- Up to 1 TB; camera web-interface access, independent of NVR/app storage
Camera · construction and placement
- Camera models
- Black CNE01P-2TB-AB1 / white CNE01P-2TW-AB1
- Housing / ingress rating
- Aluminum · IP66; not submersible
- Operating temperature
- −22°F to 140°F (−30°C to 60°C)
- Operating humidity
- Up to 90% relative humidity
- Dimensions / weight
- 5.51 × 4.69 in (140 × 119.2 mm) · 1.98 lb (0.9 kg)
- Mount adjustment
- Manual pan 360°, tilt 90° and rotation 360°
NVR · recording and storage
- Model / channels
- RNE01P-82B-AB1 · eight channels
- Installed drive
- 2 TB hard drive
- Drive capacity
- One SATA bay; up to 12 TB supported
- Recording modes
- Continuous, motion and AI-event recording per channel
- Playback / backup
- 1 / 4 / 8-channel playback · USB / network backup and ANR support
- Supported input resolutions
- 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p
NVR · ports and power
- PoE connections
- Eight built-in PoE ports · 100 W total PoE budget
- LAN interface
- One Gigabit Ethernet port
- Display outputs
- HDMI up to 4K; VGA up to 1080p
- USB connections
- Two front USB ports and one rear USB port
- Alarm / audio connections
- Eight alarm inputs / one output; one audio input / one output
- Power
- 54 V DC, 2.5 A supply · recorder consumption under 15 W excluding HDD
NVR · environment and access
- Placement / operating range
- Indoor · 14°F to 122°F (−10°C to 50°C)
- Dimensions
- 10.04 × 9.25 × 1.78 in (255 × 235 × 45.2 mm)
- Weight
- 2.2 lb (1 kg), excluding hard drive
- Mobile app
- Lorex Connect for iOS and Android
- Remote viewing
- Wired router connection and internet; recommended 4K upload: at least 6 Mbps per channel and 24 Mbps for the system
- Compatibility
- ONVIF profiles S/T/G/M, RTSP and DDNS; exact-device and feature verification required
WHAT ARRIVES
What’s included
The camera quantity and color follow your selected configuration. The recorder and installed 2 TB drive are the same across all eight options.

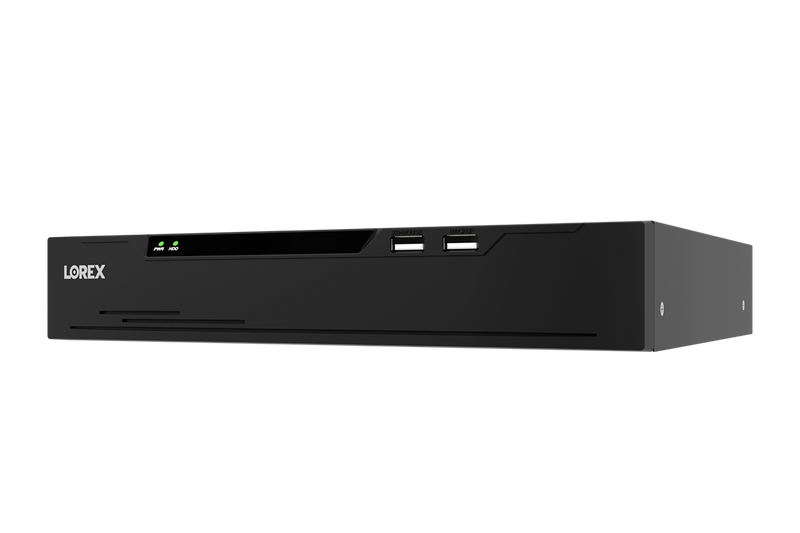

8-channel NVR with installed 2 TB HDD
One RNE01P-82B-AB1 recorder with the hard drive preinstalled.

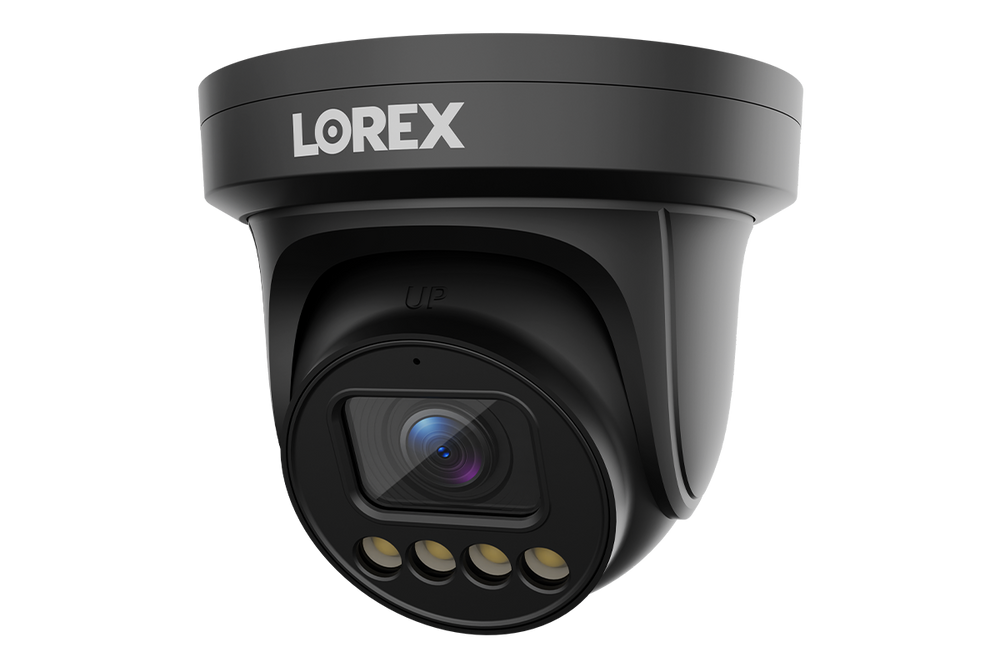

X3 motorized varifocal turret cameras
Black CNE01P-2TB-AB1 or white CNE01P-2TW-AB1 cameras, according to the selected option.
Recorder connection accessories
One HDMI cable, recorder power cable and adapter, one mouse, two alarm terminal connectors, six HDD screws and four foam feet.
Camera mounting and connection accessories
Camera mounting hardware and weather-resistant RJ45 cable glands are included.
PLAN SEPARATELY
What is not included — and what to consider
Camera Ethernet cables and a router are not included. The other items below are optional planning considerations, with suitability checked for your installation.
Camera Ethernet cables
Not included. Supply suitable cable for each planned route, including protection and termination appropriate to the installation.
Router and internet access
A router is not included. Router and internet service are required for remote access; local recording does not need internet.
Local display
Consider a compatible HDMI or VGA display if you want to view the recorder locally.
Storage choices
Consider a compatible larger NVR drive, or optional camera microSD storage, only where the recording plan benefits from it.
Site infrastructure and installation
Complex routes may call for appropriate switching, cable protection or professional installation. Check the design and exact device requirements first.
Additional cameras and integrations
Verify model compatibility, available channels, power budget and feature support before expanding or integrating equipment.
BUYER FAQ
Questions to settle before installation
Practical answers about the package, camera behavior, recording and the infrastructure to plan around it.
How do the eight configurations differ?
Choose black or white cameras, with 2, 4, 6 or 8 cameras. All configurations use the same eight-channel NVR with a 2 TB hard drive installed. The selected SKU, image and price update in the purchase area.
Are these cameras wireless?
No. The X3 turret cameras use Ethernet for their normal PoE power and data connection to the recorder. Supply suitable camera Ethernet cables separately.
Does motorized varifocal mean pan-tilt-zoom?
The 2.7–13.5 mm lens provides motorized adjustment with 5× optical zoom. Pan, tilt and rotation are adjusted manually at the mount.
What is the exact 4K frame rate?
These exact X3 turret cameras record 3840 × 2160 at up to 25 fps. A generic recorder resolution claim does not change the camera’s own frame-rate specification.
What can the AI event rules help with?
Supported camera rules include person and vehicle detection, intrusion, loitering, wrong-way movement, unauthorized parking, line crossing, dual tripwire and people counting. Results depend on placement, lighting, configuration and scene conditions.
Is night video always in color?
No. Color Night Vision needs enough ambient light. Infrared provides black-and-white viewing in darkness, with a stated range up to 131 ft (40 m), subject to conditions.
Which audio and deterrence features are included?
The cameras have a built-in microphone, which is off by default, and a white deterrence light. Confirm any additional audio requirement for the exact model before ordering.
Where is video recorded?
The NVR includes a 2 TB hard drive for local continuous, motion or AI-event recording. The recorder supports one SATA drive up to 12 TB; the maximum supported capacity is not the supplied capacity.
How many days of video will the drive hold?
There is no fixed retention period for every setup. Camera count, resolution, frame rate, compression, activity and recording schedule affect how much video fits on the drive.
Does local recording need internet?
No. Local recording works without internet or a paid recording subscription. Remote Lorex Connect viewing requires a networked recorder, router, internet service and an account. For 4K viewing, Lorex recommends at least 6 Mbps upload per channel and 24 Mbps for the system. Optional cloud services, where compatible and available, may have separate fees and terms.
How many cameras can the recorder support?
The recorder supports eight channels and has eight built-in PoE ports with a 100 W total PoE budget. Check channel availability, exact camera compatibility and power requirements before expanding.
What does an optional microSD card do?
Each camera supports microSD storage up to 1 TB. This is independent camera-side storage, accessed through the camera web interface; it is not uploaded into the NVR, cloud or app.
Which parts can be installed outdoors?
The aluminum cameras are IP66-rated and specified from −22°F to 140°F (−30°C to 60°C). Protect their cable connections. The NVR is indoor equipment, specified from 14°F to 122°F (−10°C to 50°C).
What is included with the recorder?
One NVR with installed 2 TB drive, one HDMI cable, power cable and adapter, one mouse, two alarm terminal connectors, six HDD screws and four foam feet. The selected camera count, camera mounting accessories and RJ45 glands accompany the system.
What do I need to plan separately?
Camera Ethernet cables and a router are not included. Depending on your site, consider a local display, storage options, cable protection, suitable network infrastructure or professional installation.
Will ONVIF or RTSP make every device compatible?
No. These protocols support integration, but exact device compatibility and individual functions must be checked. Do not assume universal camera, recorder, app or analytics support.
Which app and local viewing connections are supported?
Lorex Connect is available for iOS and Android. The recorder also supports local HDMI output up to 4K and VGA up to 1080p. Choose the viewing path and necessary equipment for your setup.
Can I start with fewer cameras and expand later?
You can choose a smaller initial camera count while keeping the eight-channel NVR. Later additions must be compatible and stay within channel and power limits; plan cable routes and storage capacity in advance.
How are warranty and returns handled?
The ClearVero product warranty term appears beside the purchase controls. Read the linked warranty policy for coverage and exclusions; the 30-Day Money-Back Guarantee has separate return terms.
How are shipping cost and timing confirmed?
Review ClearVero’s shipping terms and destination-specific checkout options for delivery estimates and any applicable charges.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE
Lorex 100ft Cat5e Ethernet Extension Cable (CBL100C5)
$49.99 USD
Required to connect each PoE camera when no suitable cable is already installed.
Useful when: Required to connect each PoE camera when no suitable cable is already installed.
Not needed when: A compliant, tested Ethernet run of adequate length already exists.
Compatibility: Use CBL100C5 for an indoor IP-camera route of suitable length. Choose cable rated for outdoor, riser or plenum routes when required.
Sold separately.
Available
RECOMMENDED

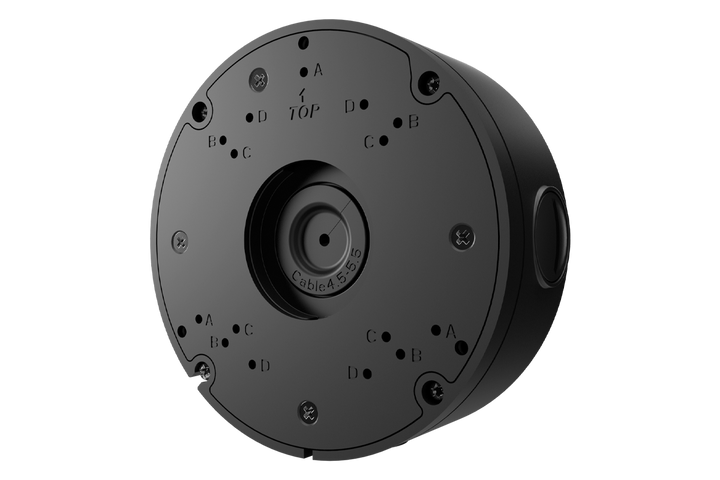

Lorex Round Junction Box for MVF and Dual-Lens Cameras (JB302P)
$49.99 USD
Protects cable connections and provides a clean compatible mount.
Useful when: Protects cable connections and provides a clean compatible mount.
Not needed when: Existing surface and protected termination do not require a junction box.
Compatibility: Choose the JB302 version that matches the X3 turret camera model and color.
Sold separately.
Available
YOUR SELECTED CONFIGURATION
Build a wired view of your property
Choose the camera count and color that fit your plan, then confirm cable routes, recorder placement and viewing needs before installation.
- X3 cameras with 5× optical zoom
- Eight-channel PoE recording
- Installed 2 TB hard drive
Black / 2 cameras
SKU CNX3-TB2-8CH2T
$1,179.99 USD
Uses your selected configuration and quantity from the purchase area.
