Dedicated viewpoints
Place a fixed-view camera where an entrance, access route or work area matters most. Aim the housing during installation to establish the view.
LOREX CONNECT X SERIES

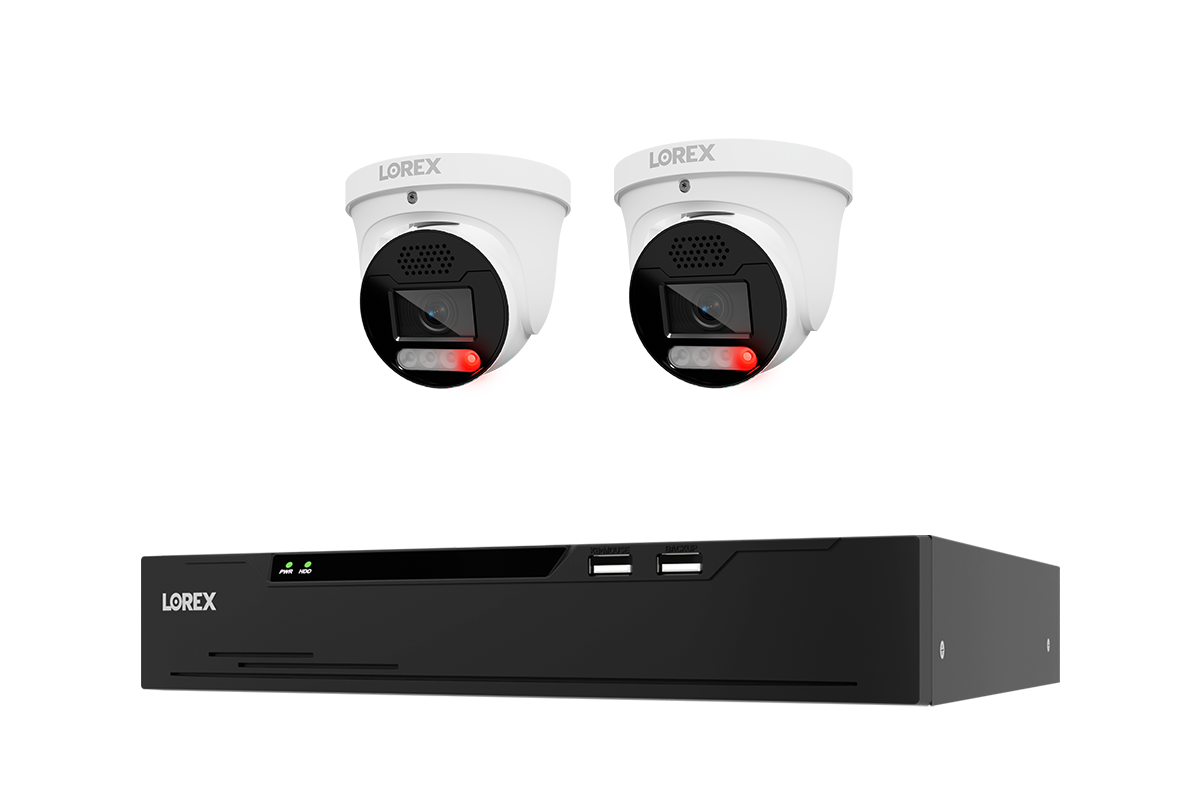

Lorex Connect X Series 4K 8-Channel NVR System with X5 Turret Cameras — 2TB
Choose your camera count. Keep recording local.
- X5 turret cameras in your selected color
- Eight-channel XC NVR · 2TB installed
AT A GLANCE
Product Overview
A wired security system with X5 turret cameras in your selected color, an eight-channel XC recorder and 2 TB of local storage.
-
Choose 2, 4, 6 or 8 cameras
Choose white or black X5 turret cameras.
-
4K at up to 30fps
Fixed-lens views for planned camera positions.
-
Local continuous recording
A preinstalled 2TB hard drive in the recorder.
-
Eight PoE camera channels
Power and video share each camera’s Ethernet cable.
-
Person and vehicle detection
Two-way talk, warning lights and a siren.
-
Plan the cable runs
Camera Ethernet cables are sold separately.
Full product details
The Lorex Connect X Series wired security system combines X5 4K PoE turret cameras with an XC eight-channel network video recorder and a preinstalled 2TB hard drive. Choose 2, 4, 6 or 8 cameras in white or black. Each configuration includes one RNE01P-82B-AB1 recorder and the selected number of X5 turret cameras in the chosen color.
The fixed-lens cameras support 4K recording at up to 30 frames per second, color night imaging, infrared night vision, person and vehicle detection, two-way talk, and light and siren deterrence. Color night performance depends on available light; infrared mode provides black-and-white imaging when needed. Camera positioning is adjusted during installation; these are not motorized pan-tilt-zoom cameras.
Ethernet carries camera power and video to the recorder through PoE. The recorder supports continuous local recording and eight camera channels. Its single SATA drive bay supports replacing the installed drive with a compatible drive up to 12TB. Camera Ethernet cables are sold separately. The cameras are IP66-rated; a sheltered mounting location is recommended. Remote viewing and alerts use Lorex Connect and require a wired NVR-to-router connection and suitable internet access. Additional camera or third-party integrations require model-specific compatibility verification.
WHY CHOOSE THIS SYSTEM
Build around the views you need
Choose camera positions first, then match the configuration to the places you want to observe.
One place to review recordings
Bring the camera feeds into the XC recorder for local playback and event searches.
Camera count is a separate choice
Every configuration uses the same eight-channel recorder. Choose fewer cameras for your initial positions or eight cameras to use all eight channels.
PLACES TO PLAN FOR
Give each camera a clear purpose
These are placement ideas. The right layout depends on sightlines, mounting positions and lighting at your property.
Planning illustration · not to scale
- Main entrance
- Side access
HOME
Entrances and approaches
Consider the front entrance, driveway approach and side access as separate viewpoints. Check the angle and backlighting at each location before deciding how many cameras you need.
Planning illustration · not to scale
- Customer entrance
- Delivery door
BUSINESS
Doorways and stock areas
Plan views of customer entrances, delivery doors or stock areas. Position cameras around the activity you want to review while considering privacy and access to cabling.
HOW IT CONNECTS
From the camera to your recordings
The standard setup connects the cameras directly to the recorder’s built-in PoE ports. Remote viewing adds a separate connection to your network.
- X5 turret cameras Capture each planned viewpoint.
- Ethernet runs Carry camera power and video.
- Local recorder Save video to the installed hard drive.
- Your local display Connect a compatible HDMI or VGA display.
A fixed view, set during installation
Aim the turret housing at installation. The lens stays fixed during use; two-way talk and deterrence controls work from this same camera.
Night viewing adapts to the light
Color Night IQ+ uses available ambient light for color images. When conditions require it, the camera can switch to infrared black-and-white viewing. Lighting and placement affect the detail you can see.
Set alerts around relevant activity
Person and vehicle detection can help focus event review. Compatible settings also include intrusion, loitering and line-crossing rules; configure them for the camera position and activity you want to monitor.
Choose how to respond
Use the built-in microphone and speaker for two-way talk. Warning lights, a siren and prerecorded messages provide additional response options, with event actions configured through compatible recorder settings.
INSTALLATION & BUYING GUIDANCE
Plan the positions before the purchase
A little planning helps you choose the camera count and prepare a practical wired installation.
PLAN THE WIRED CONNECTIONS
Trace each cable back to the recorder
Choose the camera positions first, then measure suitable Ethernet routes to a ventilated indoor recorder location. This connection sketch explains the planning sequence; it does not represent a property layout or guarantee coverage.
- Planned camera positions
- Measured Ethernet routes
Indoor recorder location
Power · LAN · ventilation
-
ClearVero planning guidance
Check the view at each position
Check entrances, obstructions and strong backlighting. These fixed-lens cameras are aimed during installation; they do not physically pan or follow a moving person.
-
Installation guidance
Route and protect the connections
Plan a suitable Ethernet run from each camera to the NVR. Camera cables are sold separately. Use the supplied weather-resistant cable gland and protect outdoor connections as directed in the camera guide.
-
Installation guidance
Choose mounting and recorder locations
The IP66-rated cameras are intended for indoor or outdoor use; sheltered positions are recommended. Keep the recorder indoors with ventilation and access to power and your viewing connections.
-
ClearVero planning guidance
Test before finalizing the installation
Check framing in daytime and darkness, confirm recording and playback, and adjust detection areas before finishing the installation.
CHOOSE YOUR CAMERA COUNT
Count viewpoints, not property size
List the places that need their own view, then check whether the proposed positions actually see them. These examples are planning suggestions, not coverage guarantees.
2 cameras
Start with two priority viewpoints, such as a main entrance and a separate access point.
4 cameras
Plan four distinct positions when several entrances or approaches each need their own view.
6 cameras
Choose six positions when the layout has more separate areas to observe; verify cable routes to every location.
8 cameras
Choose eight positions to use all eight recorder channels. This does not increase the recorder beyond eight channels.
TECHNICAL DETAILS
Specifications that help you plan
Choose white or black cameras and a count of 2, 4, 6 or 8. Every configuration includes the same eight-channel XC recorder and 2 TB of installed storage.

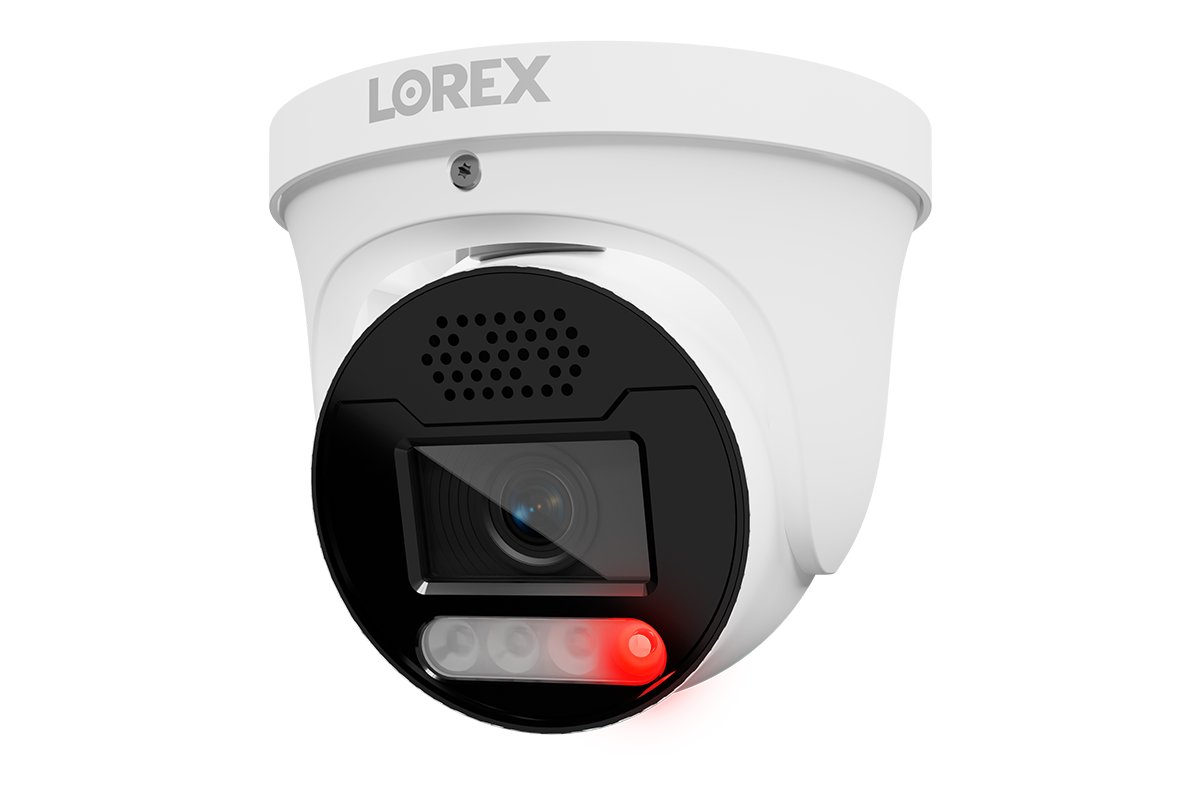

X5 camera · imaging
- Model
- X5 fixed-lens turret · selected color
- Sensor / resolution
- 8MP 1/1.8-inch CMOS · 3840 × 2160
- Frame rate
- Up to 30fps
- Lens
- Fixed 2.8mm · F1.0
- Field of view
- 109.4° horizontal · 59.5° vertical · 113.5° diagonal
- Wide dynamic range
- 120dB True WDR
X5 camera · installation
- Night vision
- Color Night IQ+ with ambient light; IR up to 98ft / 30m in total darkness under ideal conditions. Actual detail varies; not an identification-distance guarantee.
- Weather rating
- IP66 camera housing; sheltered installation recommended; not submersible.
- Operating temperature
- −22°F to 140°F / −30°C to 60°C
- Power
- PoE IEEE 802.3af or 12V DC
- Maximum consumption
- 10.5W with PoE / 8W with DC
- Network / audio
- RJ45 10/100 Base-T; built-in microphone and speaker
XC recorder · recording
- Model
- RNE01P-82B-AB1 · Black recorder
- Channels / camera ports
- 8 total channels · 8 built-in PoE ports
- Installed hard drive
- 2TB
- Storage limit
- One SATA bay; up to 12TB total by replacing the installed drive
- Recording modes
- Continuous, motion or AI motion per channel
- Playback / search
- 1, 4 or 8 synchronized channels; time/date, motion and person/vehicle event searches
XC recorder · connections & placement
- Displays
- HDMI up to 4K; VGA up to 1080p
- USB / network
- 3 × USB 2.0; RJ45 10/100/1000Mbps LAN
- Power / PoE budget
- 54V DC / 2.5A supply; 100W total PoE budget
- Dimensions
- 255 × 235 × 45.2mm / 10.04 × 9.25 × 1.78in (W × D × H)
- Operating temperature
- 14°F to 122°F / −10°C to 50°C; indoor recorder
- Compatibility
- ONVIF S/T/G/M and RTSP with compatible devices/profiles. Third-party advanced features may not work.
INCLUDED
Core system and supplied accessories
Every configuration includes one recorder with 2 TB storage, the selected camera count and color, and the accessories listed below.
XC eight-channel NVR with 2TB
RNE01P-82B-AB1 with the hard drive preinstalled.
X5 turret cameras in your selected color
Your selected configuration includes 2, 4, 6 or 8 X5 turret cameras in white or black.
Recorder power and controls
Power adapter and cable, HDMI cable and USB mouse.
Camera mounting and connection hardware
Mounting hardware and weather-resistant RJ45 cable glands for the camera connections.
PLAN SEPARATELY
Cabling, viewing and optional upgrades
Prepare the installation essentials and choose optional additions only when they fit your needs.
Camera Ethernet cables
Choose suitable cable runs for the camera positions and installation environment.
Local setup and viewing
Have a compatible HDMI or VGA display available. A 4K display is needed to view 4K output.
Remote-access network
Remote viewing requires a wired NVR-to-router connection and suitable internet service.
Larger internal hard drive
A compatible surveillance HDD can replace the installed drive, up to the recorder’s 12TB total limit. Specific add-on models require compatibility checking.
Independent camera-side recording
An optional microSD card up to 1TB records independently in the camera and is accessed through its web browser. It does not transfer recordings to the NVR, cloud or app.
BEFORE YOU DECIDE
Questions that affect your setup
A few practical boundaries to check before ordering.
Does local recording require internet?
The NVR records locally to its hard drive. Internet and a wired router connection are needed for remote viewing through Lorex Connect; local recording does not require a recording subscription.
What should I plan for the PoE installation?
Plan a suitable Ethernet cable run from each fixed camera position to the recorder. PoE carries camera power and video over that cable, and camera Ethernet cables are sold separately. Check mounting surfaces, weather protection and the indoor recorder location before ordering.
Will a camera turn to follow someone?
No. These X5 turret cameras have fixed lenses and manually adjustable housings. Detection features do not turn them into motorized pan-tilt-zoom cameras.
Will night recordings always be in color?
No. Color night imaging depends on available light. Infrared mode provides black-and-white images when needed; its rated reach is up to 98 ft (30 m) under suitable conditions, not a guarantee of identifying a person at that distance.
Can the cameras and recorder both go outdoors?
The cameras are IP66-rated for indoor or outdoor use, with sheltered mounting recommended. Protect outdoor cable connections as directed in the camera guide. The recorder belongs indoors in a ventilated location; an IP66 camera rating does not apply to the recorder.
Can I add different cameras later?
Check the exact camera model and required functions before adding it. The recorder has eight total channels; ONVIF or RTSP support does not guarantee that every third-party feature will work.
Is audio recording enabled automatically?
Audio recording is disabled by default. Review the audio settings and applicable requirements for your installation before enabling recording.
Where can I check the warranty and returns?
The Product Warranty shown on this page is provided by ClearVero under its warranty policy. Review the separate returns policy for applicable return terms.
Where can I check shipping details before ordering?
Review ClearVero’s Shipping Policy for current shipping terms, and contact ClearVero if you need help with a delivery question before purchase.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE
Lorex 100ft Cat5e Ethernet Extension Cable (CBL100C5)
$49.99 USD
Required to connect each PoE camera when no suitable cable is already installed.
Useful when: Required to connect each PoE camera when no suitable cable is already installed.
Not needed when: A compliant, tested Ethernet run of adequate length already exists.
Compatibility: Use CBL100C5 for an indoor IP-camera route of suitable length. Choose cable rated for outdoor, riser or plenum routes when required.
Sold separately.
Available
RECOMMENDED
Lorex Round Junction Box for Fixed-Lens Cameras (JB301P)
$49.99 USD
Protects connections and supports a cleaner fixed-camera installation.
Useful when: Protects connections and supports a cleaner fixed-camera installation.
Not needed when: Existing installation has a compatible protected junction or direct mount.
Compatibility: Select the JB301 version for the exact fixed-camera model and housing color.
Sold separately.
Available
READY TO CHOOSE?
Choose the camera count for your plan
Return to your selected configuration, or ask ClearVero for help checking the layout before you order.
- Confirm your camera positions
- Plan your Ethernet cable runs
- Check your viewing and network setup
SKU CNX5-TW2-8CH2T
$1,059.99 USD
Uses your selected configuration and quantity.
