More context in one frame
A 190.8° horizontal view can help you follow activity across a wide scene. Confirm detail at the distances that matter.
LOREX CONNECT X SERIES

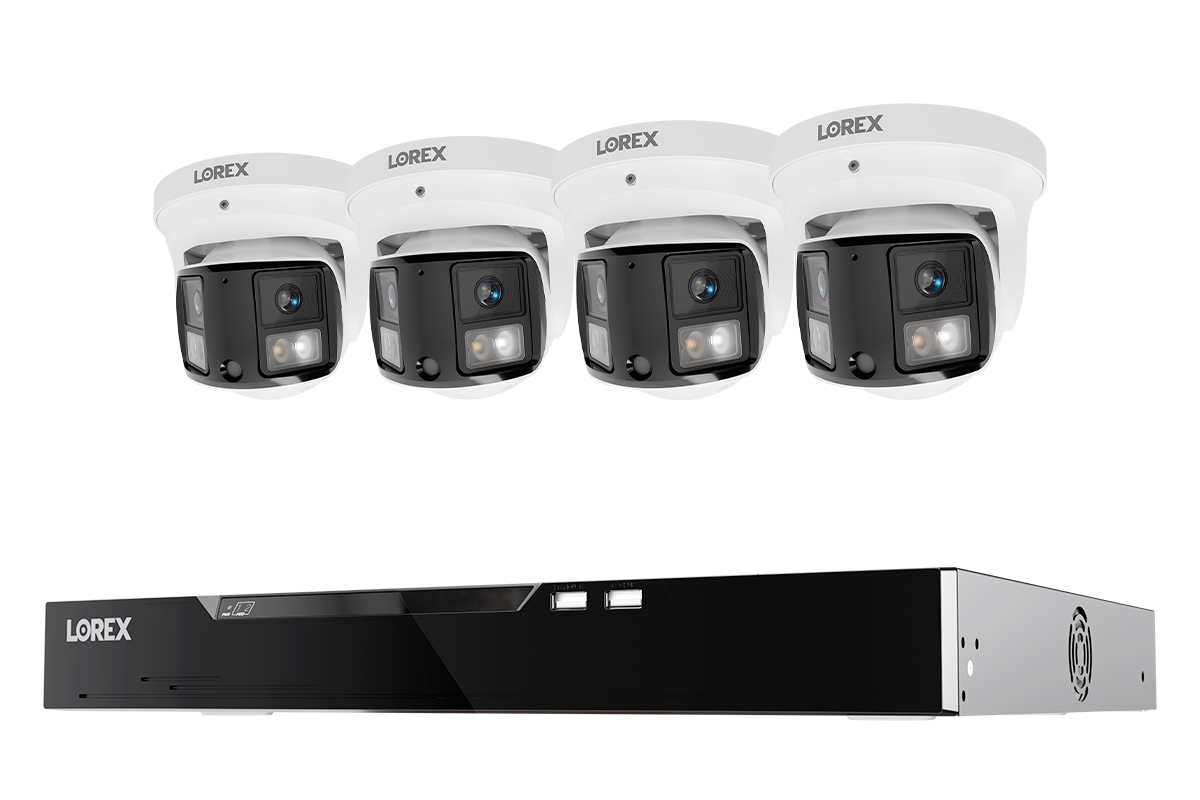

Lorex Connect X Series 4K 16-Channel Wired NVR System with X3 Dual-Lens Turret Camera - 4TB
Panoramic PoE coverage, local recording, and active deterrence.
- 16-channel XC recorder · 4TB installed
- Choose your camera count below
AT A GLANCE
Product Overview
A wired system pairing X3 dual-lens cameras with a 16-channel recorder and 4TB of installed local storage.
-
190.8° panoramic view
Dual fixed lenses capture up to 8MP at 30 fps.
-
4TB local storage
Two SATA bays support up to 24TB per drive.
-
Person and vehicle detection
Additional supported analytics include intrusion, loitering and people counting.
-
Two-way audio
A built-in microphone and speaker support two-way talk.
-
Active deterrence
Deterrence options include white and red/blue lighting, a siren and recorded messages.
-
Wired PoE installation
Camera Ethernet cables are sold separately; remote viewing needs internet.
Full product details
The Lorex Connect X Series wired security system pairs an XC 16-channel network video recorder with 4TB of installed storage and a choice of 4, 8, 12, or 16 white X3 dual-lens turret cameras. Each CNU01P-1SW-AB1 camera captures up to 8MP video at 30 frames per second with a 190.8° horizontal field of view, two-way audio, person and vehicle detection, and active deterrence lighting and sound. The IP66-rated cameras support color night vision when ambient light is sufficient and infrared night vision in darker conditions. The recorder supports continuous recording, smart search, and the Lorex Connect app. The recorder provides 16 built-in PoE ports. Internal storage can be expanded to two drives of up to 24TB each. Camera Ethernet cables are sold separately. Remote viewing requires high-speed internet and a wired connection from the recorder to a router; the router is not included. Recording duration depends on the recording settings and scene activity. ONVIF feature compatibility varies by connected device.
PANORAMIC CONTEXT
See activity across a wider view
Dual lenses combine a wide horizontal view with local recording. The right camera position still matters: obstacles, lighting and distance affect what can be seen.
Review recorded events
Smart search and supported detection categories help locate recorded activity. Configure detection zones for the scene.
Respond with sound and light
Two-way talk and deterrence options provide ways to respond to activity. Use audio in accordance with local requirements.
Keep recording local
Installed hard-drive storage supports continuous recording. Retention depends on settings, camera count and scene activity.
PLAN BY LOCATION
Build coverage around your property
These are planning examples, not a guarantee of detection or identification at a particular distance.

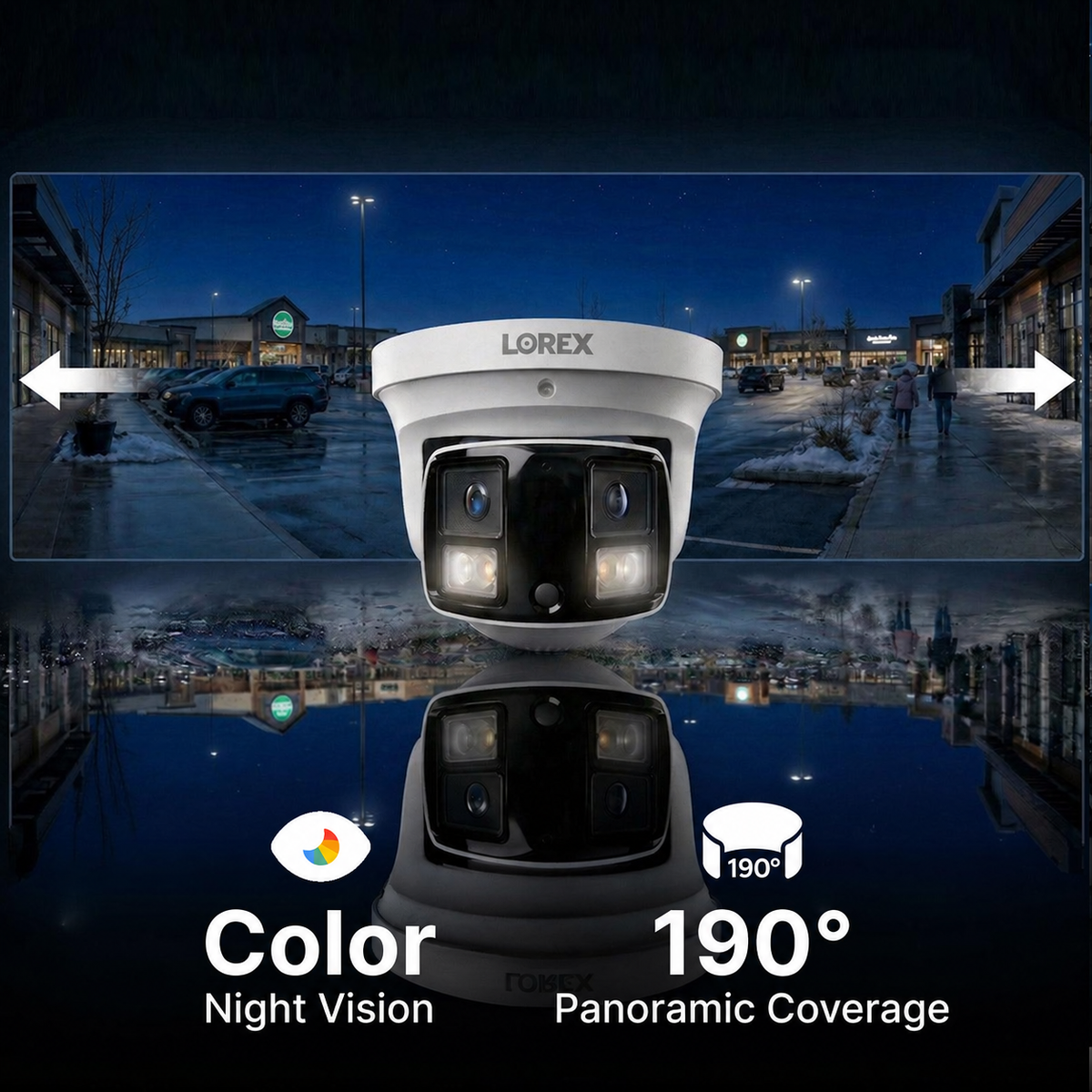

Entrances
Observe approach areas
Check the approach angle and lighting. A panoramic view adds context, but important faces may need a closer camera position.

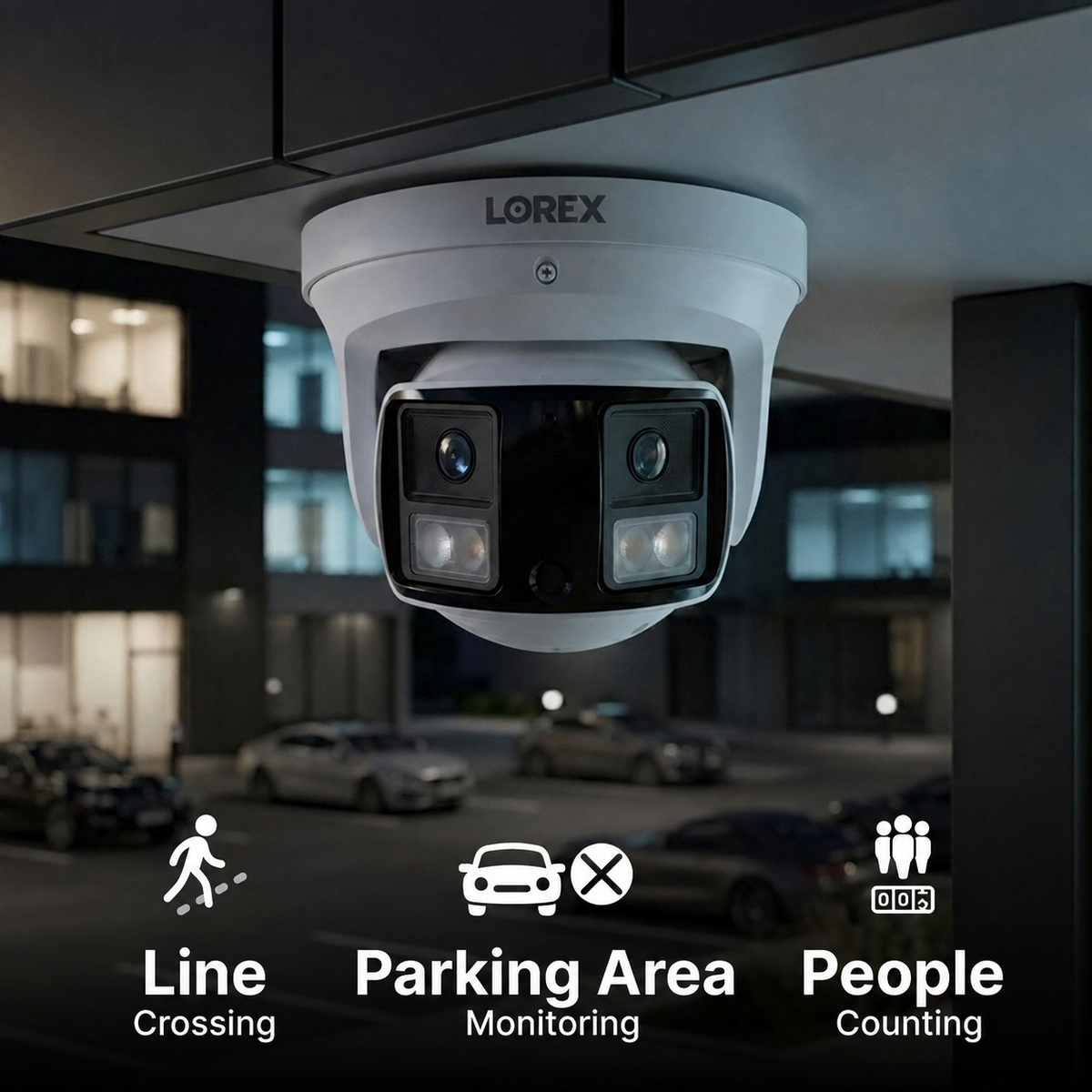

Parking areas
Plan vehicle views
Vehicle detection and unauthorized-parking analytics support configured monitoring. Test zones against traffic and obstructions.
Work areas
Follow movement across open spaces
People counting and intrusion analytics can support a configured scene. Test performance before relying on a placement.
HOW IT CONNECTS
Cameras, recorder, and remote access
Ethernet carries camera power and video through PoE. Local recording takes place on the recorder.
- X3 cameras Fixed dual-lens PoE turret cameras
- XC recorder 16 onboard PoE ports
- Wired router connection Internet and router required for remote viewing
- Lorex Connect Remote access from the iOS or Android app

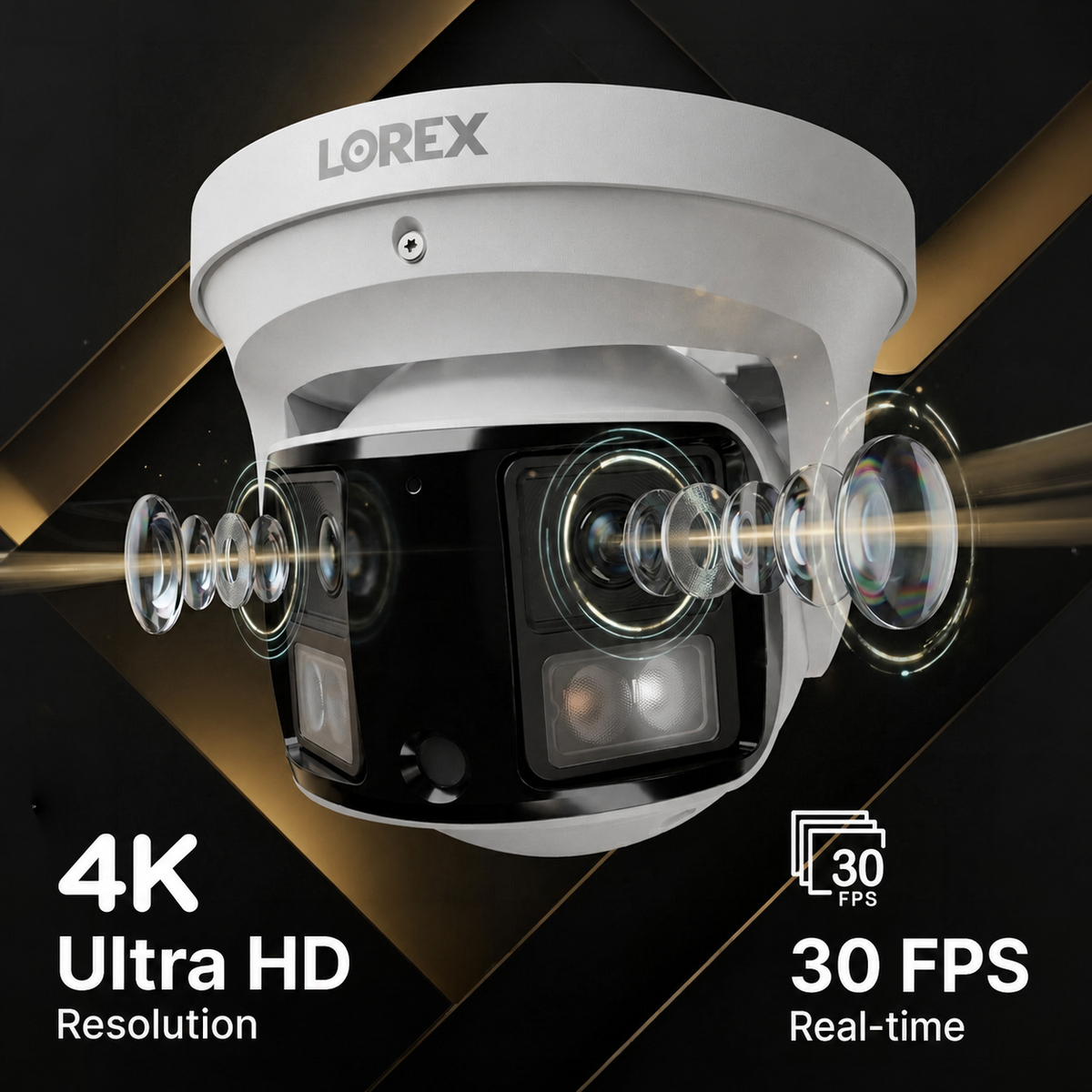

Dual fixed-lens imaging
Illustration of the X3 camera optics. Video capture supports up to 8MP at 30 fps; the camera has fixed lenses rather than motorized optical zoom.
Wide, detailed video
Up to 4224 × 1848 video at 30 fps through dual fixed 2.4 mm lenses.
Handle mixed lighting
120 dB True WDR helps balance bright and dark parts of a scene.
Adapt after dark
Color night vision needs sufficient ambient light. Infrared operation supports darker scenes, up to 30 m in total darkness under stated conditions.
Outdoor camera protection
The camera is IP66 rated and operates from -40°C to 60°C. Do not submerge it; a sheltered location is recommended.

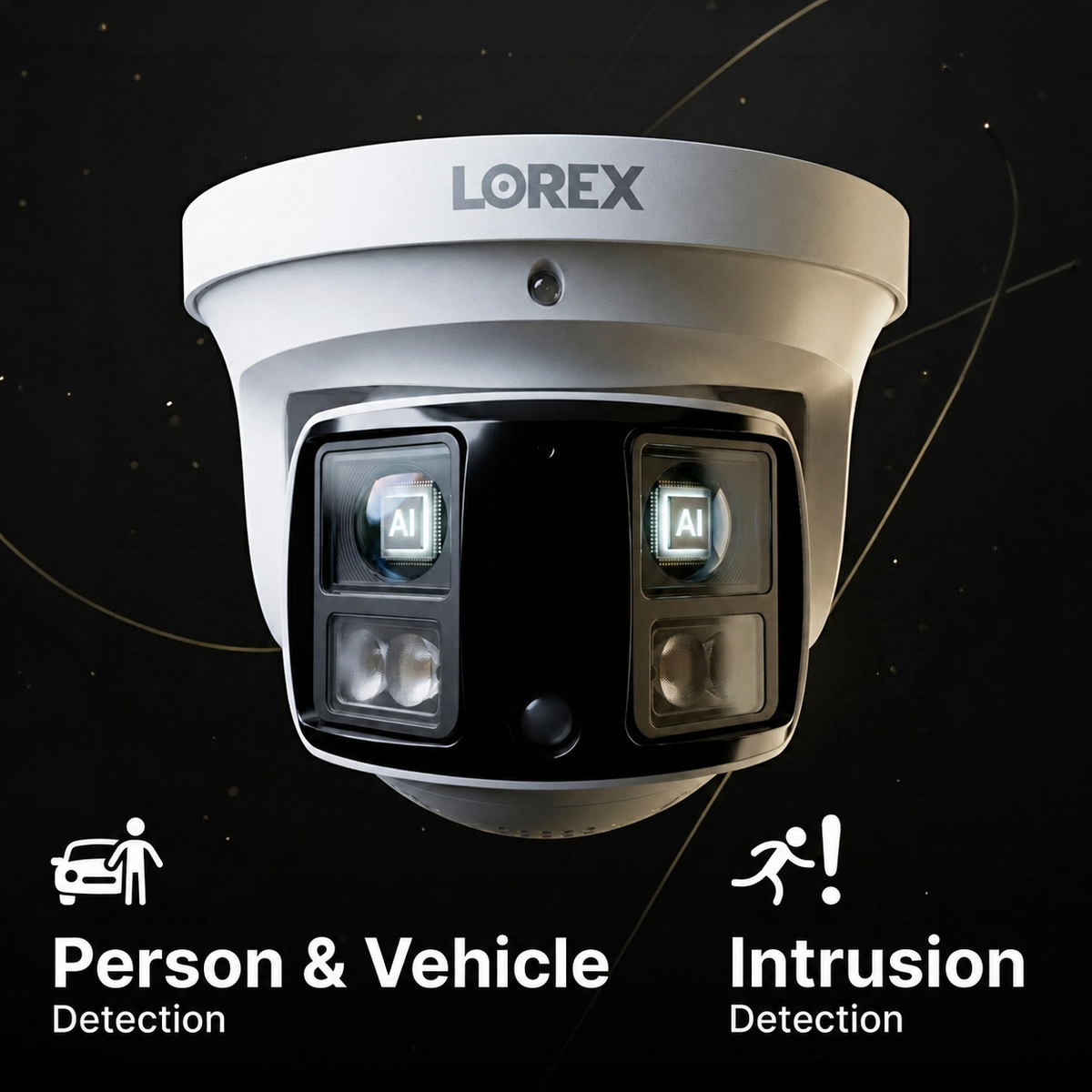

Configure event detection
Supported camera analytics include person, vehicle, intrusion, loitering, wrong-way, unauthorized parking and people counting.
Check integration by model
The recorder supports ONVIF S/T/G/M and RTSP. Third-party compatibility and advanced features vary by device.
BEFORE INSTALLATION
Plan views, power and cable routes
This is a wired system. Select camera positions and measure Ethernet routes before installation.
RECORDER CONNECTIONS

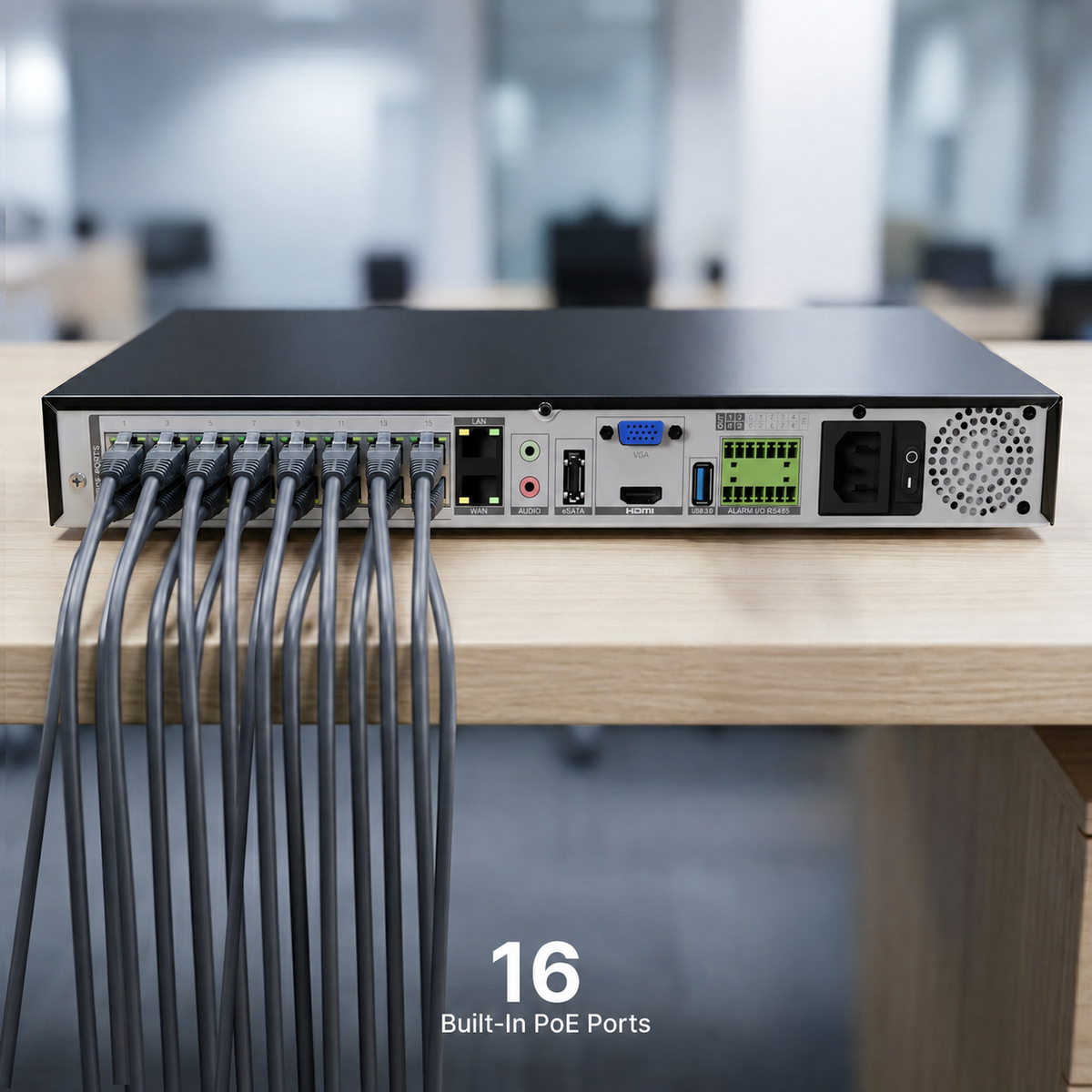

16 built-in PoE ports
Recorder connection illustration. Camera Ethernet cables are shown for installation context and are sold separately. Plan routes from your camera positions to the recorder.
-
Planning guidance
Map camera positions
Check the field of view at the intended mounting location; avoid assuming full coverage from camera count alone.
-
Product requirement
Measure Ethernet routes
Camera Ethernet cables are sold separately on this exact bundle. Plan suitable cable runs for every camera.
-
Product requirement
Locate recorder and power
Keep the recorder within its -10°C to 50°C operating range. The camera IP66 rating does not apply to the recorder.
-
Product requirement
Set up remote access
Remote viewing requires a wired router connection and high-speed internet. Lorex recommends at least 6 Mbps upload for reasonable performance.
-
Planning guidance
Test before final mounting
Confirm image detail, recording, detection zones and lighting for every camera location.
Audio recording is disabled by default. Configure it only where permitted and appropriate.
TECHNICAL DETAILS
System specifications
Specifications describe the included models. Camera quantity follows your selected configuration.
X3 dual-lens camera
- Model
- CNU01P-1SW-AB1 · White
- Resolution / frame rate
- 8MP, 4224 × 1848 · Up to 30 fps
- Field of view
- 190.8° horizontal · 80.2° vertical
- Lens / WDR
- Dual fixed 2.4 mm F1.6 · 120 dB True WDR
- Weather / temperature
- IP66 · -40°C to 60°C
- Power
- IEEE 802.3af PoE or 12V DC · Max 11.2 W PoE
XC recorder
- Model
- RNU01P-64B-AB1
- Channels / inputs
- 16 channels · 16 PoE
- Storage
- 4TB installed · 2 SATA bays · 24TB max per disk
- Outputs
- 1 HDMI · 1 VGA
- Network / power budget
- 2 gigabit RJ45 · 240 W total PoE
- App
- Lorex Connect · iOS and Android
Camera storage and integration
- Local camera storage
- MicroSD card slot up to 1TB for independent recording
- Recording access boundary
- MicroSD recordings are accessed through the camera in a web browser; they are not uploaded to the NVR or cloud for mobile viewing
- Alarm I/O
- 1 input and 1 output
- Network
- RJ45 10/100/1000BASE-T; ONVIF and RTSP supported
- Video compression
- H.264, H.265 and MJPEG
Recorder connections, backup and alerts
- USB
- Front: 2 × USB 2.0; rear: 1 × USB 3.0
- Audio I/O
- 1 input and 1 output
- Alarm I/O
- 6 inputs and 2 outputs
- Additional connections
- 1 × eSATA; RS-485
- Backup media
- USB device, network or eSATA
- Notifications
- Video-loss, beep, email and push events; email text and snapshot alerts
IN THE BOX
Core hardware and accessories
Choose the camera count shown in the purchase options.
XC recorder
16-channel recorder with 4TB installed storage.
X3 dual-lens turret cameras
Choose 4, 8, 12, or 16 cameras. The camera quantity follows your selection.
Power and display accessories
Power cable, HDMI cable and USB mouse.
Mounting and installation accessories
2 mounting brackets, 6 bracket screws, 8 HDD screws, 2 alarm I/O terminal block connectors and 4 adhesive foam feet pads.
Camera mounting and connection accessories
Mounting hardware, Torx key, alarm I/O terminal block connector and weather-resistant RJ45 cable gland.
PLAN SEPARATELY
Cabling and remote-viewing requirements
Camera Ethernet cables
Camera Ethernet cables are sold separately. Plan a cable route for each camera.
Router and internet
A router is not included. High-speed internet and a wired recorder-to-router connection are required for remote viewing.
Additional internal storage
The recorder supports up to two 24TB drives. Installed storage is already included; additional capacity is optional.
Third-party integration
ONVIF support does not guarantee all advanced features with every third-party device.
QUESTIONS ANSWERED
Before you choose your configuration
Key installation, recording and compatibility details.
How many cameras are included?
Choose 4, 8, 12, or 16 cameras using the purchase options. The selected SKU and price identify your configuration.
Are camera cables included?
No. Camera Ethernet cables are sold separately. Plan suitable Ethernet runs for each camera.
Does it use Wi-Fi or PoE?
The included cameras are wired PoE cameras. Ethernet carries power and video; remote app access requires a router and internet connection.
Is a monthly subscription required?
Local NVR recording requires no monthly subscription. Video records to the included local NVR storage; internet service for remote access remains your responsibility.
How much storage is included?
4TB is installed. Two SATA bays support up to 24TB per disk, or 48TB total internal capacity.
How long will recordings be retained?
Retention varies with camera count, resolution, recording settings, lighting and movement. No fixed duration is promised.
Does color night vision work in total darkness?
Color night vision needs sufficient ambient light. In darker conditions the camera uses infrared black-and-white night vision; stated IR range is up to 30 m in total darkness under the manufacturer conditions.
Does this camera pan, tilt or optically zoom?
No motorized PTZ or optical zoom is specified for this dual fixed-lens camera. Its panoramic horizontal field of view is 190.8°.
Can I hear and speak through the camera?
Yes. The camera has a microphone and speaker for two-way talk. Audio recording is disabled by default; observe applicable consent and privacy requirements.
Can I view the system remotely?
Yes, through Lorex Connect on iOS or Android. Connect the NVR to a router and high-speed internet. Lorex recommends at least 6 Mbps upload for reasonable video performance.
Can I use other cameras?
The recorder supports ONVIF S/T/G/M and RTSP. Confirm exact model compatibility; advanced features can differ with third-party devices.
Is the recorder weatherproof?
The IP66 rating applies to the cameras. Keep the recorder in a suitable protected location within its stated operating conditions.
Does camera microSD recording appear in the NVR app?
The camera supports independent microSD recording up to 1TB. That footage is accessed through the camera web interface and does not upload to the NVR or cloud for mobile app viewing.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE

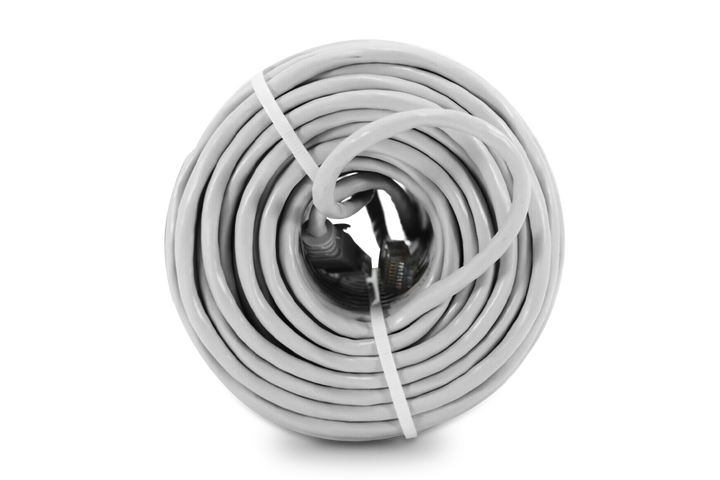

Lorex 100ft Cat5e Ethernet Extension Cable (CBL100C5)
$49.99 USD
Required to connect each PoE camera when no suitable cable is already installed.
Useful when: Required to connect each PoE camera when no suitable cable is already installed.
Not needed when: A compliant, tested Ethernet run of adequate length already exists.
Compatibility: Use CBL100C5 for an indoor IP-camera route of suitable length. Choose cable rated for outdoor, riser or plenum routes when required.
Sold separately.
Available
UPGRADE

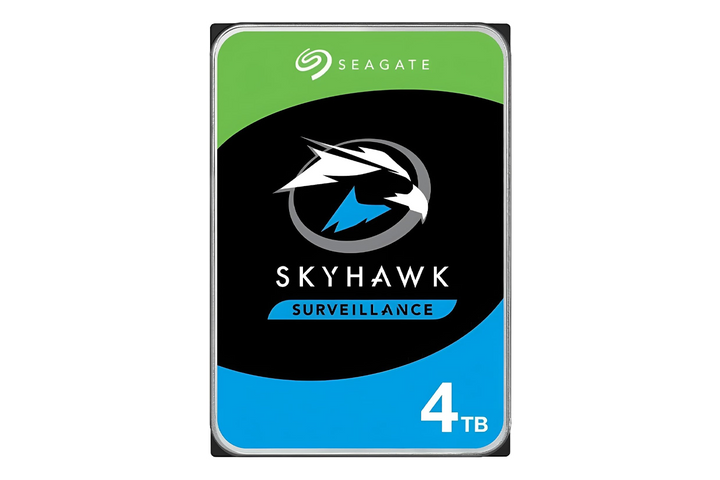

Lorex Seagate SkyHawk 4TB Surveillance Hard Drive (HDD4TB)
$319.99 USD
Increases recording retention or fills an available second bay where supported.
Useful when: Increases recording retention or fills an available second bay where supported.
Not needed when: Installed retention is sufficient or no bay/replacement plan is approved.
Compatibility: Use compatible surveillance-grade storage sized for the recorder’s drive bay and supported capacity.
Sold separately.
Available
CHOOSE YOUR SYSTEM
Select the camera count for your property
16-channel recording with 4TB installed storage and X3 panoramic turret cameras.
- Camera count follows your selected configuration
- Camera Ethernet cables sold separately
- Router and internet needed for remote viewing
SKU CNDL-TW4-16CH4T
4 cameras
Quantity: 1
$2,279.99 USD
Review your selected SKU, quantity and price before adding to cart.
