4K camera detail
V5 cameras capture 4K video. Display quality also depends on the connected screen and viewing conditions.
LOREX CONNECT V SERIES

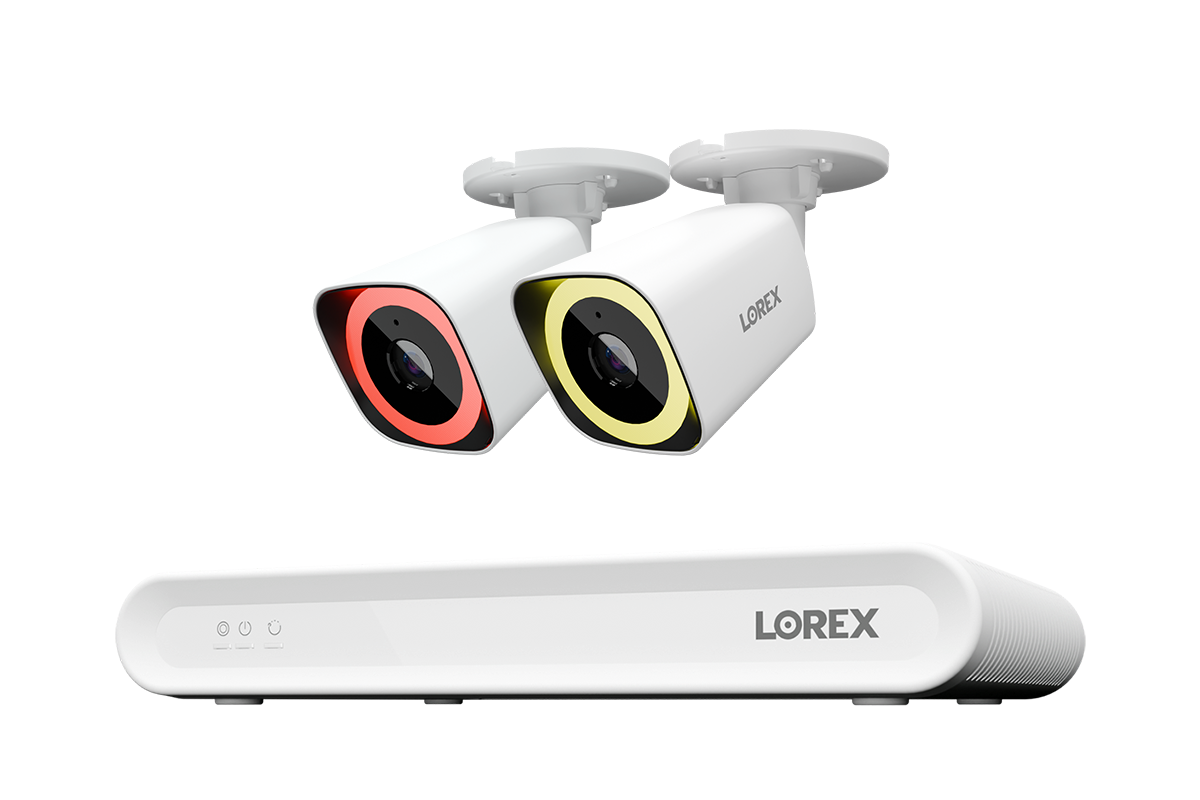

Lorex Connect V Series 4K 8-Channel Wired NVR System with V5 4K PoE Bullet Cameras - 1TB
4K wired recording with V5 bullet cameras, smart lighting and two-way audio.
- 8-channel NVR · 1TB included
- Choose 2, 4, 6 or 8 cameras in white or black
AT A GLANCE
Product Overview
A wired 4K system with V5 bullet cameras, local storage and smart detection for monitoring your home or business.
-
Choose your coverage
Select 2, 4, 6 or 8 cameras with a recorder that supports up to eight cameras.
-
Record locally
A 1TB drive is included, with one drive bay supporting an upgrade to 10TB.
-
See and respond
Smart security lighting, active deterrence and two-way audio help you respond to activity.
-
Keep track after dark
V5 cameras provide AI Color Night Vision and carry an IP67 weatherproof rating.
-
Find relevant events

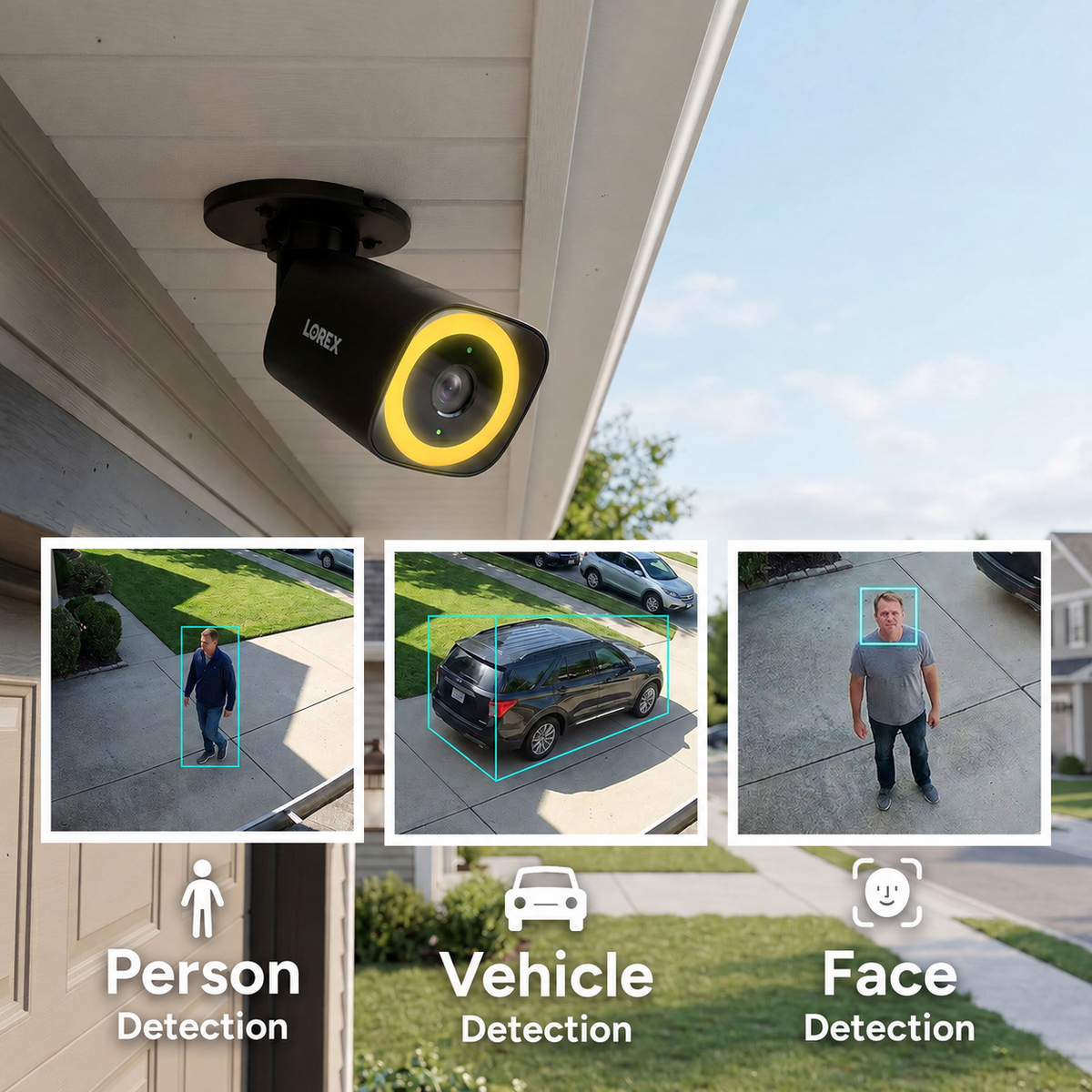

Person and vehicle detection and Smart Search help you review recorded activity.
-
Plan a wired installation
PoE connects the cameras to the recorder; camera Ethernet cables are sold separately.
Full product details
The Lorex Connect V Series security system combines an RN301A-81W-AB1 8-channel wired network video recorder with V5 4K PoE bullet cameras. Configurations offer 2, 4, 6 or 8 cameras in white or black; the selected configuration determines the included camera count and colour.
The recorder includes 1TB of local storage and one drive bay supporting up to 10TB. It supports continuous, motion detection and AI motion detection recording, Smart Search, H.264/H.265 compression and USB backup. Recording retention varies with resolution, quality, lighting, movement and settings.
The V5 cameras provide smart security lighting, smart motion detection, active deterrence, AI Color Night Vision and two-way audio, with an IP67 weatherproof rating. The recorder has eight PoE camera inputs and HDMI and VGA display outputs. Maximum HDMI display resolution is 3840 × 2160; displayed image quality depends on the connected camera and screen.
The system works with Lorex Connect on iOS and Android. Remote access requires high-speed Internet and a wired connection from the recorder to a router, which is not included. Lorex recommends at least 6Mbps upload speed. Local recording has no required monthly fee.
The package includes the recorder, the selected cameras, recorder network cable, HDMI cable, USB mouse, power adapter, camera mounting hardware and weather-resistant caps. Camera Ethernet cables are sold separately. The recorder uses a fanless design and measures 12.24 × 7.57 × 1.91in (310.90 × 192.28 × 48.51mm). Its operating temperature range is 14°F to 131°F (-10°C to 55°C). Check exact model compatibility before adding other cameras.
WATCH WHAT MATTERS
A clearer view of everyday activity
Bring camera views, recording and event review together in one wired system.
An active response
Use two-way audio, smart security lighting and deterrence features when you need to respond to activity.
Review the right moments
The recorder supports continuous, motion-triggered and AI motion recording, with Smart Search for reviewing footage.
PLAN YOUR COVERAGE
Start with the areas you need to see
Choose positions around your own property, then plan each cable run before installation.
PLANNING EXAMPLE
Entrances and access points
Plan a view of the approach to your door or gate. Two-way audio and smart lighting provide ways to respond; check framing and cable access before mounting.
PLANNING EXAMPLE
Driveways and parking areas
Vehicle detection helps identify relevant activity. Test the final view in daylight and after dark; placement and scene conditions affect what the camera captures.

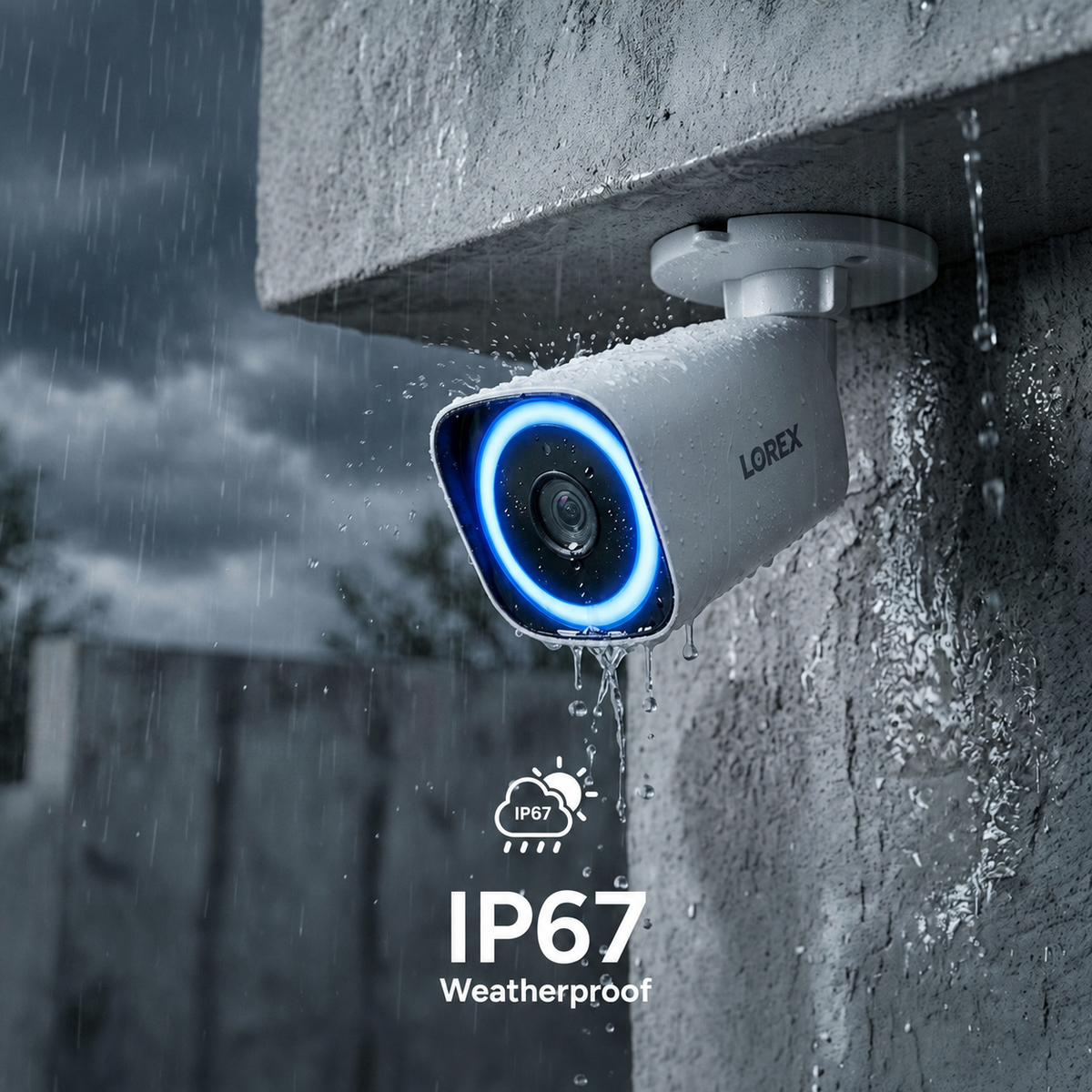

OUTDOOR INSTALLATION
Outdoor coverage in changing weather
The V5 cameras are rated IP67 for indoor or outdoor use and operate from -4°F to 122°F (-20°C to 50°C). They are not intended for submersion; sheltered installation is recommended. Follow the manufacturer’s mounting instructions and protect cable connections.
HOW IT CONNECTS
Cameras, recording and remote viewing
The recorder is the centre of the system. Cameras connect to its eight PoE inputs; a wired router connection enables remote access.
- V5 cameras Capture video with the selected camera configuration.
- Camera Ethernet cables Run separately purchased cables from the cameras to the NVR.
- 8-channel recorder Store video on the included 1TB drive.
- Lorex Connect Use a wired router connection and Internet access for remote viewing.

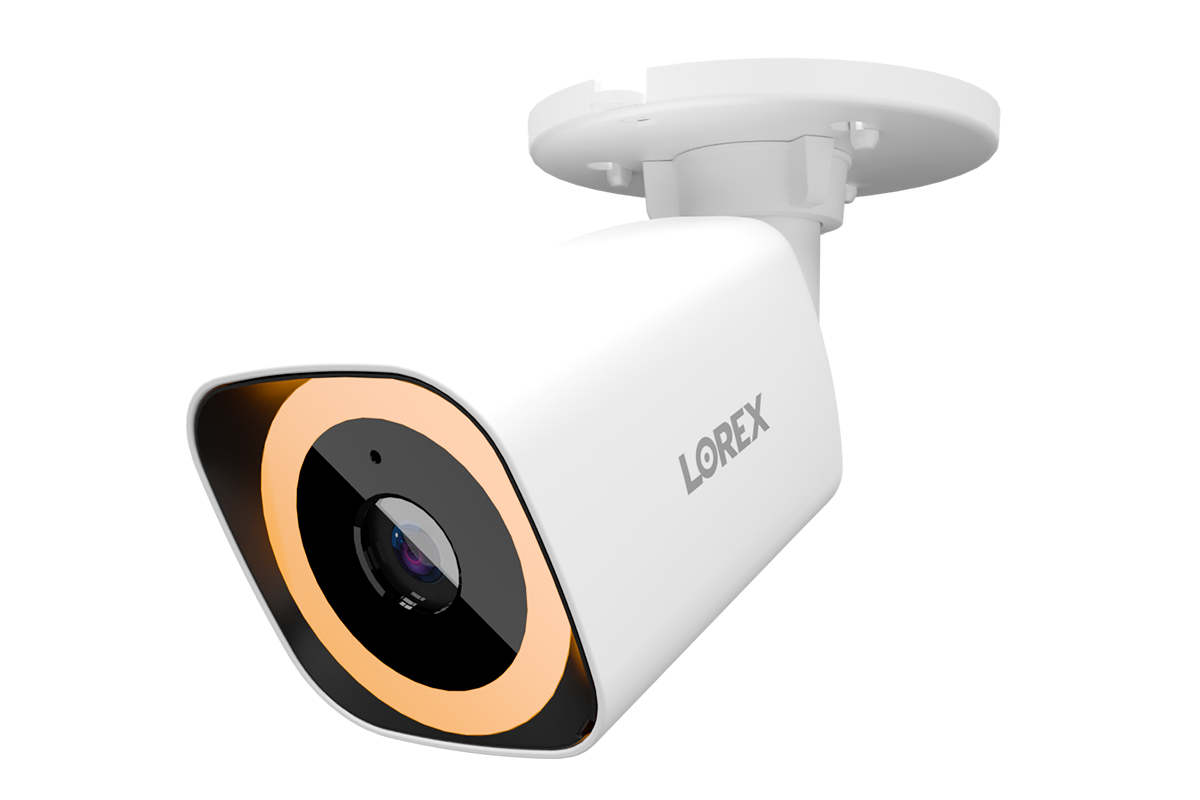

V5 camera detail
Component close-up showing the camera housing, lens and security-light ring. The selected configuration determines camera colour and count.
Audio recording setup
Audio recording is disabled by default. Review the recording settings before enabling it.

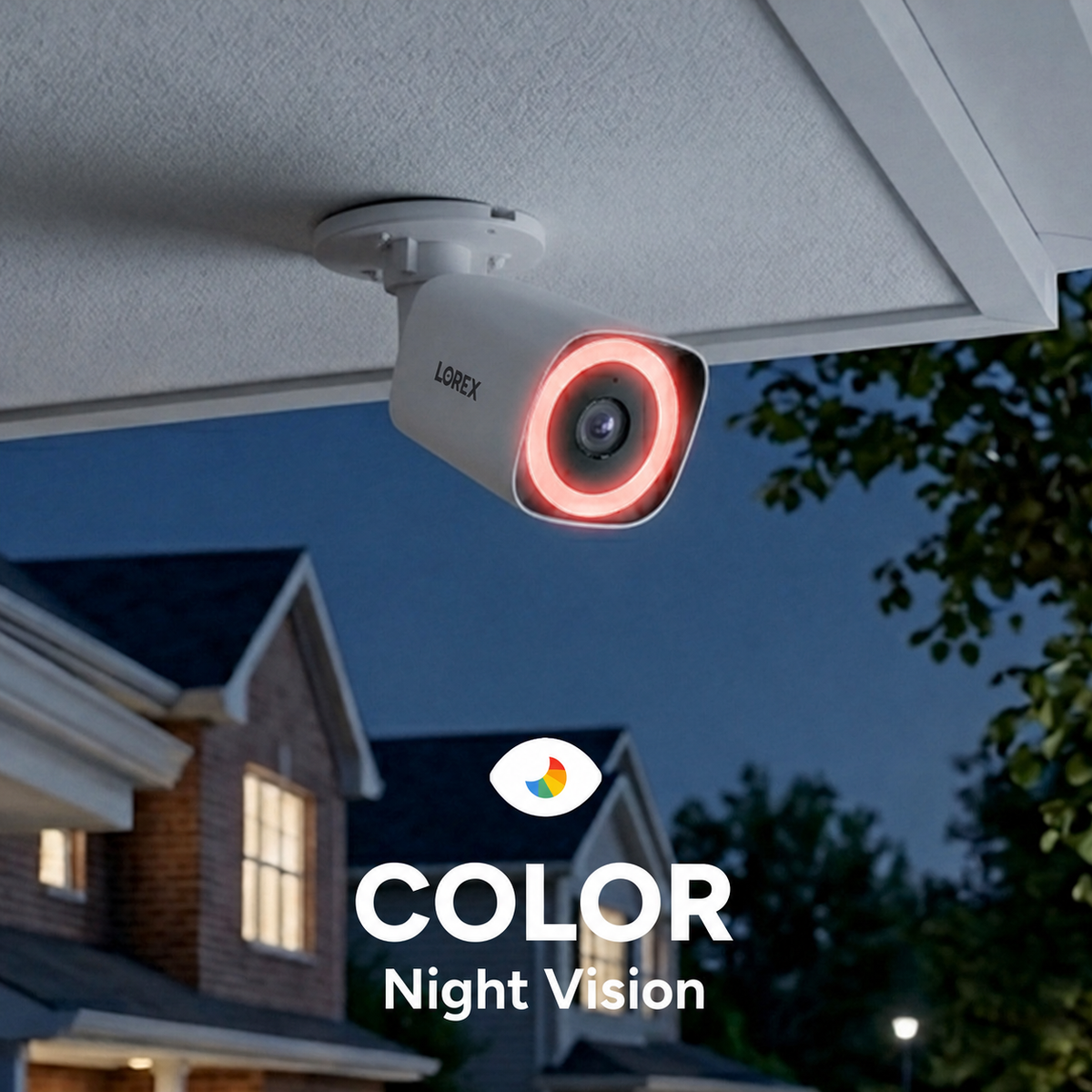

AI Color Night Vision
Color nighttime video can switch to black-and-white infrared when ambient light is insufficient. Infrared night vision reaches up to 82ft (25m) in total darkness; actual range and clarity depend on placement, the viewing area and light reflection. Assess the scene after dark before final mounting.
BEFORE INSTALLATION
Plan the route before you mount
Match the camera count to the areas you want to monitor, then work out cable routes and a suitable location for the recorder.
-
Installation planning
Plan the views
Identify entrances, parking areas or workspaces to cover. Check the camera’s 131° diagonal view and allow at least 6.6ft (2m) to the area that needs to be in focus. Confirm cable access at each position.
Follow the manufacturer’s installation instructions for weather-resistant connections and safe mounting.
-
System requirements
Plan camera cables
Camera Ethernet cables are sold separately. Consider access through walls and select suitable cable lengths for the actual routes.
-
System requirements
Position the recorder
Allow for eight PoE connections, recorder power and any local display connection. The recorder operates from 14°F to 131°F (-10°C to 55°C).
-
System requirements
Connect remote viewing
Remote access needs high-speed Internet and a wired router connection. The router is not included; Lorex recommends at least 6Mbps upload speed.
SPECIFICATIONS
The system in detail
The RN301A recorder provides eight channels and 1 TB of included storage. Camera count and color follow your selected configuration.
Camera system
- Cameras
- V5 4K PoE bullet; White CN502A-1BW-AB1 or Black CN502A-1BB-AB1; selected count and colour
- Camera weather rating
- IP67
- Camera audio
- Two-way audio; audio recording is disabled by default
- Lighting
- Smart security lighting and active deterrence
- Night vision
- AI Color Night Vision
Camera imaging and coverage
- Resolution and frame rate
- 3840 × 2160; 4K (8 MP) at 15 fps
- Field of view
- 131° diagonal
- Lens
- Fixed 2.8 mm, F1.6
- Minimum focusing distance
- 6.6ft (2m)
- Camera power
- PoE (IEEE 802.3af) or 12V DC; maximum 9.5W
Camera dimensions and environment
- Dimensions (W × D × H)
- 3.9 × 6.7 × 3.9in (100.57 × 170.80 × 100.57mm)
- Camera weight
- 1.20lb (0.54kg)
- Camera operating temperature
- -4°F to 122°F (-20°C to 50°C)
- Installation conditions
- IP67 indoor/outdoor; not intended for submersion. Sheltered installation recommended.
Camera detection, storage and network
- AI detection
- Person, vehicle and face detection
- Local camera storage
- MicroSD card slot up to 256GB for independent recording
- Recording access boundary
- MicroSD recordings are accessed through the camera in a web browser; they are not uploaded to the compatible NVR or cloud
- Network
- RJ45 10/100BASE-T; ONVIF and RTSP supported
- Video compression
- H.265 and H.264
Recording and storage
- Recorder
- RN301A-81W-AB1; 8-channel NVR
- Included storage
- 1TB
- Drive capacity
- One bay; up to 10TB
- Recording modes
- Continuous, motion detection and AI motion detection per channel
- Compression
- H.264 / H.265
- Backup
- USB flash drive
Connections and viewing
- Camera inputs
- 8 × PoE
- Display outputs
- 1 × HDMI; 1 × VGA
- Maximum HDMI display
- 3840 × 2160
- USB ports
- 2 × USB 2.0 at the rear
- Mobile viewing
- Lorex Connect for iOS and Android
- Remote access
- Wired router connection and high-speed Internet; minimum 6Mbps upload recommended
Recorder dimensions and environment
- Dimensions (W × D × H)
- 12.24 × 7.57 × 1.91in (310.90 × 192.28 × 48.51mm)
- Recorder weight
- 2.602lb (1.18kg)
- Operating temperature
- 14°F to 131°F (-10°C to 55°C)
- Humidity
- 10–90% RH
- Cooling
- QuietTek fanless design
- PoE budget
- Maximum 25.5W per port; 57W total
IN THE BOX
What’s included
Major components and accessory categories are listed below. Camera Ethernet cables are sold separately.
8-channel NVR
RN301A recorder with 1TB storage.
V5 4K PoE bullet cameras
Camera count and colour match the selected configuration.
Recorder accessories
Network cable, HDMI cable, USB mouse and power adapter.
Camera mounting accessories
Mounting hardware and weather-resistant caps.
PLAN SEPARATELY
Installation and expansion
Prepare the camera cables and the network connection needed for your installation. A larger storage drive is an optional upgrade.
Camera Ethernet cables
Camera Ethernet cables are sold separately.
Router and Internet for remote viewing
Remote access requires a wired NVR connection to a router and high-speed Internet.
Larger recording drive
The recorder supports one drive up to 10TB; the system includes a 1TB drive.
QUESTIONS, ANSWERED
Before you choose your system
Key details about cameras, storage, installation and viewing.
How many cameras are included?
Choose 2, 4, 6 or 8 cameras in white or black. The included number is the number shown in your selected configuration; the recorder supports up to eight cameras.
Are camera cables included?
No. Camera Ethernet cables are sold separately. The recorder accessory list includes its network cable, HDMI cable, USB mouse and power adapter.
Is this a wireless camera system?
The V5 cameras use wired PoE connections to the recorder. Plan a cable route from each camera to the NVR.
Can I upgrade the storage?
Yes. The NVR includes a 1TB drive and supports one drive up to 10TB. Recording retention varies with scene conditions, quality and recording settings.
What do I need for remote viewing?
Use the Lorex Connect app with high-speed Internet and a wired connection between the NVR and your router. The router is not included. Lorex recommends at least 6Mbps upload speed.
Do the cameras support two-way audio?
Yes. Two-way audio is listed for the V5 cameras in this system, together with smart security lighting and deterrence features.
Can the cameras be used outside?
The V5 cameras have an IP67 weatherproof rating. Follow the manufacturer’s installation instructions for mounting and protecting connections.
Are monthly fees required for local recording?
Local recording has no monthly fee. Video is stored on the recorder’s included drive.
Can I add any camera to the recorder?
Check the exact camera model against Lorex compatibility information before adding cameras. An eight-channel capacity does not establish compatibility with every camera.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE
Lorex 100ft Cat5e Ethernet Extension Cable (CBL100C5)
$49.99 USD
Required to connect each PoE camera when no suitable cable is already installed.
Useful when: Required to connect each PoE camera when no suitable cable is already installed.
Not needed when: A compliant, tested Ethernet run of adequate length already exists.
Compatibility: Use CBL100C5 for an indoor IP-camera route of suitable length. Choose cable rated for outdoor, riser or plenum routes when required.
Sold separately.
Available
RECOMMENDED

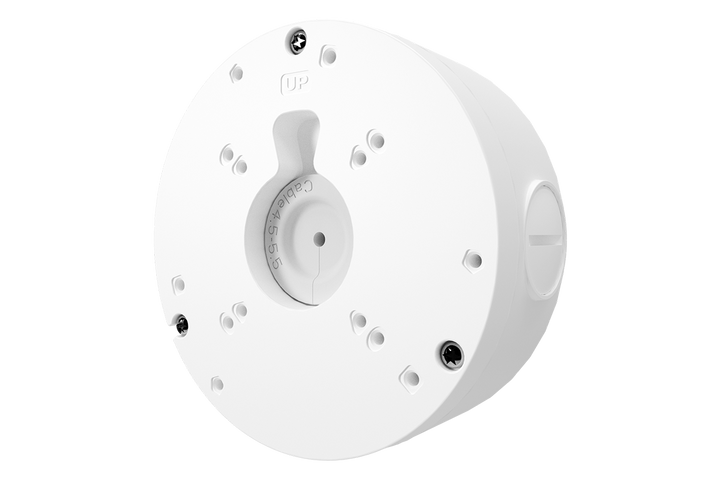

Lorex Round Junction Box for Fixed-Lens Cameras (JB301P)
$49.99 USD
Protects connections and supports a cleaner fixed-camera installation.
Useful when: Protects connections and supports a cleaner fixed-camera installation.
Not needed when: Existing installation has a compatible protected junction or direct mount.
Compatibility: Match the junction box to the exact fixed-camera model and housing color before installation.
Sold separately.
Available
BUILD YOUR COVERAGE
Choose your V5 bullet configuration
Select the camera count and colour for your installation. Your selected configuration and quantity are shown below.
- 8-channel recorder · 1TB included
- Camera Ethernet cables sold separately
- Lorex Connect remote viewing
SKU CN502V5-BW2-8CH1T
White / 2 cameras
Quantity: 1
$759.99 USD
Check your selected configuration before adding it to your cart.
