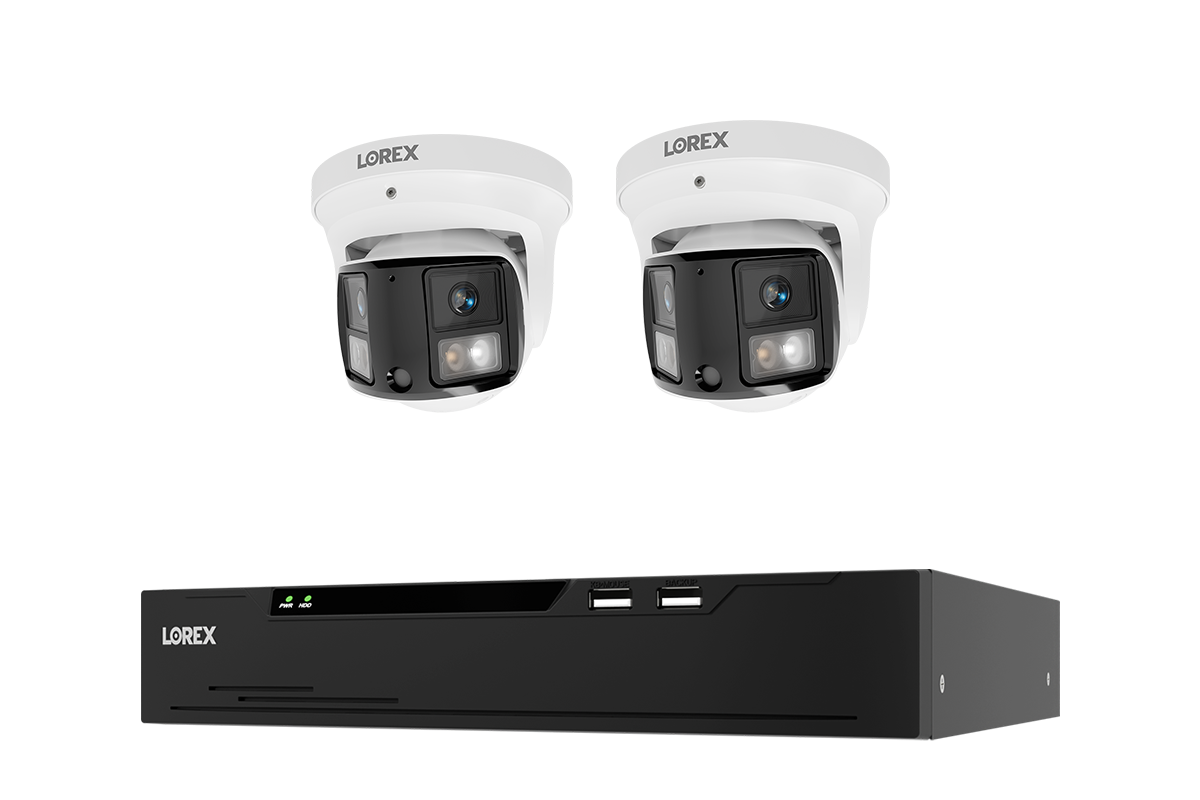

Lorex Connect X Series system with two X3 dual-lens turret cameras and XC 4K 8-channel NVR

LOREX CONNECT X SERIES · WIRED 4K SECURITY

Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Dual-Lens Turret Camera - 2TB

A panoramic dual-lens PoE system with continuous local recording—configured with 2 TB of installed storage and your choice of 2, 4, 6, or 8 cameras.

2, 4, 6, or 8 X3 dual-lens cameras
XC 4K 8-channel NVR · 2 TB installed

Choose 2, 4, 6, or 8 cameras

Every configuration uses the same XC 4K eight-channel NVR with 2 TB installed; only the included camera quantity changes.
Wide 4K dual-lens view

Each fixed-lens X3 camera records up to 4224 × 1848 at 30 fps with a 190.8° horizontal field of view.
Continuous local recording

The NVR supports continuous, motion, and AI recording with no monthly fee required for documented local recording.
2 TB installed · up to 12 TB

The recorder has one SATA bay with a 2 TB drive installed and supports a drive up to 12 TB.
Detection and active deterrence

Supported analytics include person, vehicle, perimeter, loitering, wrong-way, parking, and people-counting events, with setup requirements.
Plan camera cabling separately

Ethernet camera cables are not included. Measure every PoE route and confirm the mounting, network, power, and display plan before installation.

Full product details

The Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Dual-Lens Turret Camera - 2TB is a wired PoE security system with one 8-channel XC 4K NVR, 2 TB of installed storage, and a choice of 2, 4, 6, or 8 X3 dual-lens turret cameras. Every variant uses the same 2 TB recorder; only the included camera quantity changes. Condition: Brand new.

Wide 4K view: Each included camera records up to 4224 × 1848 at 30 fps through dual fixed 2.4 mm lenses, providing a 190.8° horizontal and 80.2° vertical field of view.
Local recording: The NVR has 8 IP channels and 8 PoE ports, supports continuous, motion, and AI recording, and includes one SATA bay with a 2 TB drive installed. The bay supports up to 12 TB. Documented local NVR recording does not require a monthly fee; remote, network, account, or optional services may have separate requirements.
Detection and deterrence: Supported features include person, vehicle, intrusion, loitering, wrong-way, unauthorized-parking, line-crossing, dual-line-crossing, and people-counting detection, plus red/blue and white lights, a siren, and prerecorded messages. Setup requirements may apply.
Night and audio: Color Night Vision depends on ambient light; infrared night vision reaches up to 98 ft / 30 m under ideal conditions. The camera includes a microphone, speaker, and two-way talk. Audio recording is disabled by default; follow applicable consent laws.
Compatibility and remote access: The system supports ONVIF Profiles G, M, S, and T plus RTSP. The Lorex Connect app supports iOS and Android remote access through a customer-supplied wired router connection.
Weather and independent camera storage: The camera housing is IP66 rated; do not submerge it, and a sheltered installation is recommended. Each camera has a microSD slot supporting up to 1 TB for independent browser-access recording. microSD cards are not included, and this recording does not upload to the NVR or cloud for mobile viewing.

Included

One RNE01P-82B-AB1 NVR with power adapter and cable, one HDMI cable, one USB mouse, two NVR alarm terminal blocks, six HDD screws, and four adhesive foam feet. Each selected CNU01P-1SW-AB1 camera includes one alarm terminal block, one Torx/security key, one mounting template, one mounting hardware set, and one weather-resistant RJ45 cable gland.

Not included

Ethernet camera cables, microSD cards, a router, a display or TV, and installation service are not included. Cable runs, mounting surfaces, network infrastructure, and other site conditions determine installation requirements.

The included cameras use fixed lenses and manual physical positioning. They are not motorized PTZ cameras; optical zoom and autonomous tracking are not established for this model. This product is not intended for U.S. federal government, federally funded, or NDAA-subject contractor use.

See more of the scene in one frame

Dual fixed 2.4 mm lenses create a 190.8° horizontal field of view, helping a single camera preserve panoramic context without claiming motorized movement.

Keep recording anchored locally

PoE carries power and data to each camera while the XC NVR supports continuous, motion, and AI recording on its installed 2 TB drive.

Match camera count to the site

Choose 2, 4, 6, or 8 cameras. Every variant uses the same eight-channel recorder and installed storage, so the camera quantity is the decision that changes.

WHERE IT MAY FIT

Different sites create different monitoring questions

These scenarios are planning examples, not coverage or detection guarantees. Site conditions and configuration determine real performance.

ENTRANCE CONTEXT

Wide approaches and entry areas

The panoramic view can help retain activity across a broad approach. Plan for mounting height, obstructions, lighting, and a protected Ethernet route.

PERIMETER EVENTS

Boundaries, lanes, and crossing points

Line-crossing, dual-line-crossing, intrusion, and wrong-way rules may help organize review when their zones are configured for the actual scene.

VEHICLE AREAS

Driveways and parking areas

Vehicle, loitering, and unauthorized-parking detection can help surface relevant events without guaranteeing identification or capture in every condition.

MULTI-ZONE RECORDING

Homes, workshops, and small commercial sites

Multiple wired cameras can return to one indoor NVR. Confirm cable paths, PoE load, viewing needs, and the eight-camera ceiling before fixing the design.

X3 cameras Fixed dual-lens views originate at the selected camera count.
→
Wired Ethernet Customer-supplied Ethernet carries camera power and data.
→
XC 4K recorder Eight channels and eight PoE ports manage and record the feeds.
→
Viewing paths Use HDMI or VGA locally, or Lorex Connect over the network.

A stitched panoramic camera view

Two fixed 2.4 mm lenses capture up to 4224 × 1848 at 30 fps across a 190.8° horizontal and 80.2° vertical field of view.

Manual positioning, clearly bounded

The housing allows manual physical adjustment. The camera is not motorized PTZ, and optical zoom or autonomous tracking is not established for this model.

Event types for real site rules

Supported analytics include person, vehicle, intrusion, loitering, wrong-way, unauthorized parking, line crossing, dual-line crossing, and people counting.

Color and infrared night viewing

Color Night Vision depends on ambient light. Infrared reaches up to 98 ft / 30 m under ideal conditions, with actual range affected by the site.

Built-in deterrence and two-way talk

Red/blue and white lights, a siren, prerecorded messages, microphone, speaker, and two-way talk are supported. Setup and local consent laws may apply.

Local and remote viewing paths

Use the NVR's HDMI or VGA output locally, or the Lorex Connect app on iOS and Android through a customer-supplied wired router connection.

SITE-PLAN CONCEPT

Camera zones connect by separately planned Ethernet routes

Assign each selected camera a specific zone, measure its entire cable path, and bring each PoE route back to an indoor recorder location with power, optional LAN access, and ventilation.

Planning checkpoint 1
Planning checkpoint 2
Planning checkpoint 3
Planning checkpoint 4

Indoor recorder location Power · LAN · ventilation

CLEARVERO PLANNING

Give each camera one primary job
List the approaches, boundaries, parking areas, or activity transitions that matter before choosing the camera count or drilling.
CABLES NOT INCLUDED

Measure every PoE route
Ethernet camera cables are not in the package. Measure complete protected routes back to the NVR and select suitable Cat5e/Cat6 cabling for the site.
FIXED-LENS CAMERA

Confirm the view before final mounting
The camera uses fixed lenses and manual physical positioning. Check the panoramic seam, obstructions, lighting, mounting surface, and cable entry before tightening it in place.
INDOOR RECORDER

Protect and ventilate the NVR
Choose an indoor location with power, LAN access if needed, and at least 2 in / 5 cm of clearance on every side.
REMOTE ACCESS

Plan the router connection
Lorex Connect remote access requires a customer-supplied wired router connection. The router and Ethernet uplink cable are not included.
AUDIO + PROJECT SCOPE

Review site and legal requirements
Audio recording is disabled by default; follow applicable consent laws. This system is not intended for U.S. federal, federally funded, or NDAA-subject contractor use.

BUYING GUIDANCE

A strong fit starts with the right infrastructure

Use these signals to decide whether the X3 fixed panoramic architecture matches the property and project requirements.

You can route Ethernet to every camera

The system is built around wired PoE transport, not wire-free placement.

Wide fixed views match the monitoring plan

The dual-lens panoramic view favors broad context without motorized movement.

Continuous local recording matters

The NVR and installed drive provide a documented local recording path.

You expected camera cables in the box

Ethernet camera cables are not included and must be planned separately.

You require motorized PTZ or optical zoom

This fixed-lens model does not establish motorized PTZ, optical zoom, or autonomous tracking.

The installation is NDAA-subject

This product is not intended for U.S. federal, federally funded, or NDAA-subject contractor use.

Camera imaging

Sensor: Dual 8 MP, 1/2.8-inch CMOS
Maximum resolution: 4224 × 1848 (8 MP, 16:7)
Maximum frame rate: 30 fps at the documented maximum video mode
Lens: Dual fixed 2.4 mm, F1.6
Field of view: 190.8° horizontal; 80.2° vertical
Wide dynamic range: 120 dB True WDR

Detection & deterrence

Object detection: Person and vehicle
Site analytics: Intrusion, loitering, wrong-way, and unauthorized parking
Perimeter analytics: Line crossing and dual-line crossing
Crowd analytics: People counting
Deterrence: Red/blue light, white light, siren, and prerecorded messages
Qualification: Configuration, placement, scene, and event conditions affect performance

Night vision & audio

Color Night Vision: Supported when ambient light is sufficient
Infrared range: Up to 98 ft / 30 m under ideal conditions
Audio hardware: Microphone and speaker
Communication: Two-way talk
Audio recording: Disabled by default
Legal note: Follow applicable audio-consent laws

NVR & storage

Recorder: RNE01P-82B-AB1 XC 4K NVR
Channels / PoE ports: 8 / 8
Installed storage: 2 TB
Drive bay: One SATA bay
Supported capacity: Up to 12 TB
Recording modes: Continuous, motion, and AI

Network, viewing & interoperability

Camera network: RJ45 10/100/1000 Base-T
Camera power: 12 V DC or PoE IEEE 802.3af
Local display: One HDMI and one VGA output, up to 4K
Remote app: Lorex Connect for iOS and Android
Interoperability: ONVIF Profiles G, M, S, and T; RTSP
Remote dependency: Customer-supplied wired router connection

Camera housing & placement

Weather rating: IP66; do not submerge; sheltered installation recommended
Operating temperature: −40°C to 60°C; ≤90% RH
Adjustment: Manual pan 360° / tilt 90° / rotation 360°
Dimensions: Ø140 × 114.2 mm (Ø5.51 × 4.50 in)
Weight: 0.93 kg / 2.05 lb
Housing: White aluminum alloy

Storage, compatibility & boundaries

Independent camera storage: microSD slot up to 1 TB; card not included
microSD access: Independent browser-access recording; not uploaded to NVR or cloud for mobile viewing
Motorized movement: Not a motorized PTZ camera
Zoom / tracking: Optical zoom and autonomous tracking are not established
Local fee scope: No monthly fee required for documented local NVR recording
Project restriction: Not intended for U.S. federal, federally funded, or NDAA-subject contractor use

WHAT ARRIVES

The verified bundle contents

The camera quantity follows the selected variant. Every configuration uses the same recorder and installed storage.

Included 1×

XC 4K network video recorder

RNE01P-82B-AB1 NVR with one 2 TB drive installed.

Included 2/4/6/8×

X3 dual-lens turret cameras

The exact CNU01P-1SW-AB1 quantity follows the selected Shopify configuration.

Included NVR SET

Recorder accessories

Power adapter and cable, HDMI cable, USB mouse, two alarm terminal blocks, six HDD screws, and four adhesive foam feet.

Included PER CAMERA

Camera mounting accessories

Each selected camera includes one alarm terminal block, Torx/security key, mounting template, mounting hardware set, and weather-resistant RJ45 cable gland.

PLAN SEPARATELY

Not included, optional, and compatibility boundaries

These items and restrictions can materially affect the installation or purchase decision.

Plan separately NOT INCLUDED

Ethernet camera cables

Plan and purchase suitable camera cable runs separately. The images do not imply cable inclusion.

Optional NOT INCLUDED

microSD cards

Each camera supports up to 1 TB for independent browser-access recording. Cards are not included.

Plan separately REMOTE ACCESS

Router and NVR uplink

A customer-supplied wired router connection is required for Lorex Connect remote access. Router and uplink cable are not included.

Optional CUSTOMER CHOICE

Display or TV

Not included. Add a compatible display if you want the NVR's local HDMI or VGA viewing path.

Optional NOT INCLUDED

Installation service

Labor and site-specific materials are not part of this product.

Compatibility boundary NOT ELIGIBLE

U.S. federal / NDAA-subject projects

This product is not intended for U.S. federal government, federally funded, or NDAA-subject contractor use.

What changes between the four configurations?

Only the included X3 camera quantity changes: 2, 4, 6, or 8. Every variant uses the same XC 4K eight-channel NVR with 2 TB installed.

What exactly is included?

You receive one RNE01P-82B-AB1 NVR with its documented accessories and the selected quantity of CNU01P-1SW-AB1 cameras, each with its documented mounting accessories and weather-resistant RJ45 gland.

Are Ethernet camera cables included?

No. Camera Ethernet cables are not included. Measure every route and supply suitable cable for the site; product images do not imply cable inclusion.

Do the cameras pan, tilt, zoom, or track automatically?

No motorized PTZ, optical zoom, or autonomous tracking is established for this model. Its dual 2.4 mm lenses are fixed, and camera positioning is adjusted manually.

What does the dual-lens design provide?

Each camera records up to 4224 × 1848 at 30 fps with a 190.8° horizontal and 80.2° vertical field of view.

Where is video recorded?

The NVR supports continuous, motion, and AI recording on its installed 2 TB drive. The single SATA bay supports a drive up to 12 TB.

Is a monthly fee required?

No monthly fee is required for documented local NVR recording. Remote, network, account, or optional services may have separate requirements.

What is required for Lorex Connect remote access?

A customer-supplied wired router connection is required. The router and NVR Ethernet uplink cable are not included.

How does night viewing work?

Color Night Vision depends on ambient light. Infrared reaches up to 98 ft / 30 m under ideal conditions, with actual range affected by placement and scene conditions.

Are audio and two-way talk supported?

Yes. The camera includes a microphone, speaker, and two-way talk. Audio recording is disabled by default; follow applicable consent laws.

Can each camera record to microSD?

Each camera supports a card up to 1 TB for independent browser-access recording. Cards are not included, and this recording does not upload to the NVR or cloud for mobile viewing.

Can the cameras be installed outdoors?

The cameras are IP66 rated. Do not submerge them, and a sheltered installation is recommended. The NVR belongs indoors with at least 2 in / 5 cm clearance on every side.

What interoperability is documented?

The cameras support ONVIF Profiles G, M, S, and T plus RTSP. Compatibility still depends on the conformant system and intended workflow.

Is this system intended for U.S. federal or NDAA-subject projects?

No. It is not intended for U.S. federal governments, federally funded projects, or contractors subject to NDAA requirements.

How are warranty and returns handled?

The current ClearVero product warranty term is shown near the purchase controls from the centralized warranty source. The 30-Day Money-Back Guarantee is separate; review the linked policies for the applicable terms.

How will shipping cost and timing be confirmed?

Shipping availability, timing, and any applicable charges are confirmed through ClearVero's current shipping terms and checkout for the destination. This page does not invent delivery promises.

CONFIRM THE SYSTEM, THEN PLAN THE SITE

Ready for wide fixed views and local wired recording?

Choose the camera count that matches the planned zones, then confirm Ethernet routes, recorder placement, network needs, and project restrictions before purchase.

2 TB installed in every configuration
2, 4, 6, or 8 X3 cameras
Ethernet camera cables are not included

SKU CNDL-TW2-8CH2T

$1,279.99 USD

Uses the quantity and selected configuration in the purchase area above.
