Keep the wider scene while inspecting motion
A fixed 4K view preserves context while two 2K PTZ views provide closer perspectives from each camera position.
EUFY 4K POE NVR SECURITY

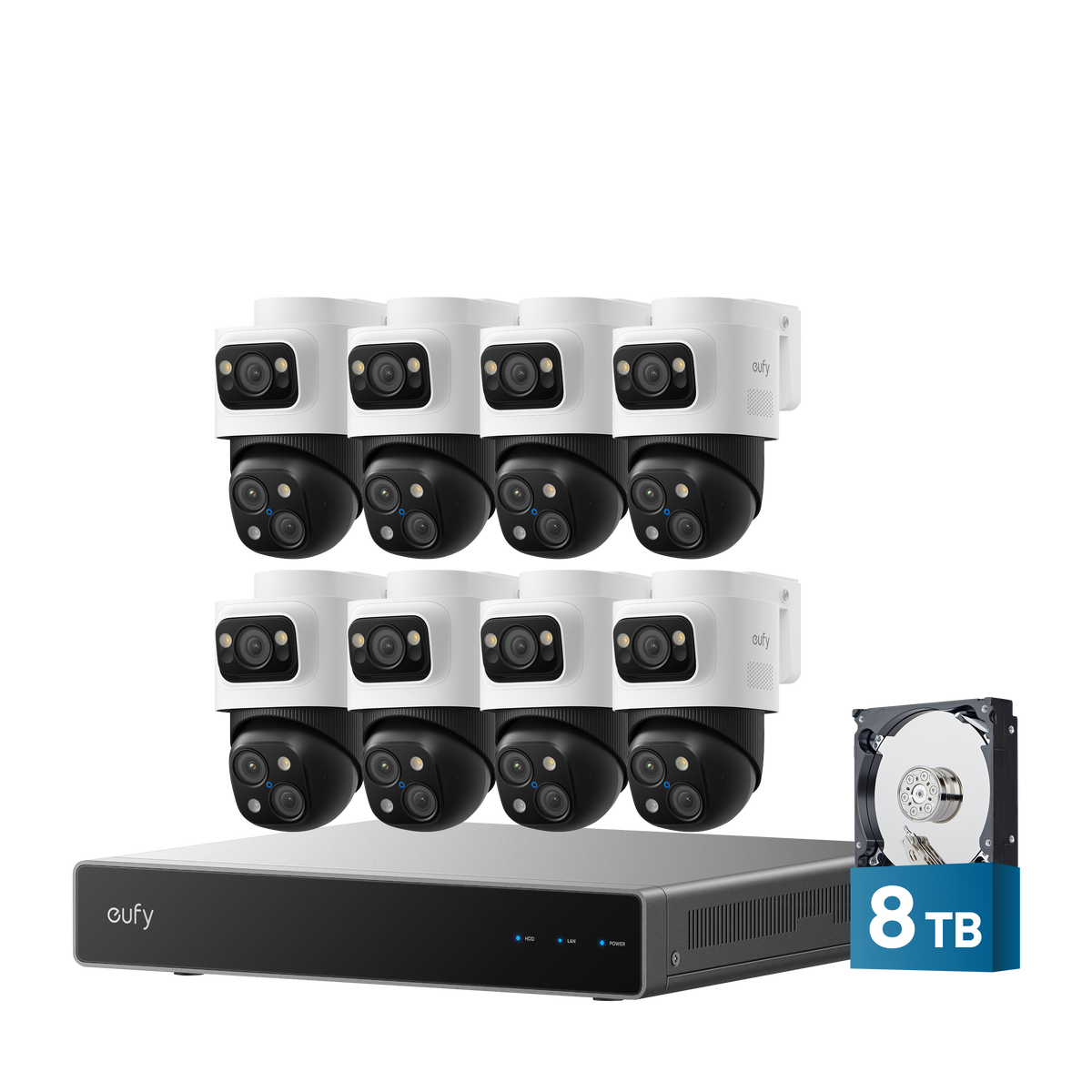

eufy 4K NVR S4 Max 8-Camera Kit with 8 TB HDD
Eight wired PoE Cam S4 cameras, local 8 TB recording, and an NVR S4—configured for complete multi-zone planning without invented add-ons.
- 8 × PoE Cam S4 cameras
- NVR S4 · Preinstalled 8 TB HDD
AT A GLANCE
Product Overview
Eight wired PoE cameras and an 8 TB NVR combine continuous local recording, local AI, and coordinated multi-zone viewing.
-
Eight PoE Cam S4 cameras
Each camera combines one 4K fixed view with two 2K PTZ views.
-
Preinstalled 8 TB storage
The NVR S4 arrives with one 8 TB mechanical hard drive installed.
-
Triple-lens aggregate imaging
One 8 MP view plus two 4 MP views provide 16 MP aggregate imaging per camera.
-
Local AI and video search
Local detection covers people, vehicles, pets and strangers, with keyword video search.
-
Cross-camera tracking
Coordinated tracking is described up to about 50 m when placement and scene conditions support it.
-
PoE-powered 24/7 recording
Eight 18 m Ethernet leads support wired camera power and data to the local recorder.
Full product details
The eufy 4K NVR S4 Max 8-Camera Kit with 8 TB HDD (E8E00129) combines eight PoE Cam S4 cameras with one Network Video Recorder S4 and a preinstalled 8 TB mechanical hard drive. Each camera combines one upper 4K / 8 MP fixed view with two lower 2K / 4 MP PTZ views for 16 MP aggregate imaging, 360° horizontal PTZ movement, 0–70° vertical movement and up to 8× hybrid zoom. The local NVR supports continuous recording, cross-camera tracking, person, vehicle, pet and stranger detection, smart keyword video search, multiple night modes and two-way audio. The NVR has eight built-in PoE ports, supports up to 16 channels and accepts one compatible 3.5-inch drive up to 16 TB. Bullet-PTZ cameras use two streams each, so this eight-camera configuration uses the available 16 streams; compatible expansion topology and a supported PoE switch may be required for other camera combinations. The package includes the NVR, eight cameras, eight 59 ft / 18 m Ethernet cables, one 3.3 ft / 1 m Ethernet cable, one HDMI cable, a power adapter, a USB mouse, mounting hardware, waterproof covers and a Quick Start Guide. The system can be viewed through the eufy app, a local HDMI monitor and the supported web portal. It is not compatible with HomeBase 2, HomeBase 3 or third-party cameras. A compatible local network and correctly routed PoE cabling are required. A PoE expansion switch, additional cabling, local monitor or TV, storage upgrade, Wi-Fi module and professional installation are not included unless a future verified offer expressly says otherwise.
WHY THIS CONFIGURATION
Eight wired viewpoints, one local recording plan
This configuration suits multi-zone properties that need dedicated wired camera positions and one central local recorder, without adding wireless assumptions.
Bring detection and search into the local recorder
Local AI supports person, vehicle, pet and stranger detection, cross-camera tracking and keyword video search without turning the page into a cloud-service promise.
Use the full S4 camera stream plan from day one
Eight Bullet-PTZ cameras use the NVR’s available 16 streams, making expansion a topology decision rather than an assumed add-on.
WHERE IT MAY FIT
Different sites create different monitoring questions
These are planning examples, not coverage guarantees. Each scenario highlights a distinct placement, cabling or visibility question.
APPROACHES
Entrances and long driveways
Assign fixed context and PTZ inspection to the movement path that matters, then verify sightlines, lighting and the complete Ethernet route.
PERIMETERS
Boundaries and exterior routes
Multiple camera positions can help maintain continuity across separate edges, while actual tracking still depends on placement and unobstructed views.
VEHICLE AREAS
Parking and loading approaches
Vehicle detection, night modes and two-way audio can support observation around arrival zones without promising perfect identification.
MULTI-ZONE SITES
Large properties and separate buildings
Eight camera positions can cover distinct priorities while one NVR centralizes recording; measure each path before committing to cable routes.
CENTRAL RECORDING
Commercial and campus exteriors
A central local recorder can organize continuous footage across several exterior zones when network, power and mounting plans are confirmed first.
HOW THE SYSTEM WORKS
From eight camera positions to one local recorder
Eight PoE Cam S4 cameras send power and data over Ethernet to the NVR, which records locally and supports app, HDMI and web viewing.
- PoE Cam S4 Fixed and PTZ views originate at eight included cameras.
- Wired Ethernet Cat5 or Cat6 carries camera power and data.
- NVR S4 The recorder manages feeds and stores video locally.
- Viewing paths Use the eufy app, local HDMI interface or supported web portal.

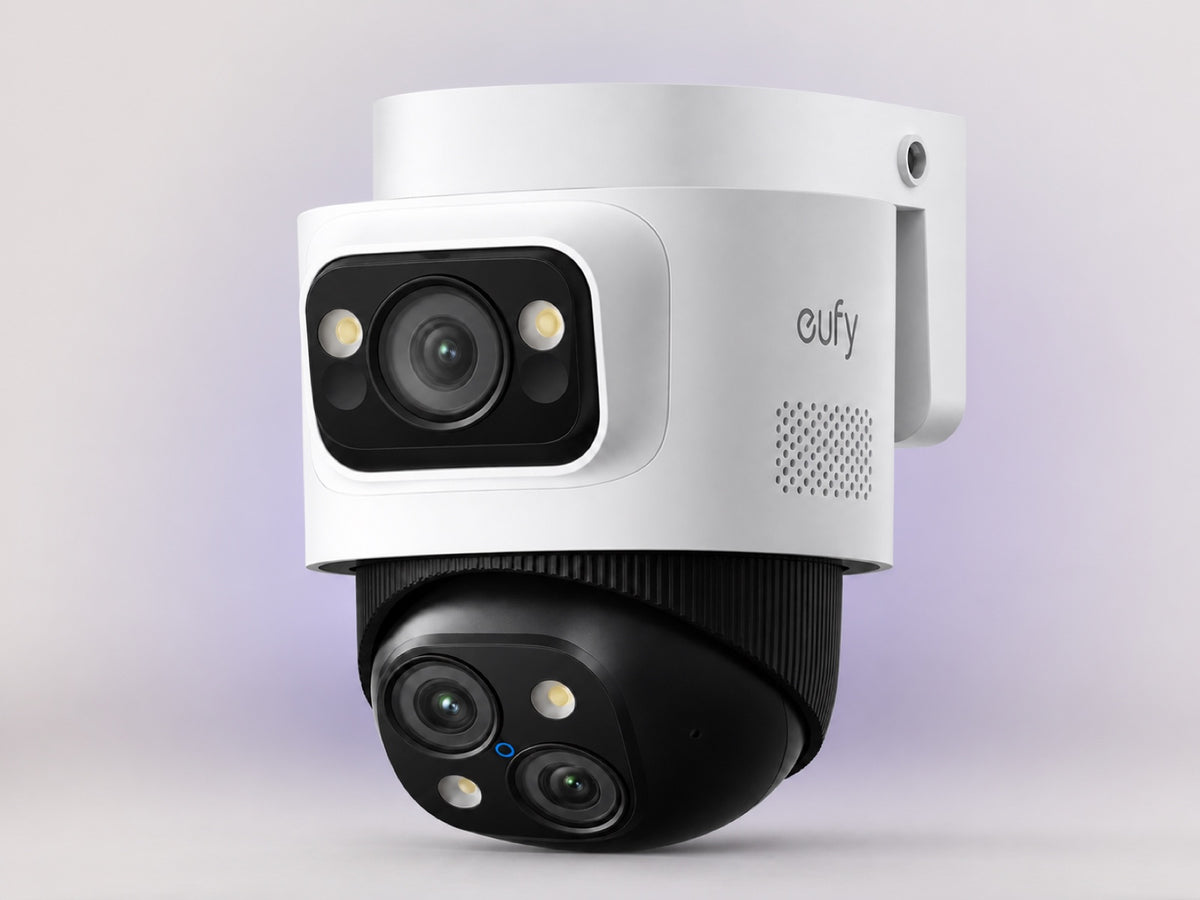

Triple-lens camera architecture
Each camera pairs an upper 4K fixed view with two lower 2K PTZ views, preserving context while supporting closer inspection.
Three coordinated views per camera
Each PoE Cam S4 combines one 8 MP fixed view with two 4 MP PTZ views. The 16 MP wording is aggregate, not one sensor.
Movement and zoom with clear limits
Pan reaches 360° horizontally, tilt spans 0–70°, and zoom is up to 8× hybrid—not 8× optical.
Detection, tracking and search stay qualified
Local detection, keyword search and cross-camera tracking are supported; performance depends on scene conditions, placement and visibility.
Choose the night mode for the scene
Starlight color, spotlight color and infrared modes offer different low-light approaches, alongside two-way audio with AI noise reduction.
Record continuously to local storage
The NVR supports 24/7 local recording and H.265 encoding on its preinstalled mechanical hard drive.
Use the viewing path that fits the moment
View through the eufy app, an HDMI-connected local monitor or the supported web portal. Networked access requires compatible customer infrastructure.
INSTALLATION & COVERAGE
Build the route, recorder and viewing plan first
This is practical pre-purchase guidance, not a site-specific engineering design. It surfaces infrastructure decisions that can change placement, cable choice and total project scope.
SITE-PLAN CONCEPT
Eight camera jobs, eight measured Ethernet routes
Assign every camera a defined zone, measure the complete path and bring each PoE route back to the recorder location. Eight 18 m Cat5 leads are included.
- Camera zone 1
- Camera zone 2
- Camera zone 3
- Camera zone 4
Indoor recorder location
Power · LAN · ventilation
-
CLEARVERO PLANNING
Give every camera a specific job
List the entrances, routes, boundaries and activity zones that matter before deciding where Ethernet should terminate.
-
VERIFIED CABLING
Measure all eight Ethernet routes
Eight 18 m Cat5 camera cables are included. Direct runs are documented up to 100 m; eufy prefers Cat6 for extensions.
-
RECORDER LOCATION
Choose a protected NVR location
Plan power, LAN access, cable entry and optional HDMI viewing without extending the cameras’ IP65 rating to the recorder.
-
NETWORK REQUIRED
Confirm the viewing network
The cameras use PoE Ethernet. App and web viewing require a compatible router, network service and eufy account.
-
CAPACITY BOUNDARY
Treat expansion as a topology decision
Eight S4 cameras use 16 streams. A compatible switch may support other layouts, but no extra S4 camera capacity should be assumed.
BUYING GUIDANCE
A strong fit starts with the right infrastructure
Use these signals to decide whether this exact configuration matches the site before installation work begins.
You can route Ethernet to each camera
The included cameras rely on wired PoE for power and data, not wire-free placement.
You want continuous local recording
The NVR and installed 8 TB hard drive support a local 24/7 recording workflow.
Eight camera positions match the site plan
This exact configuration starts with eight PoE Cam S4 units and one central recorder.
Routes exceed the included cable lengths
Plan suitable additional cabling and verify the complete topology before mounting.
You expect more than eight S4 cameras
Each S4 camera uses two streams, so this configuration already uses the available 16-stream capacity.
HomeBase integration is essential
This PoE NVR system does not work with HomeBase 2 or HomeBase 3.
Third-party cameras are required
Third-party cameras are not supported by this PoE NVR system.
VERIFIED SPECIFICATIONS
Technical detail, grouped by the component it describes
Only verified product and component facts appear here. Unresolved temperatures, weights, materials and kit-internal suffixes are deliberately omitted.
Camera imaging
- Included cameras
- Eight PoE Cam S4 units
- Per-camera architecture
- One 8 MP/4K fixed view plus two 4 MP/2K PTZ views
- Aggregate imaging
- 16 MP across the three views; not one 16 MP sensor
- Camera dimensions
- 164 × 147 × 92 mm
- Fixed role
- Wider scene context
- PTZ role
- Closer movable perspectives
Movement, zoom & tracking
- Pan
- 360° horizontal
- Tilt
- 0–70° vertical
- Zoom
- Up to 8× hybrid; not 8× optical
- Tracking
- Auto-framing and group tracking
- Documented distance
- Up to 164 ft / about 50 m
- Qualification
- Placement, visibility and scene conditions apply
Local AI, night & audio
- Local AI
- 6T / 8-core agent
- Detection categories
- Person, vehicle, pet and stranger
- Video search
- Local smart keyword video search
- Tracking
- Cross-camera tracking
- Night modes
- Starlight color, spotlight color and infrared
- Audio
- Full-duplex two-way audio with AI noise reduction
NVR & storage
- Recorder
- Network Video Recorder S4, T8N00 family
- Installed storage
- Preinstalled 8 TB mechanical hard drive
- Drive support
- One compatible user-replaceable 3.5-inch drive
- Upgrade ceiling
- Up to 16 TB
- PoE ports
- Eight built-in ports
- Recording
- 24/7 local recording with H.265 encoding documented
Network, power & viewing
- Camera transport
- PoE over Cat5 or Cat6 Ethernet
- Included camera cable
- Eight 59 ft / 18 m Cat5 leads
- Direct Ethernet run
- Up to 100 m
- PoE standard
- IEEE 802.3af/at, up to 30 W per port
- Viewing paths
- eufy app, local HDMI/monitor interface and supported web portal
- Remote dependency
- Compatible router, network service and eufy account
Capacity & compatibility boundaries
- Channel ceiling
- Up to 16 channels with a compatible topology
- S4 stream use
- Two streams per Bullet-PTZ camera
- S4 camera ceiling
- Up to eight Bullet-PTZ cameras
- HomeBase
- Not compatible with HomeBase 2 or HomeBase 3
- Third-party cameras
- Not supported
- Wireless module
- T8709 and separate camera power are not included; verify current compatibility and availability
WHAT ARRIVES
Included with this exact configuration
Verified quantities are stated directly. The disputed accessory-pack counts remain unstated until exact packing evidence exists.

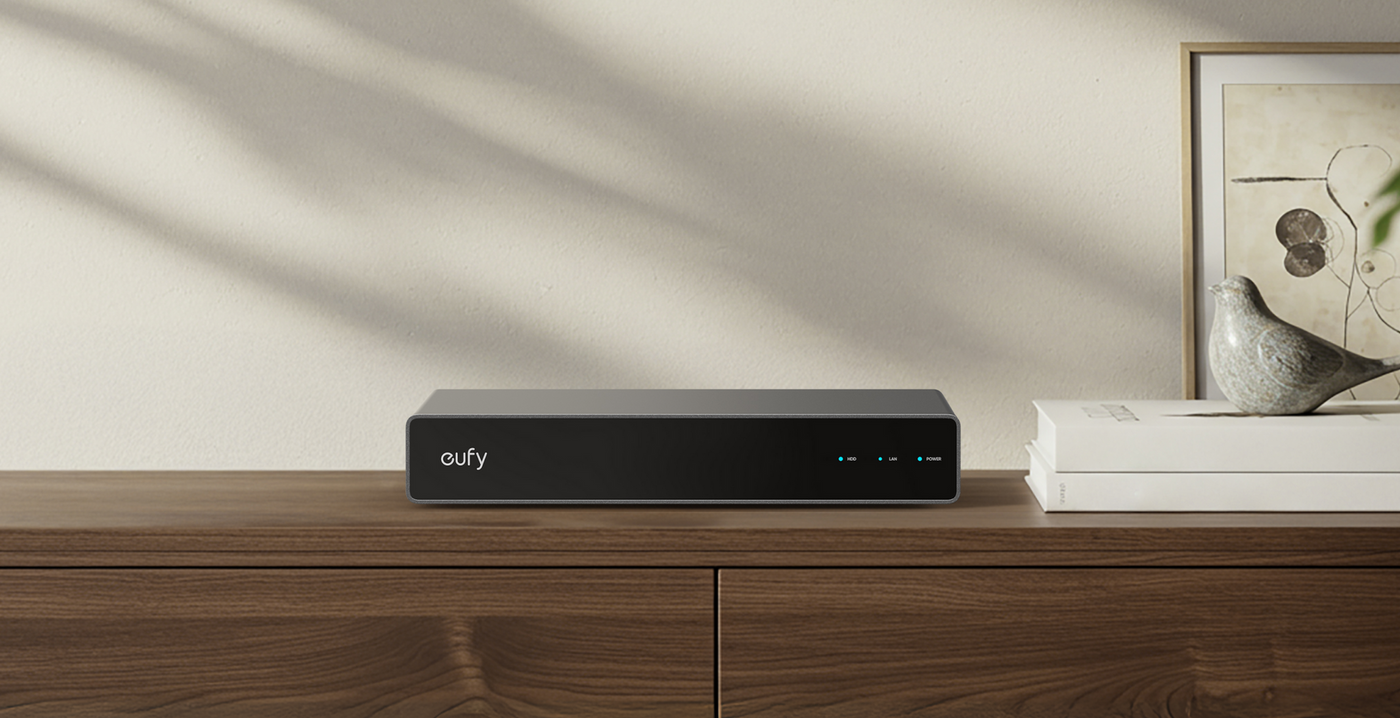

Network Video Recorder S4
T8N00-family recorder with one preinstalled 8 TB mechanical HDD.

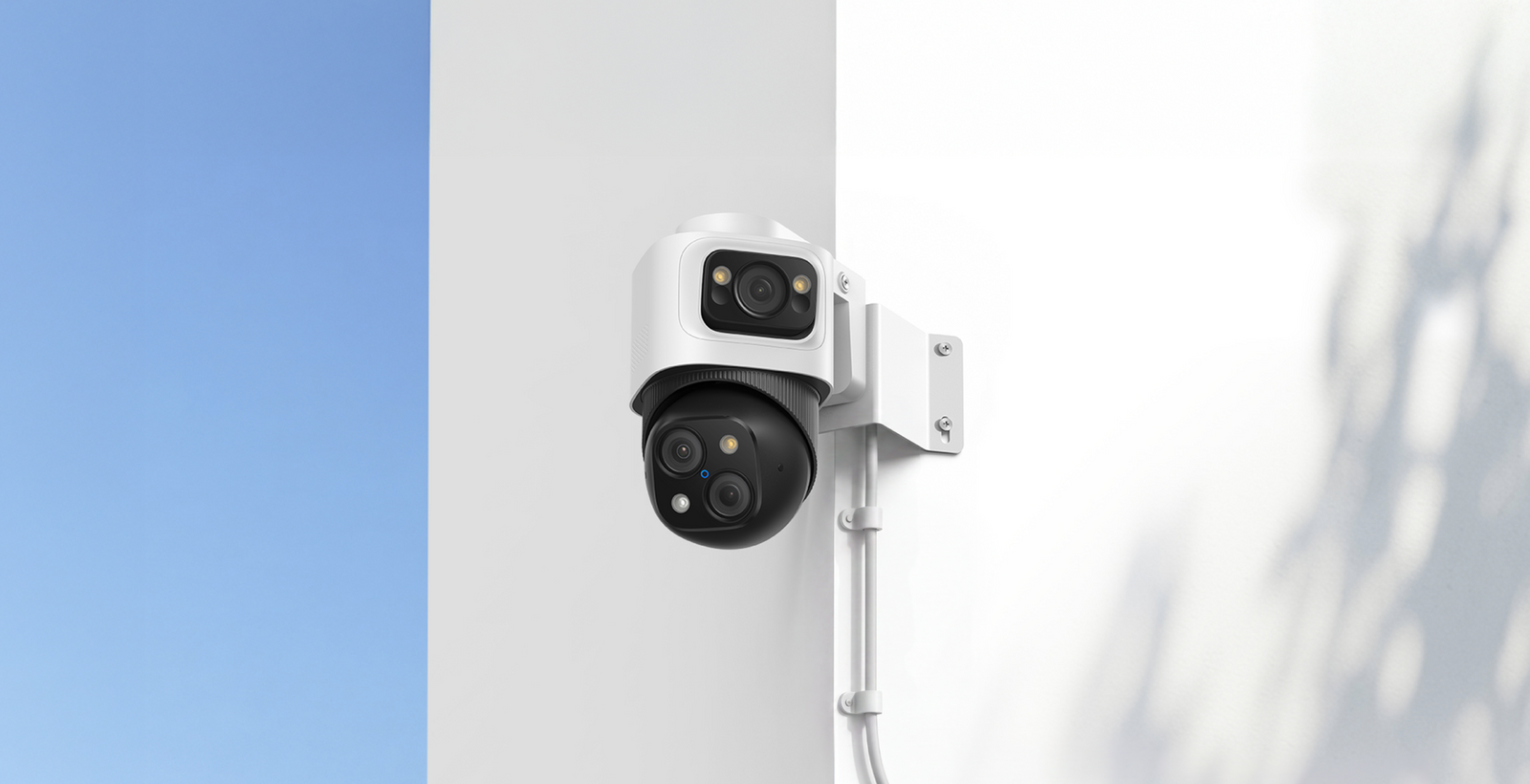

PoE Cam S4
Eight T8E00-family triple-lens PoE cameras.
Documented cables
Eight 18 m Cat5 camera cables, one 1 m Ethernet cable and one HDMI cable.
Power, input and setup items
NVR power adapter, USB mouse and Quick Start Guide.
Mounting and weatherproofing hardware
Mounting brackets, screw packs and waterproof covers are included categories. Exact pack quantities remain unconfirmed and are not stated.
WHAT IS NOT INCLUDED
Plan separately when the site requires it
These items are customer infrastructure, property-dependent options or compatibility boundaries—not missing promises.
Compatible PoE switch
Not included. Consider only for a verified topology that respects port, channel and stream limits.
Additional Ethernet cabling
Not included. Measure every route first; eufy prefers Cat6 for extensions.
Compatible storage replacement
Not included. The recorder already contains 8 TB; any future drive must be confirmed compatible.
Local monitor or TV
Not included. Add one only when the local HDMI viewing path is needed.
Router, network service and eufy account
Not included. Required for networked and remote viewing features.
T8709 eufy Wi-Fi Module
Not included. Do not plan or merchandise it until current compatibility and availability are verified.
Professional installation
Installation labor is not part of this product and should be confirmed separately if offered.
HomeBase 2 / HomeBase 3
Do not add either HomeBase model to this PoE NVR system plan.
Third-party cameras
Third-party cameras are not supported by this PoE NVR system.
BUYER FAQ
The questions worth answering before installation day
These answers focus on package contents, infrastructure, limits and compatibility—the details most likely to change a buying decision.
What exactly is included in this configuration?
You receive one NVR S4 with a preinstalled 8 TB mechanical hard drive, eight PoE Cam S4 cameras, eight 18 m camera cables, one 1 m Ethernet cable, one HDMI cable, a power adapter, USB mouse, mounting and weatherproofing hardware, and a Quick Start Guide. Exact accessory-pack counts remain unconfirmed and are not stated.
Are the included cameras wireless?
No. The eight PoE Cam S4 cameras use Ethernet for both power and data.
What should I plan before mounting?
Define each camera job, measure every Ethernet route, choose a protected recorder location with power and LAN access, and decide whether local HDMI viewing is needed.
How long are the included camera cables?
Eight 59 ft / 18 m Cat5 camera cables are included. Direct Ethernet runs are documented up to 100 m, and eufy prefers Cat6 for extensions.
Is a PoE switch required or included?
A switch is not included and is not required for the basic eight-port direct-to-NVR layout. Use one only for a verified compatible topology.
What does the triple-lens design provide?
Each camera combines one 8 MP/4K fixed overview with two 4 MP/2K PTZ views. The 16 MP wording is aggregate across the three views.
How do pan, tilt and zoom work?
The camera supports 360° horizontal pan, a 0–70° vertical range and up to 8× hybrid zoom. The hybrid figure is not 8× optical zoom.
Does tracking guarantee every event will be captured?
No. Cross-camera tracking is supported and described up to about 50 m, but actual performance depends on placement, visibility, lighting and scene conditions.
Where is video recorded?
The NVR supports 24/7 local recording and arrives with a preinstalled 8 TB mechanical hard drive. One compatible 3.5-inch drive up to 16 TB is supported.
Can I add more S4 cameras?
This exact kit already contains eight S4 cameras. Each uses two streams, so the configuration uses the NVR’s available 16 streams; no additional S4 capacity should be assumed.
Does the system work with HomeBase or third-party cameras?
No. It does not work with HomeBase 2 or HomeBase 3, and third-party cameras are not supported.
Which component has an outdoor rating?
The PoE Cam S4 enclosure is rated IP65. Do not apply that camera rating to the NVR or other infrastructure.
Do the documented local features require a subscription?
The documented local recording and AI features do not require a subscription. This is not a blanket promise about optional cloud, membership or third-party services.
What might the site require beyond the box?
Depending on the plan, you may need additional Ethernet cabling, a compatible PoE switch, a local monitor, a future storage replacement or separately confirmed installation service. Router, network service and a eufy account are customer infrastructure.
How are warranty and returns handled?
The current product warranty term is resolved from ClearVero’s centralized vendor mapping near the purchase controls. The 30-Day Money-Back Guarantee is separate; review the linked policies for applicable terms.
CONFIRM THE SYSTEM, THEN PLAN THE SITE
Ready to plan eight wired camera positions?
Choose this exact configuration when eight PoE camera positions, local 8 TB recording and one NVR match the site plan. ClearVero can help review cable routes and optional infrastructure before purchase.
- Eight PoE Cam S4 cameras
- NVR S4 with preinstalled 8 TB HDD
- Local AI and 24/7 recording
SKU E8E00129
$2,599.99 USD
Uses the selected configuration and quantity in the purchase area above.
