See the scene and the detail
The fixed view preserves broad context while the movable view follows relevant detail, reducing the need to choose one perspective at a camera position.
EUFY DUAL-NVR POE SYSTEM

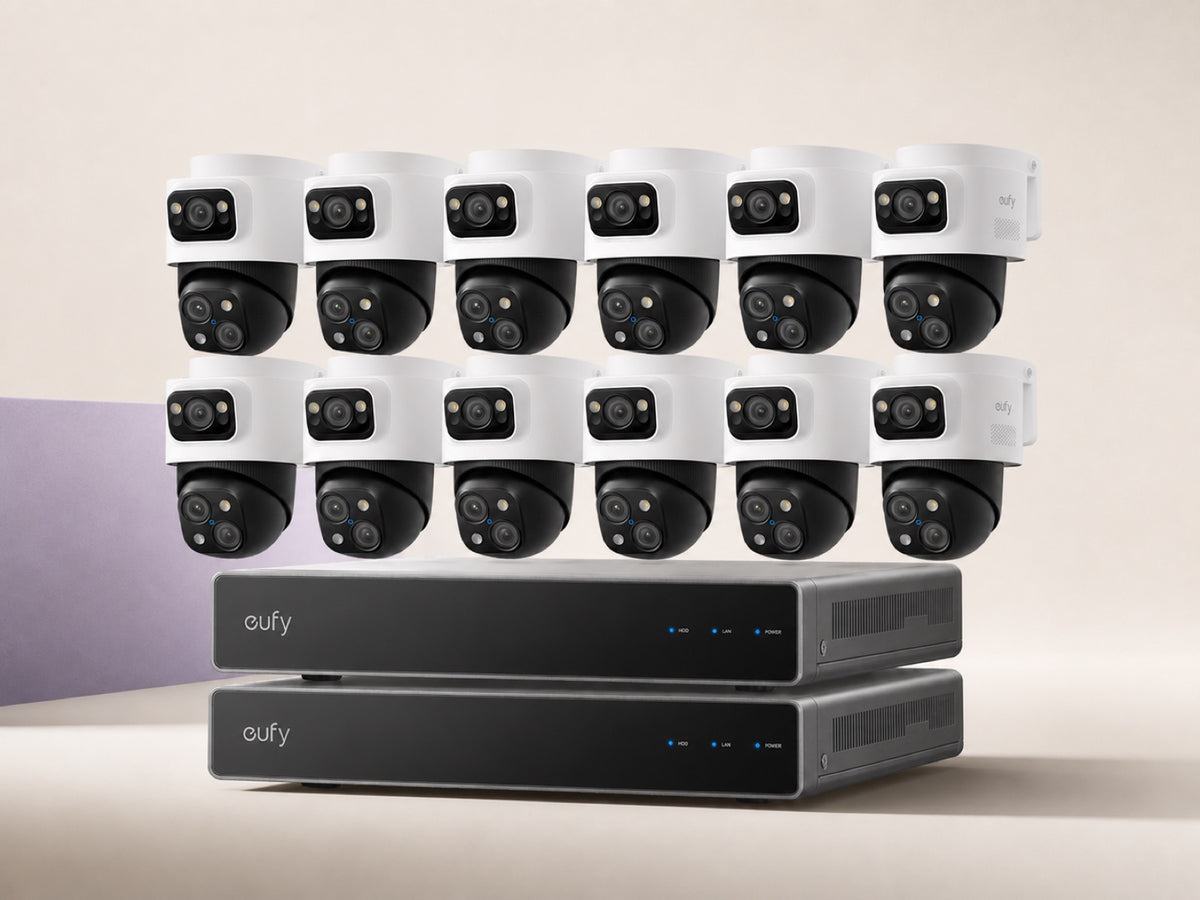

eufy Dual-NVR PoE System with 12 PoE Cam S4
Twelve triple-lens PoE Cam S4 cameras, two independent NVR S4 recorders and separate preinstalled 2TB hard drives.
- 12 PoE Cam S4 cameras
- 2 NVR S4 recorders · 4TB raw local storage
Compatible installation additions are available below.
AT A GLANCE
Product Overview
A twelve-camera wired PoE system split across two eufy NVR S4 recorders with 4 TB of raw preinstalled local storage.
-
12 × PoE Cam S4
Each 16 MP triple-lens camera combines one 4K fixed view with two 2K PTZ views.
-
2 × NVR S4
Two independent recorders divide the twelve-camera system into separate recording and management zones.
-
2 × preinstalled 2TB HDD
Each NVR includes one preinstalled 2 TB mechanical hard drive, for 4 TB raw across the two recorders.
-
Local recording · no subscription
The documented local recording and core local intelligence do not require a subscription.
-
360° tracking and color night view
Auto-framing, local recognition, full-duplex two-way audio and multiple night modes support detailed monitoring.
-
Twelve 59 ft cables included
The package includes one long Ethernet cable, mounting hardware and waterproofing accessories for every camera.
Full product details
Protect larger properties with a local, subscription-free eufy PoE system built around two Network Video Recorder S4 units and twelve PoE Cam S4 Bullet-PTZ cameras. Each 16MP triple-lens camera combines a 4K wide-angle view with dual 2K PTZ detail, 360° coverage, auto-framing, color night vision and two-way audio. The two recorders include separate preinstalled 2TB mechanical hard drives for 4TB of raw local storage across independent NVRs. Twelve 59ft/18m Ethernet cables, installation hardware for every camera, and complete power/network accessory sets for both recorders are included. Storage is upgradeable per NVR, and a compatible PoE switch can support future expansion.
WHY CHOOSE THIS DUAL-NVR SYSTEM
Broad camera coverage without giving up scene context
Twelve triple-lens cameras and two independent recorders create a substantial wired foundation for buyers who are ready to plan positions, recorder zones and Ethernet routes deliberately.
Create two deliberate recorder zones
Two independent NVR S4 units let a larger property be divided into practical areas while each recorder keeps its own local storage and management context.
Power and data share one route
A wired Ethernet route carries camera power and video together, creating a clear connection plan for every position.
Find relevant events with local intelligence
Local recognition, custom zones and search tools help narrow event review without turning the buying story into a vague AI promise.
QUALIFIED USE CASES
Think in defined zones, not a universal coverage radius
Scene geometry, mounting height, obstructions, lighting and identification distance shape real results. These examples are planning contexts, not guarantees for every property.
STRONG FIT · ESTATE ZONES

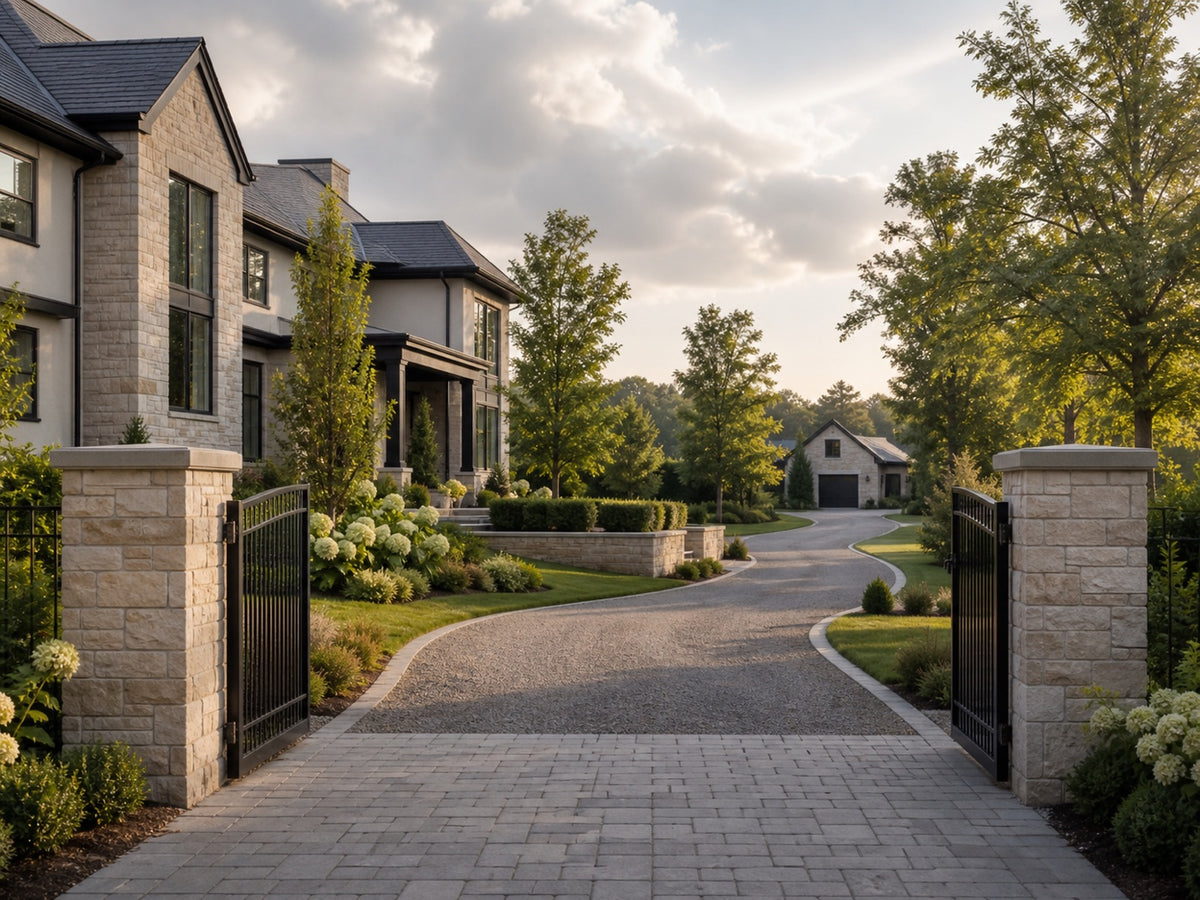

Larger residences and estates
Use defined positions around entrances, drives, outbuildings and priority approaches while protecting privacy-sensitive sightlines.
STRONG FIT · STRUCTURED SITES

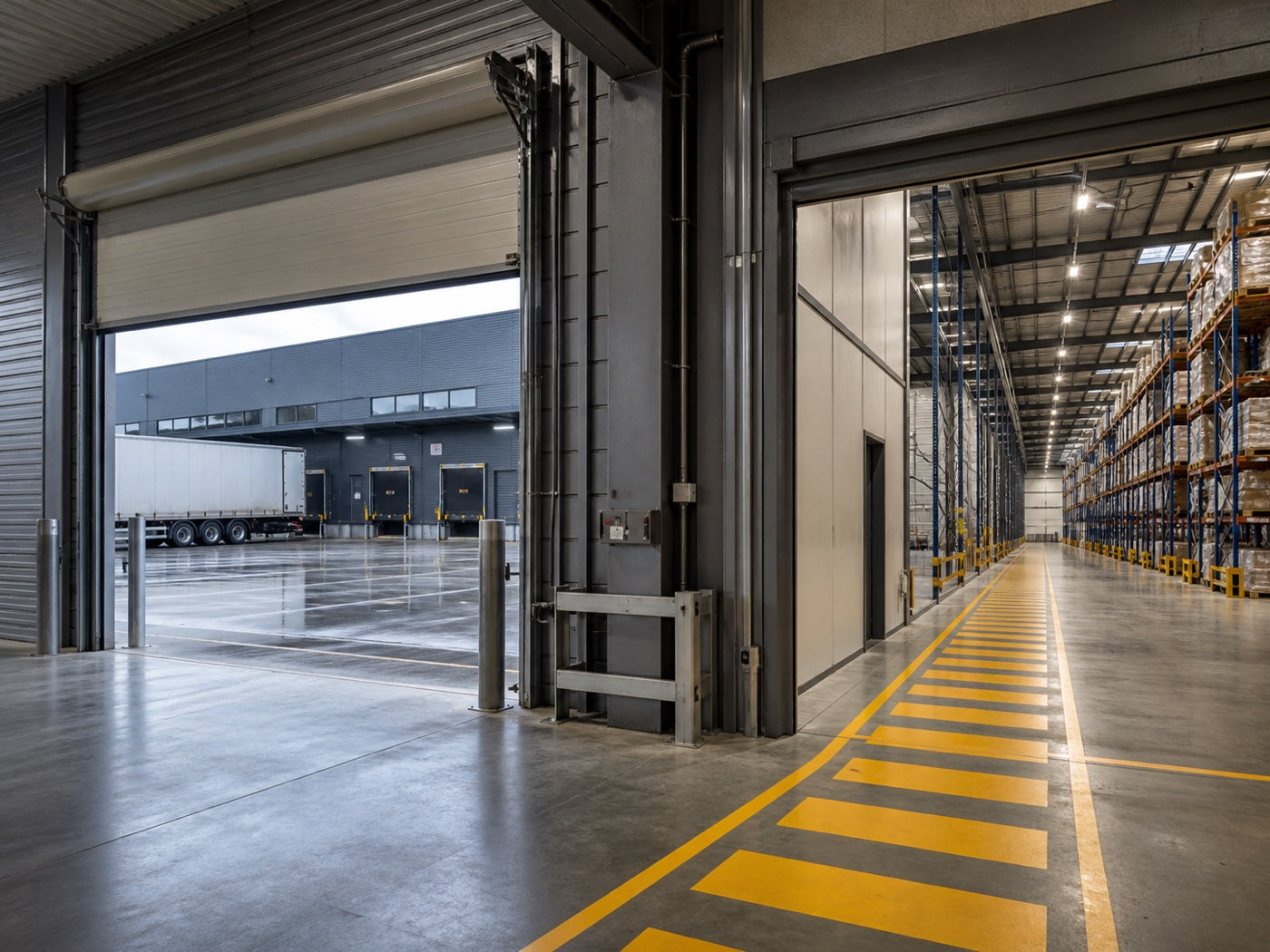

Warehouses and commercial facilities
Wired 24/7 recording and multi-camera zoning suit planned environments where mounting height, aisle occlusion, lighting and cable protection are addressed.
CONDITIONAL FIT · OPEN AREAS

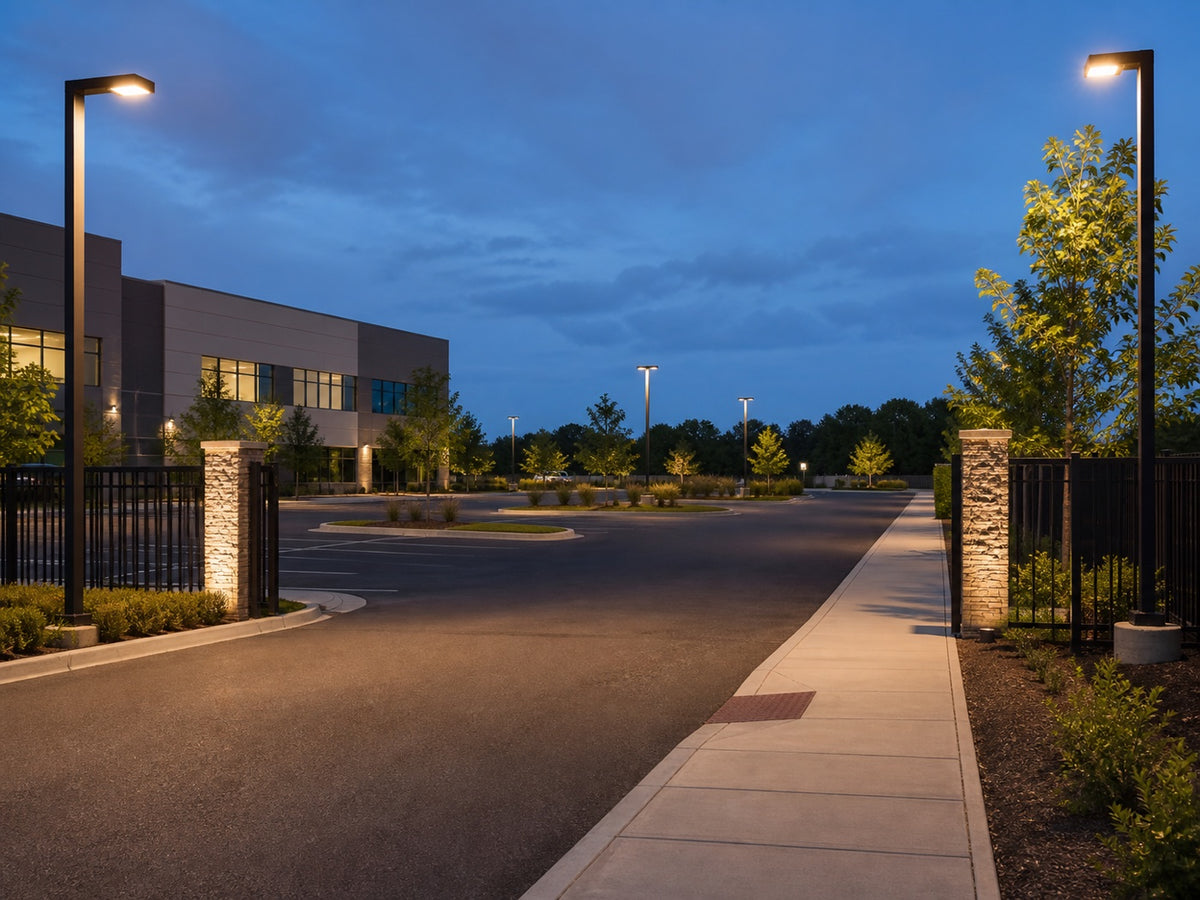

Parking and perimeter approaches
Wide fixed context and PTZ follow-up can support defined approaches. Lighting, obstructions and identification distance still determine results; plate-reading is not promised.
CONSIDER CAREFULLY · MULTI-BUILDING

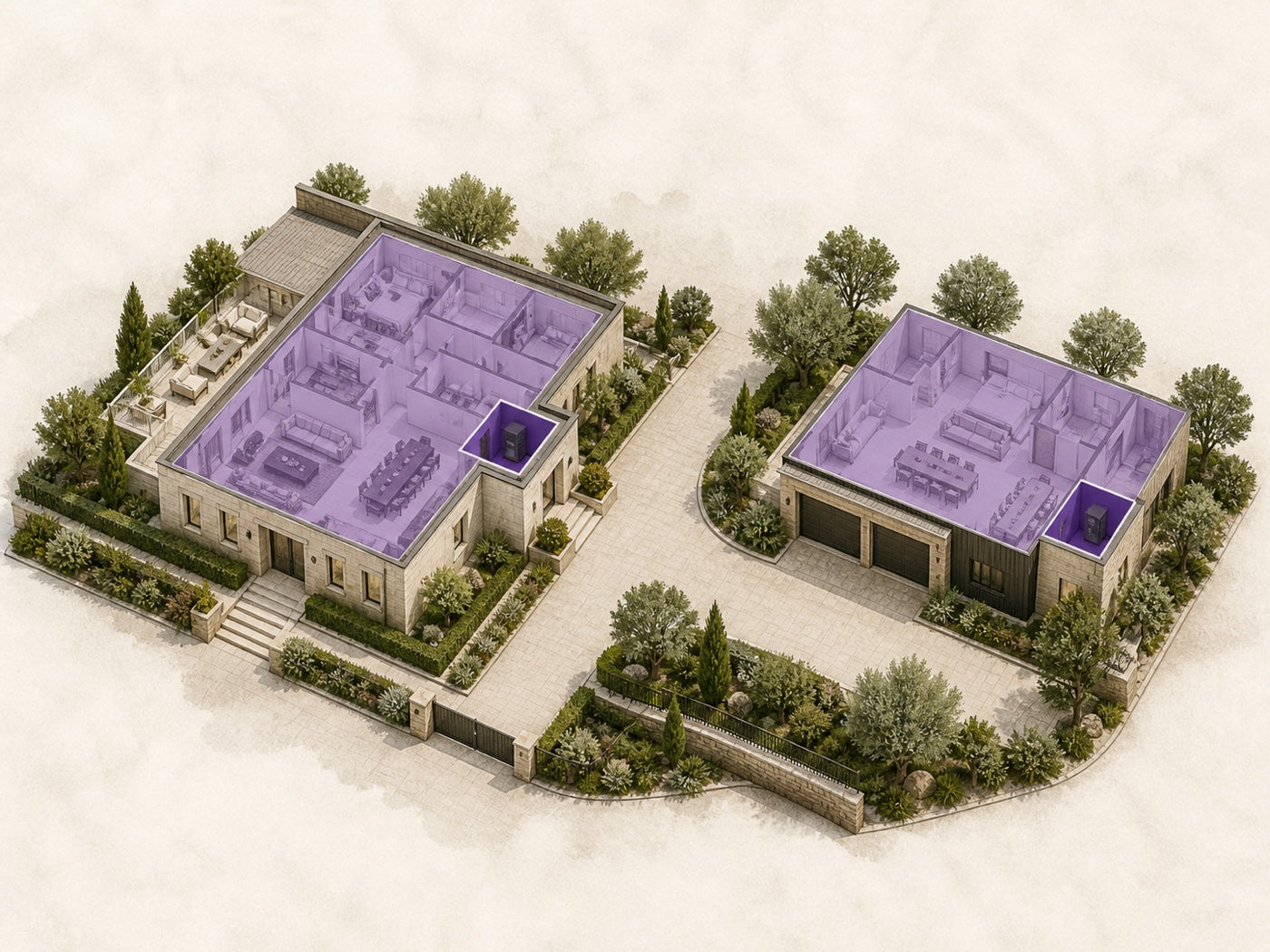

Separated buildings or distant zones
Two recorders can anchor distinct zones, but inter-building network design, surge risk, cable distance and cross-NVR tracking expectations need site-specific validation.
HOW THE SYSTEM FITS TOGETHER
Twelve PoE routes feed two independent recording zones
Each camera receives power and carries video over Ethernet. The two NVR S4 recorders store footage separately and connect to the buyer’s network for app or web access; local HDMI viewing remains a distinct option.
- PoE Cam S4 One PoE Ethernet route per camera
- 2 × NVR S4 Two independent local recording zones
- Router / LAN Buyer’s network for app and web access
- Display, app or web Local and remote viewing paths

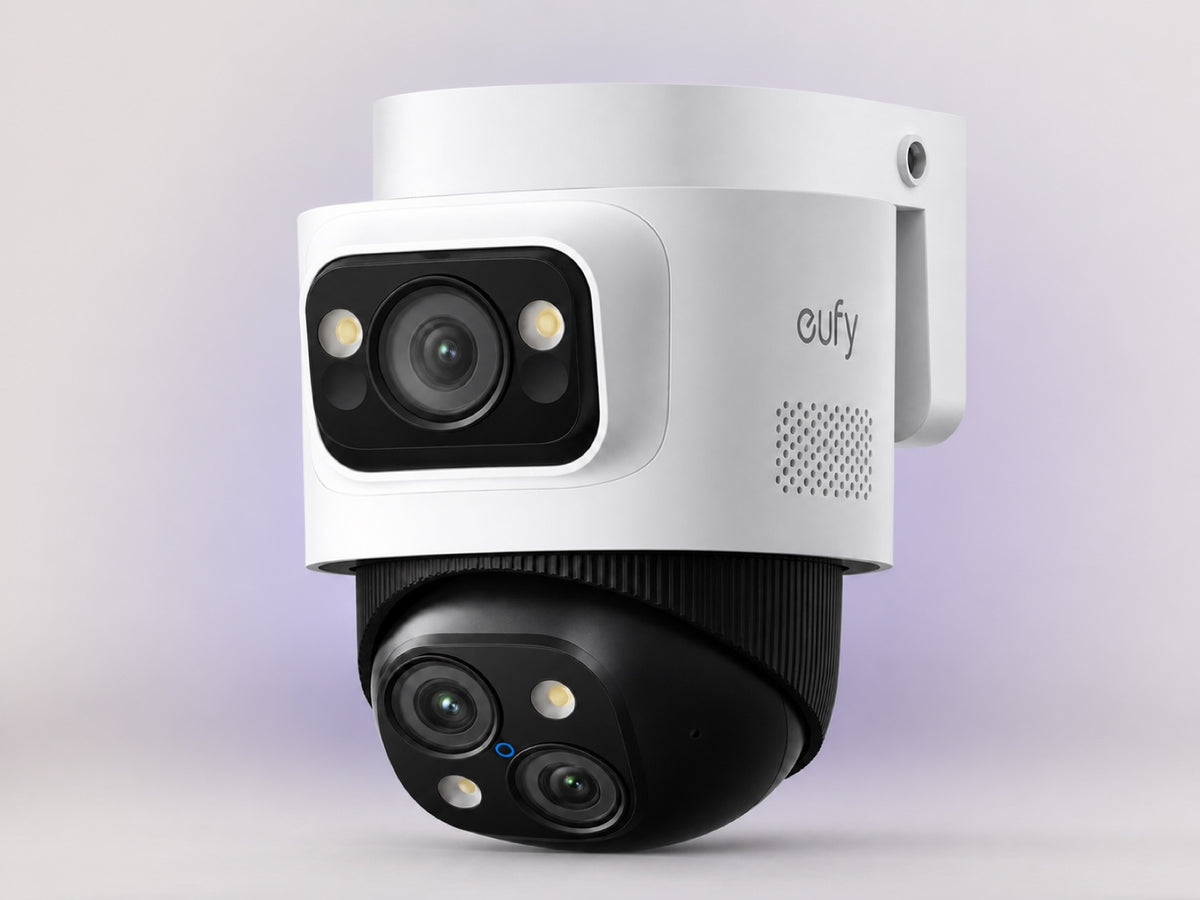

THREE-LENS CAMERA DESIGN
Fixed context and movable detail work together
Each camera combines an 8MP fixed wide-angle lens with two 4MP PTZ lenses. That is 16MP aggregate triple-lens imaging—not a single 16MP stream.
PTZ movement with measured zoom language
The PTZ assembly moves 360° horizontally and 0–70° vertically. Zoom is 8× hybrid with 3× optical—not 8× optical.
Three documented night-viewing modes
Starlight color, spotlight and infrared modes are supported, with HDR. No unsupported numeric night-distance promise is added.
Continuous local recording
The system supports configurable 24/7 recording to the included local hard drives, with local HDMI, app and web viewing paths.
Recognition and search with boundaries
Person, vehicle, pet and stranger recognition, custom zones, alerts and Smart Video Search are documented. No absolute security or privacy claim is made.
See, hear and respond
Two-way audio is supported through the camera’s microphone and speaker for compatible live-view workflows.
Outdoor camera housing
PoE Cam S4 is IP65 rated. The recorders still belong indoors in secure, ventilated and serviceable locations.
INSTALLATION & COVERAGE PLANNING
Plan two recorder zones before the first cable is pulled
PoE combines power and data on one Ethernet route per camera, but a twelve-position system still needs deliberate zoning, safe mounting, weatherproof terminations, network planning and suitable indoor locations for both recorders.
ClearVero planning note
Map two recorder zones
A balanced six-camera-per-recorder plan is a practical starting point, not a manufacturer-declared allocation. Match each position to the recorder it will use.
Manufacturer guidance
Route one PoE path per camera
Each camera uses Ethernet for power and data. The bundle includes one 18m/59ft cable per camera; documented direct PoE segments can reach up to 100m when requirements are met.
Manufacturer guidance
Respect ports and channel load
Each NVR has eight PoE ports and supports up to 16 video channels with a compatible PoE switch. Each PoE Cam S4 consumes two real-time channels.
ClearVero planning note
Give both NVRs suitable indoor positions
Use secure, ventilated and serviceable locations with power, network access and clear labels for the recorder, camera and cable assigned to each zone.
ClearVero planning note
Plan mounting and weather seals
Confirm height, safe access, drilling surfaces, conduit, connector protection and sightlines before mounting. IP65 does not replace correct cable termination.
ClearVero planning note
Decide on protection and professional help
UPS and surge protection can improve resilience but are not included. Use a qualified installer for high, long-run, commercial or multi-building work.
BUYING GUIDANCE
Strong fit—or consider another approach
This is a substantial wired platform, not a small plug-and-play Wi-Fi kit. Use these boundaries to decide whether the installation model matches the property and the buyer’s expectations.
Strong fit
The property supports structured Ethernet
Twelve planned camera routes, two indoor recorder positions and a practical network path are acceptable parts of the project.
Strong fit
Local recording is the priority
The buyer values two independently stored local archives and understands that retention depends on settings, activity and drive capacity.
Strong fit
Coverage can be designed as zones
The site has identifiable entrances, approaches, work areas or perimeters instead of expecting one universal coverage radius.
Consider another approach
You want a quick wireless installation
A smaller Wi-Fi-first system may suit better when new Ethernet routes, drilling and recorder placement are not practical.
Consider another approach
You need enterprise VMS scale
Campuses needing centralized multi-site administration, enterprise integrations or validated cross-NVR handoff should compare dedicated commercial VMS platforms.
Consider another approach
You must reuse third-party PoE cameras
NVR S4 is documented for compatible eufy cameras; third-party PoE camera support is not verified.
PURCHASE-RELEVANT SPECIFICATIONS
Technical details, grouped for a real buying decision
Use the editorial sections for meaning and this reference for exact values. The entries below are limited to verified facts for the twelve-camera, two-recorder configuration.
System
- Configuration
- 12 × PoE Cam S4 + 2 × NVR S4
- Architecture
- Two independent wired PoE recorder zones
- Recording
- Configurable 24/7 local recording
- Viewing
- Local HDMI, eufy app and web
- Warranty
- Centralized ClearVero eufy term
Camera imaging
- Imaging
- 8MP fixed + two 4MP PTZ lenses
- Aggregate
- 16MP across three lenses
- Frame rate
- 20 fps for fixed and PTZ
- Fixed field of view
- 123.3° diagonal; 105.4° horizontal
- Lens apertures
- F1.6; 2.8mm fixed / 2.8mm + 8mm PTZ
Camera operation
- PTZ movement
- 360° horizontal; 0–70° vertical
- Zoom
- 8× hybrid; 3× optical
- Recognition
- Person, vehicle, pet, stranger
- Night modes
- Starlight color, spotlight, infrared
- Housing
- IP65; 164 × 147 × 92mm
NVR, storage & network
- PoE ports
- 8 per NVR
- Channel capacity
- Up to 16 per NVR with compatible switch
- Included storage
- 1 × preinstalled 2TB HDD per NVR
- Drive support
- 1 replaceable 3.5-inch bay; up to 16TB per NVR
- Camera limit
- Up to 8 PoE Cam S4 per NVR; 2 channels each
WHAT’S INCLUDED
What’s included in the resolved material BOM
The bundle is resolved from its exact constituent SKUs. Material hardware and accessory quantities are stated; paper-insert and individual fastener counts are intentionally not invented.
PoE Cam S4 Bullet-PTZ
Triple-lens outdoor cameras; one planned PoE route per camera.
Network Video Recorder S4
Independent recorders with eight PoE ports each.
Preinstalled mechanical hard drives
One separate drive in each NVR; 4TB raw total across both recorders.
59ft / 18m camera Ethernet cables
One long PoE camera cable per included camera.
Recorder power, network and display accessories
One power adapter, AC lead, 1m Ethernet cable, HDMI cable and USB mouse per NVR.
Camera mounting and waterproofing hardware
Bracket, screw pack, waterproof cover pack and positioning sticker for each camera.
Quick-start documentation
Paper-insert quantity is intentionally not stated.
PLAN THE REST OF THE INSTALLATION
What’s not included—and which additions are optional
The core camera, recorder, storage, power, network and mounting sets are complete. The items below depend on how the property will be viewed, networked, protected or expanded.
HDMI display or monitor
Needed for local GUI viewing; app and web viewing are separate supported paths.
Router and broader network infrastructure
Required for networked app/web access and updates; not part of the bundle.
Extra cabling, conduit and junction materials
Route length, surfaces, building separation and local requirements determine the plan.
Compatible IEEE 802.3af/at PoE switch
Not required merely to run the included twelve cameras when distributed across both NVRs.
Replacement storage drive
Each NVR supports a compatible replacement drive up to 16TB; this is not an additive second bay.
eufy T8709 Wi-Fi module
Required for supported wireless eufy devices, which also need separate power. It is not included.
UPS and surge protection
ClearVero resilience guidance for recorders and network equipment; not a manufacturer-included component.
Professional installation
Recommended for high, long-run, commercial or multi-building installations; not included in the product price.
QUESTIONS, ANSWERED
The questions worth settling before installation day
Straight answers about the two-recorder architecture, storage, cabling, compatibility, installation boundaries and package contents.
What exactly comes with the system?
Two NVR S4 recorders with separate preinstalled 2TB drives, twelve PoE Cam S4 cameras, twelve 18m camera cables, complete camera mounting and weatherproofing hardware, and a complete power, network, HDMI and USB-mouse accessory set for each recorder.
Is the included storage one shared 4TB pool?
No. Each NVR has its own preinstalled 2TB mechanical hard drive. The 4TB figure is the raw total across two independent recorders, not a shared pool or RAID claim.
Are both recorders supplied with power and network accessories?
Yes. The resolved material BOM provides one power adapter, AC lead, 1m Ethernet cable, HDMI cable and USB mouse for each NVR.
Does every camera include a long cable and mounting hardware?
Yes. The resolved BOM provides one 18m/59ft Ethernet cable and one mounting and weatherproofing installation set for each of the twelve cameras.
Is a PoE switch required for the included twelve cameras?
No—not solely for the included system when the cameras are distributed across the two NVRs. A compatible PoE switch is an optional expansion or alternate-topology component.
How should the cameras be divided between the two recorders?
A balanced six-camera-per-recorder layout is a practical ClearVero starting point, not a manufacturer-declared allocation. Each NVR can handle up to eight PoE Cam S4 cameras because each camera uses two of its supported real-time channels.
How far can an Ethernet camera run be?
The documented direct PoE limit is up to 100m when cable and power requirements are met. Longer, inter-building or surge-exposed paths need compliant network design rather than an improvised extension.
Does local recording require the internet?
Local HDD recording and local HDMI viewing are distinct local functions. Network and internet access are used for app or web viewing, remote features and updates.
Can I use third-party PoE cameras?
No verified support path exists for third-party PoE cameras. NVR S4 is documented for compatible eufy cameras.
Can supported wireless eufy devices be added?
Supported wireless eufy devices require the separate T8709 Wi-Fi module and separate device power. The module and wireless-device power supplies are not included in this bundle.
Will live tracking hand off between the two NVRs?
Cross-camera tracking is documented within a supported S4/NVR setup, but cross-recorder handoff between two separate NVRs has not been verified. Do not plan the site around guaranteed cross-NVR continuity.
Is the camera’s 8× zoom fully optical?
No. The verified wording is 8× hybrid or auto zoom with 3× optical zoom.
What night modes and weather protection are documented?
Starlight color, spotlight and infrared night modes are documented, and the camera housing is rated IP65. No unsupported numeric night-distance promise is made; the NVRs should remain indoors.
Is a monitor included?
No. A compatible HDMI display is buyer-supplied if local GUI viewing is wanted. The system also supports eufy app and web viewing.
Can storage be upgraded?
Yes. Each NVR has one replaceable 3.5-inch hard-drive bay and supports a compatible replacement drive up to 16TB. This replaces the drive in that recorder; it does not add a second internal bay.
Will every constituent arrive in one carton?
One-carton delivery is not guaranteed. Multi-item orders may be dispatched separately; completeness should be judged against the resolved material BOM, not the number of parcels or tracking numbers.
Is professional installation included?
No. Property-specific cable routing, conduit, mounting and installation labor are separate. A qualified installer is sensible for high, long-run, commercial or multi-building work.
What warranty and return terms apply?
The customer-visible warranty term is supplied by ClearVero’s centralized product-warranty mapping and remains separate from the 30-Day Money-Back Guarantee. Review the linked policies near the purchase controls for current terms.
PLAN THE TWO-ZONE SYSTEM WITH CONFIDENCE
Ready to turn twelve camera positions into a deliberate coverage plan?
Review the two recorder zones, cable routes, local display and network access, then use the secure Shopify form above. ClearVero can help confirm compatibility before you order.
- Core hardware and local storage included
- Camera cabling and installation hardware included
- Site-specific network, display and installation supplied separately
SKU BUNDLE-E8E00121-1-T8E00121-8-T8N00141-1
$4,639.99 USD
