See useful detail before you mount
4K capture and a 5× motorized optical zoom help tune each fixed bullet camera to the scene that matters.
LOREX CONNECT X SERIES · WIRED 4K SECURITY
Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Bullet Security Cameras - 2TB
Focused coverage with maximum room to expand
Start with 2 X3 cameras for priority areas while keeping 6 of the 8 recorder channels available for compatible future cameras.
- Black • 2 Cameras • 2TB
- 8-channel recorder; camera Ethernet cables not included
AT A GLANCE
Product Overview
A wired 4K X3 camera system with an 8-channel NVR and preinstalled 2 TB drive. Choose the camera count for your initial deployment.
-
2 X3 4K PoE Bullet Cameras
6 recorder channels remain available for compatible future cameras. Check compatibility, PoE power budget, storage needs, and cable routes before adding cameras.
-
5× optical zoom
Motorized varifocal optics narrow the view for closer detail without moving the camera housing.
-
Preinstalled 2 TB hard drive
The recorder arrives with one 2 TB drive for local continuous, motion, or AI-triggered recording.
-
Eight PoE camera channels
Eight built-in PoE ports provide camera power and data connections within a 100 W total power budget.
-
Event detection
Person, vehicle, intrusion, loitering, line-crossing and people-counting modes help you find relevant activity. Available settings depend on the recorder and channel configuration.
-
Plan camera cabling separately
Camera Ethernet/PoE cables are not included; measure each route and select suitable installation cable.
Full product details
The Lorex Connect X Series 4K 8-Channel Wired NVR System with X3 Bullet Security Cameras - 2TB is a brand-new wired PoE surveillance system containing one black RNE01P-82B-AB1 XC 4K 8-channel NVR with a preinstalled 2TB hard drive and your selected 2, 4, 6, or 8 X3 4K PoE bullet cameras with motorized varifocal lenses. Choose Black cameras (CNE01P-2BB-AB1) or White cameras (CNE01P-2BW-AB1); camera housings and attached mounting bases match the selected finish, while the NVR remains black in every configuration. Camera Ethernet/PoE cables are not included.
- 4K detail and adjustable coverage: Each X3 camera records up to 3840 × 2160 and uses a 2.7–13.5 mm motorized varifocal lens with 5× optical zoom.
- Night monitoring: Color Night Vision is supported when ambient light is sufficient, with infrared illumination rated up to 131 ft / 40 m in total darkness under ideal conditions.
- Detection and deterrence: Supported tools include person and vehicle detection, intrusion, loitering, wrong-way and unauthorized-parking events, line crossing, people counting, warning light, siren, prerecorded messages, and two-way audio. Features can require compatible firmware, placement, configuration, and lawful audio consent.
- Local recording and expansion: The 8-channel NVR supports continuous, motion, and AI recording to the included 2TB drive. Its single SATA bay supports up to 12TB total storage.
- Remote access and compatibility: Lorex Connect supports remote viewing and alerts through a customer-supplied router and internet connection. The system supports ONVIF Profiles G, M, S, and T plus RTSP; advanced Lorex features may be limited with third-party cameras.
- Outdoor-rated cameras: The aluminum-alloy camera housing is IP66 rated. It is not submersible, and sheltered installation is recommended.
What’s included

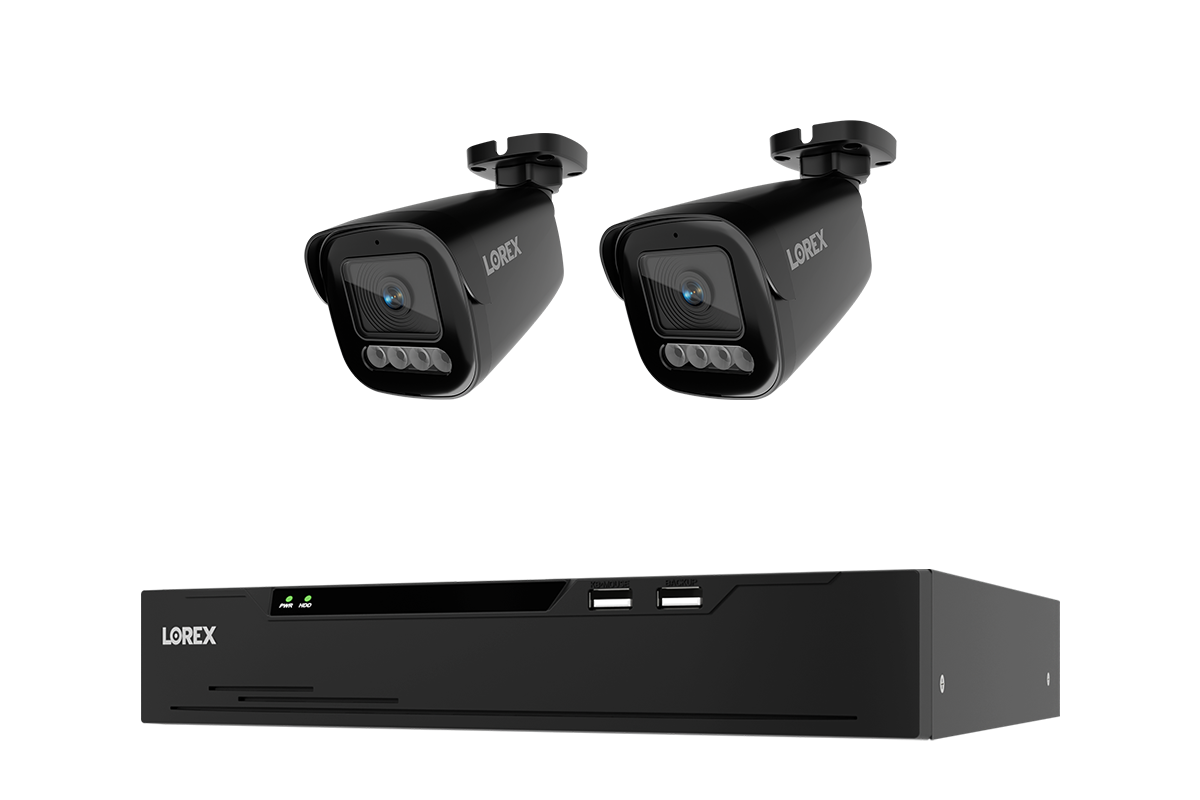

One RNE01P-82B-AB1 XC 4K 8-channel NVR with a preinstalled 2TB hard drive and the selected quantity of 2, 4, 6, or 8 X3 4K PoE bullet cameras in Black (CNE01P-2BB-AB1) or White (CNE01P-2BW-AB1). Included accessories comprise the NVR power cable, HDMI cable, USB mouse, alarm terminal blocks, HDD screws and adhesive foam pads, plus camera mounting hardware, mounting template, Allen key, alarm terminal connector, and weather-resistant RJ45 gland. Accessory quantities may depend on individual component packaging.
Plan separately
Camera Ethernet/PoE cables, microSD cards, a router, and professional installation are not included. A compatible monitor or TV is required for local display and setup, and site conditions may require additional mounting, weatherproofing, network, or power materials. Optional microSD recording supports up to 1TB per camera and operates independently of NVR recording.
WHY THIS CONFIGURATION
Choose how much to install now
Choose 2 cameras when you want to secure priority viewpoints now while preserving the most flexibility for compatible future cameras.
Keep recording local
The 8-channel NVR stores video on its preinstalled 2 TB hard drive and supports continuous, motion, or AI-triggered recording.
Plan for changing light
Color Night Vision depends on ambient light; in darkness, infrared reaches up to 131 ft / 40 m under ideal conditions.
Know your recorder capacity
6 recorder channels remain available for compatible future cameras. Check compatibility, PoE power budget, storage needs, and cable routes before adding cameras.
WHERE IT MAY FIT
Choose the scene before choosing the camera position
These examples describe planning contexts, not universal coverage promises. Final performance depends on placement, lighting, distance, obstructions, and configuration.
HOME PERIMETER
Priority exterior approaches
Assign each camera to an entrance, drive lane, or other defined exterior view where a wired route is practical.
SMALL BUSINESS
Entry and parking-area awareness
Configure intrusion, loitering, unauthorized-parking, line-crossing and people-counting modes for the areas you monitor. Available settings depend on the recorder and channel configuration; placement and scene conditions affect results.
DEPLOYMENT PLANNING
Match the camera count to your priorities
Decide which viewpoints need a camera at purchase, then check the recorder channels available for later additions.
HOW THE SYSTEM WORKS
From PoE camera views to local recording and everyday access
Each camera connects by Ethernet to the recorder for power and data. The NVR records locally and provides local or networked viewing paths.
- Black X3 4K cameras Fixed bullet cameras capture the planned views.
- Customer-planned Ethernet Each route carries camera power and data.
- 8-channel XC recorder Eight PoE ports and a 100 W total PoE budget.
- Local and remote viewing Use HDMI/VGA locally or Lorex Connect remotely.
One lens, an adjustable view
The motorized varifocal lens changes focal length within 2.7–13.5 mm while the mounted camera housing remains fixed.
8 MP image capture
Each X3 camera records up to 3840 × 2160 at 25 fps. Adjust framing with its motorized varifocal lens while the mounted housing stays in position.
Motorized optical zoom
The 2.7–13.5 mm f/1.6 varifocal lens adjusts its field of view remotely; this is lens adjustment, not camera pan or tilt.
Event filtering and analytics
Person, vehicle, intrusion, loitering, wrong-way, unauthorized-parking, line-crossing, and people-counting modes require appropriate setup.
Two-way talk and deterrence
Built-in audio, warning light, siren, and prerecorded messages add response options. Follow local audio-recording and consent laws.
Night operation with conditions
Infrared illumination reaches up to 131 ft / 40 m under ideal conditions; color night imagery requires sufficient ambient light.
Network integration
The NVR supports ONVIF Profiles G, M, S, and T plus RTSP, while advanced features may be limited with third-party cameras.
INSTALLATION & COVERAGE
Build the cable, placement, and viewing plan first
This is pre-purchase guidance, not a site-specific engineering design. Layout, distances, surfaces, light, weather exposure, and local rules can change the installation.
SITE-PLAN CONCEPT
2 camera jobs, 2 measured Ethernet routes
Bring each PoE route back to one indoor recorder location. Camera cable is not supplied; extended PoE can reach up to 250 m at 10 Mbps only under specified conditions.
- Camera zone 1
- Camera zone 2
Indoor recorder location
Power · LAN · ventilation
-
CONFIGURATION FACT
Define 2 camera jobs
Plan 2 camera mounting positions and 2 corresponding customer-supplied Ethernet runs. Camera cables are not included. Assign each camera a priority view before drilling or buying route materials.
-
CABLES EXCLUDED
Measure every Ethernet route
Camera Ethernet/PoE cables are not included. Select suitable cable and weather-entry protection for each measured route.
-
INDOOR EQUIPMENT
Choose the recorder location
Plan an indoor position with ventilation, surge-protected power, LAN access, and optional HDMI or VGA access to a customer-supplied display.
-
REMOTE ACCESS
Prepare the network path
Connect the recorder to a router and internet service for remote access. For 4K viewing, Lorex recommends at least 6 Mbps upload per 4K channel and 24 Mbps for the system.
-
SITE GUIDANCE
Confirm mounting and weather exposure
The aluminum cameras are IP66, not submersible. A sheltered mounting position and site-appropriate fasteners remain prudent.
BUYING GUIDANCE
A strong fit starts with the right infrastructure
Use these signals to decide whether the selected 2-camera configuration matches your initial deployment plan.
You can route Ethernet to every camera
The cameras use wired PoE for power and data.
You want local recorder storage
The preinstalled 2 TB drive supports an NVR-centered recording workflow.
Fixed bullet views match the plan
The lens can zoom optically, but the mounted camera does not pan or tilt.
You expected camera cables in the box
Camera Ethernet/PoE cables are excluded from this configuration and must be planned separately.
Your planned viewpoints exceed the selected count
Compare the 2-, 4-, 6-, and 8-camera choices against your installation plan. This recorder supports at most eight connected cameras.
Advanced third-party features are essential
ONVIF and RTSP support do not guarantee every analytics, audio, or configuration feature with third-party cameras.
SPECIFICATIONS
Technical detail, grouped by the component it describes
Compare the X3 camera specifications with the XC recorder and installed drive below. Plan camera cabling, network equipment, and installation materials for your property separately.
X3 camera imaging
- Sensor
- 8 MP, 1/2.7-inch CMOS
- Maximum video
- 3840 × 2160 (4K) at 25 fps
- Lens
- 2.7–13.5 mm, f/1.6 motorized varifocal
- Optical zoom
- 5×
- Field of view
- Diagonal 106.7°–37.2°; horizontal 102.5°–33°; vertical 54°–18°
- Night vision
- IR up to 131 ft / 40 m under ideal conditions; color needs ambient light
Camera construction & environment
- Housing / color
- Aluminum / black
- Weather rating
- IP66; not submersible; sheltered placement recommended
- Operating range
- −22°F to 140°F
- Dimensions
- 7.4 × 3.15 × 3.03 in
- Weight
- 1.28 lb
- Power
- 12 V DC or IEEE 802.3af PoE
Detection, audio & storage
- Detection
- Person, vehicle, intrusion, loitering, wrong-way, unauthorized parking
- Analytics
- Line / dual-line crossing and people counting
- Audio
- Two-way talk; follow local consent laws
- Deterrence
- Warning light, siren, and prerecorded messages
- Camera storage
- microSD up to 1 TB; card not included
- Recording relationship
- NVR recording plus independent camera microSD option
XC NVR & storage
- Channels / PoE
- 8 IP channels / 8 built-in PoE ports
- PoE budget
- 100 W total
- Installed storage
- Preinstalled 2 TB hard drive
- Drive architecture
- One SATA bay; up to 12 TB total
- Video outputs
- HDMI and VGA, up to 4K
- Playback
- Synchronized 1-, 4-, or 8-channel playback
Network & interoperability
- LAN
- Gigabit Ethernet
- Remote access
- Lorex Connect; router, internet, and compatible device required
- Bandwidth guidance
- Recommended 4K upload: at least 6 Mbps per channel; 24 Mbps for the system
- Extended PoE
- Up to 250 m at 10 Mbps under specified conditions
- Interoperability
- ONVIF Profiles G/M/S/T and RTSP
- Third-party boundary
- Advanced functions may be limited with third-party cameras
Recorder dimensions & recording
- Dimensions
- 10.04 × 9.25 × 1.78 in
- Weight
- 2.2 lb excluding hard drive
- Recording modes
- Continuous, motion, or AI-triggered
- Local display
- Customer-supplied monitor or TV
- Local control
- USB mouse category included
- Power protection
- Use a suitable surge-protected outlet; UPS optional
WHAT ARRIVES
Core system and included accessories
The selected configuration specifies the recorder, installed drive, and camera count. Accessory types are listed below; confirm exact minor hardware needs against your mounting surfaces.
Black 8-channel XC NVR
Model RNE01P-82B-AB1 with one preinstalled 2 TB hard drive.
Black X3 4K bullet cameras
Model CNE01P-2BB-AB1.
Recorder connection and setup accessories
Recorder accessories include an HDMI cable, power cable, USB mouse, alarm terminal blocks, hard-drive screws and adhesive pads.
Camera mounting accessories
Camera accessories include an alarm connector, Allen key, mounting hardware and template, and an RJ45 gland.
PLAN SEPARATELY
What is not included and what may be useful
Camera cabling, network infrastructure, optional storage, site materials, and installation labor are separate. Buy only what the actual property plan requires.
Camera Ethernet/PoE cables
Measure and purchase suitable cable for each camera route.
Router, internet, and mobile device
Required for Lorex Connect remote access and alerts; not part of the bundle.
Local monitor or TV
Add a compatible display only if local HDMI or VGA viewing is desired.
Compatible replacement hard drive
The NVR has one SATA bay and includes 2 TB; a larger compatible drive is a separate purchase.
Camera microSD cards
Not included. Each camera supports an optional card for independent local storage.
Compatible PoE switch or 12 V camera adapter
Use only when the planned topology requires it and after checking compatibility and power needs.

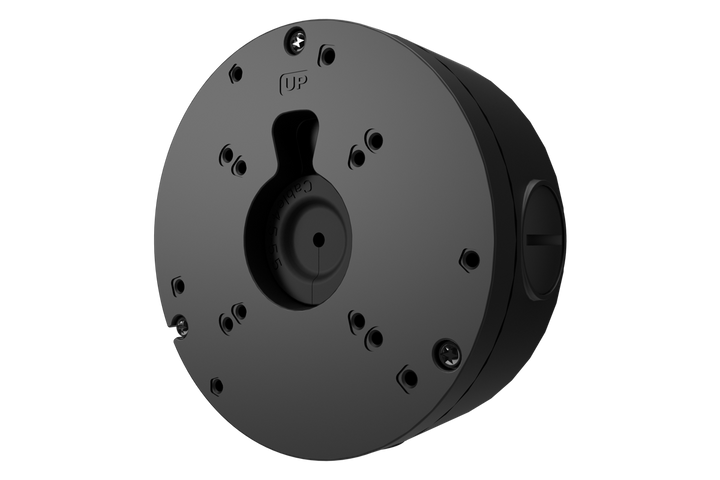

Junction boxes, weatherproofing, surge protection, or UPS
Select junction boxes, weather protection, surge protection or a UPS for your installation needs. These items are separate purchases.
Professional installation
Labor is not included and must be arranged separately if needed.
Third-party cameras
ONVIF/RTSP interoperability does not guarantee Lorex analytics, audio, or all advanced controls on third-party hardware.
BUYER FAQ
The questions worth answering before installation day
Check the selected camera count, cable routes, recording setup, detection limits, and policy terms before buying.
What exactly is the principal configuration?
One black eight-channel XC NVR with a preinstalled 2 TB drive and 2 black X3 4K bullet cameras. Recorder and camera accessories are listed in the box-content section.
Are camera Ethernet cables included?
No. Supply suitable Ethernet cable for each measured camera route. Recorder power and HDMI cables are included.
Are the included cameras wireless?
No. The cameras use wired Ethernet for power and data through PoE, or an appropriate 12 V camera power path where separately planned.
Does 5× optical zoom make these cameras PTZ?
No. The motorized 2.7–13.5 mm lens changes the field of view, but the installed bullet camera housing does not pan or tilt.
Where is video recorded?
The NVR records locally to its preinstalled 2 TB hard drive using continuous, motion, or AI-triggered modes. Each camera can also use an optional microSD card up to 1 TB; cards are not included. Local NVR recording, playback, and supported local features do not require a paid subscription. Optional cloud services, where compatible and available, may have separate fees and terms.
Can storage be expanded?
The recorder has one SATA bay and supports up to 12 TB total. Because 2 TB is already installed, a larger compatible drive is a replacement purchase, not a second internal drive.
How does night vision work?
Infrared illumination is specified up to 131 ft / 40 m under ideal conditions. Color Night Vision requires sufficient ambient light; otherwise the camera uses black-and-white infrared imaging.
Which detection modes are available?
Person, vehicle, intrusion, loitering, wrong-way, unauthorized-parking, line-crossing, dual-line-crossing and people-counting modes are available. Options depend on the recorder and channel configuration. Placement, setup and scene conditions affect results.
Does the camera support audio and deterrence?
Yes. Two-way talk, a warning light, siren, and prerecorded messages are supported. Follow applicable audio-recording and consent laws.
Can the cameras stay outdoors?
The aluminum cameras are IP66-rated and specified from −22°F to 140°F. They are not submersible; sheltered, properly sealed mounting remains recommended.
Can I use third-party cameras?
The NVR supports ONVIF Profiles G, M, S, and T plus RTSP. Advanced analytics, audio, or configuration features may be limited with third-party cameras, so verify the exact model before purchase.
What is required for remote viewing?
A router, internet service, network setup, and a compatible mobile device with Lorex Connect are required. Those items and services are not included in the bundle.
How are warranty and returns handled?
This product has a 3-Year ClearVero™ Product Warranty and a separate 30-Day Money-Back Guarantee from ClearVero, each subject to its applicable policy terms. Lorex manufacturer coverage is separate.
How are shipping cost and timing confirmed?
Review ClearVero's shipping terms and destination-specific checkout options for delivery estimates and any applicable charges.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE
Lorex 100ft Cat5e Ethernet Extension Cable (CBL100C5)
$49.99 USD
Required to connect each PoE camera when no suitable cable is already installed.
Useful when: Required to connect each PoE camera when no suitable cable is already installed.
Not needed when: A compliant, tested Ethernet run of adequate length already exists.
Compatibility: Use CBL100C5 for an indoor IP-camera route of suitable length. Choose cable rated for outdoor, riser or plenum routes when required.
Sold separately.
Available
RECOMMENDED
Lorex Round Junction Box for Fixed-Lens Cameras (JB301P)
$49.99 USD
Protects connections and supports a cleaner fixed-camera installation.
Useful when: Protects connections and supports a cleaner fixed-camera installation.
Not needed when: Existing installation has a compatible protected junction or direct mount.
Compatibility: Compatible with CNE01P-2BB-AB1 and CNE01P-2BW-AB1 cameras. Match the junction-box color to the camera.
Sold separately.
Available
READY TO PLAN YOUR SYSTEM?
Complete your wired 4K security plan
Bring your selected X3 cameras together with the 8-channel XC NVR and its preinstalled 2 TB hard drive.
- 2 black X3 4K cameras
- Eight-channel PoE recorder
- Preinstalled 2 TB HDD
Selected configuration
Black • 2 Cameras • 2TB
SKU CNX3-BB2-8CH2T
$1,179.99 USD
Uses the quantity and selected configuration in the purchase area above.
