Inspect distant activity without moving the mounting point
The 30× optical lens changes focal length before the image is recorded, giving security teams more useful detail than digital enlargement alone.
LOREX CONNECT X SERIES · 4K PTZ POE

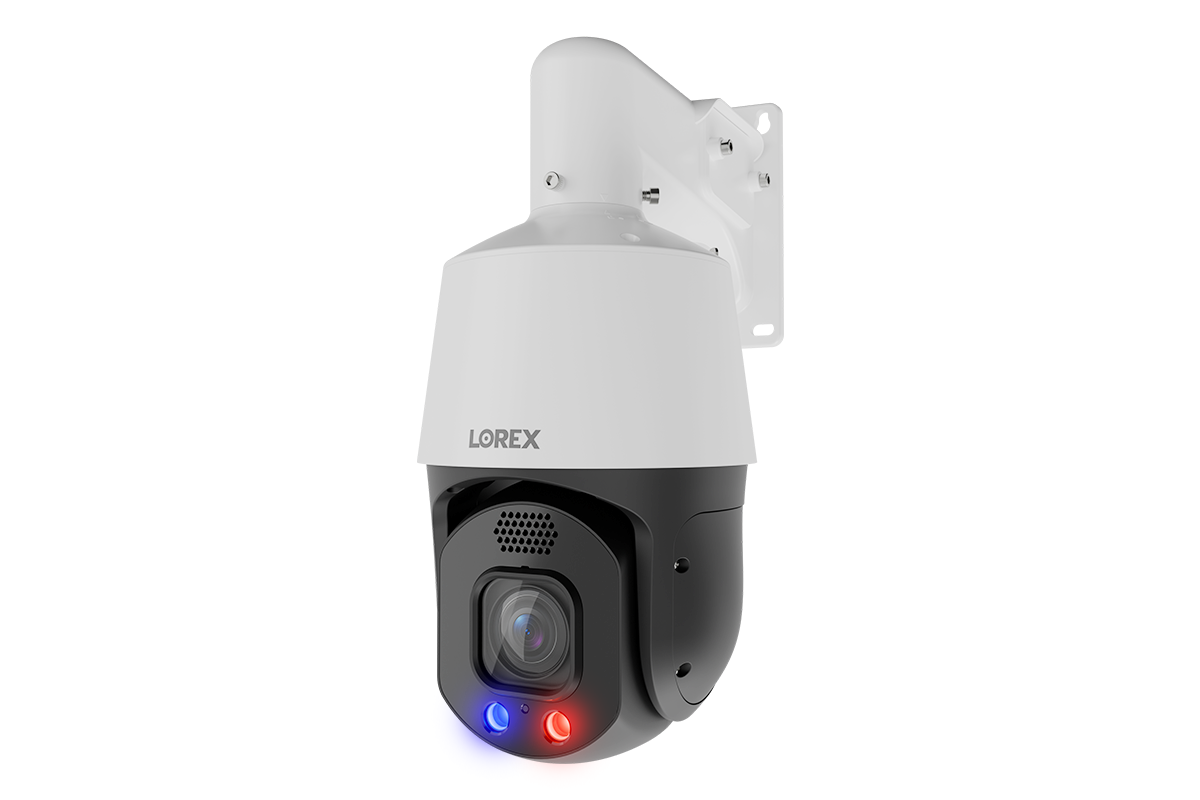

Lorex Connect X Series 4K PTZ PoE Camera with 30× Optical Zoom
Long-range visual inspection for large properties and commercial sites, with 30× optical zoom, 4K video up to 30 fps, and flexible X Series integration.
- One white PTZ PoE camera
AT A GLANCE
Product Overview
A standalone 4K PTZ camera with 30× optical zoom for inspecting distant activity. Choose a compatible recorder or optional microSD storage separately; an Ethernet camera cable is not included.
-
4K at up to 30 fps
The 8 MP sensor records up to 3840 × 2160 at 30 frames per second for detailed live and recorded video.
-
30× optical zoom
The 7–210 mm motorized lens narrows the view optically so distant areas can be examined without relying on digital enlargement.
-
Endless 360° pan
Continuous horizontal rotation and motorized tilt let the camera change direction; it does not watch every direction at the same time.
-
Long-range night options
Infrared illumination is rated up to 820 ft under ideal conditions, while color night viewing depends on available ambient light.
-
Configurable analytics
Person, vehicle, tracking, intrusion, line-crossing, loitering, people-counting, and heat-map tools depend on setup, scene, and compatible equipment.
-
Flexible recording paths
Use a compatible X Series recorder for the full Lorex system experience or a microSD card up to 1 TB for supported local storage; neither is included.
Full product details
The Lorex Connect X Series CNX01P-DPW-AB1 is one white 8 MP / 4K PTZ PoE camera built for long-range observation. It records up to 3840 × 2160 at 30 fps, uses a 7–210 mm motorized lens with 30× optical zoom, and supports endless 360° pan with motorized tilt.
Configurable capabilities include person and vehicle detection, smart tracking, intrusion and line-crossing tools, loitering, wrong-way and unauthorized-parking analytics, people counting, heat maps, AI Color Night Vision, infrared illumination rated up to 820 ft under ideal conditions, two-way audio, warning lights, siren, messages, and alarm I/O. Results depend on compatible equipment or platform support, firmware, configuration, placement, light, weather, network conditions, and the camera’s current direction.
The camera connects through RJ45 Ethernet and supports IEEE 802.3at PoE+, 24 VAC, or 36 VDC. It works with compatible Lorex Connect X Series recorders for the full Lorex system experience and supports ONVIF Profiles G/M/S/T, RTSP, and a microSD card up to 1 TB. Third-party protocols do not guarantee every Lorex feature.
What’s included
- 1 camera
- 1 wall mount
- 1 safety chain
- 1 power adapter and cable
- 4 expansion bolts
- 3 wall-mount screws
- 1 Allen key
- 1 Torx key
- 1 pair/set of ESD gloves
- 1 weather-resistant RJ45 gland
- 1 six-pin connector
Plan separately
An Ethernet camera cable, NVR, NVR storage, microSD card, network/PoE hardware where required, installation tools, and professional installation are not included. The IP66 aluminum-alloy housing is weather resistant, not submersible. Audio recording is disabled by default and must follow applicable privacy and consent law.
Core local recording through a compatible on-camera microSD card or compatible Lorex recorder does not require a mandatory monthly plan; optional services, where offered, may have separate terms.
WHY CHOOSE THIS CAMERA?
A controllable view for places a fixed camera cannot examine closely
CNX01P is designed for deliberate, long-range observation. It combines professional PTZ movement, optical zoom, 4K video, analytics, audio, and harsh-weather construction in one standalone camera.
Reposition the view as priorities change
Endless 360° pan, motorized tilt, presets, and compatible tracking can help operators follow activity across a large scene. Coverage still depends on the camera’s current direction.
Build around demanding outdoor locations
The aluminum-alloy IP66 housing is specified for −40°F to 140°F, while installation still requires suitable mounting, cabling, power, and weather-protected connections.
WHERE IT MAY FIT
Match the camera to a real monitoring question
Use these scenarios to plan a suitable view and PTZ preset. Detection, identification, and coverage still depend on placement, lighting, distance, and configuration; one camera cannot watch every direction at once.
PERIMETER OBSERVATION
Large properties and controlled boundaries
Long optical reach and directional PTZ control can help inspect gates, perimeter routes, and distant activity. Plan for sightlines, obstructions, lighting, and the fact that one PTZ view is directional at any moment.
REMOTE INSPECTION
Parking, campus, and commercial exteriors
The 7–210 mm lens moves from a wider scene to a narrow long-distance view. Image usefulness still depends on focus, distance, light, weather, movement, and the chosen camera direction.
AFTER-DARK PLANNING
Entrances and activity after dark
Color night viewing uses available ambient light; infrared provides monochrome visibility when needed. The published 820 ft IR range is an ideal-condition maximum, not a guaranteed identification distance.
EVENT AWARENESS
Monitored entrances and operating zones

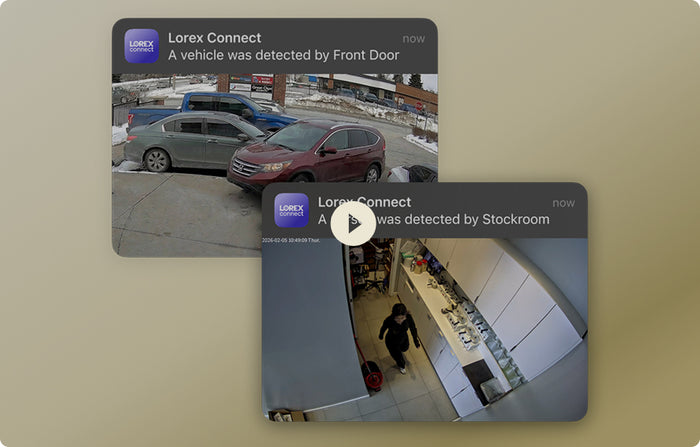

Configurable person, vehicle, intrusion, line-crossing, loitering, wrong-way, parking, counting, and heat-map tools can help surface events. Results depend on compatible recorder or platform support, firmware, placement, and scene conditions.
RECORDING & SYSTEM ARCHITECTURE
Choose the connection path that fits the site
The camera can receive power and network connectivity through PoE+ or use its alternative power inputs. A compatible X Series NVR is the clearest route to the complete Lorex feature set.
- CNX01P camera One standalone 4K PTZ camera
- Ethernet network RJ45 10/100 carries data and supported PoE+ power
- Compatible X Series recorder Optional; verify channels, PoE budget, firmware, and feature support
- Local and remote viewing Availability depends on the chosen compatible system architecture
Communication is built into the camera
The microphone and speaker support two-way talk. Warning lights, siren, custom messages, and alarm I/O can be configured for the site; none guarantees prevention.
Detailed video at useful frame rates
The 8 MP sensor records up to 3840 × 2160 at 30 fps, with 120 dB WDR for difficult bright-and-dark scenes.

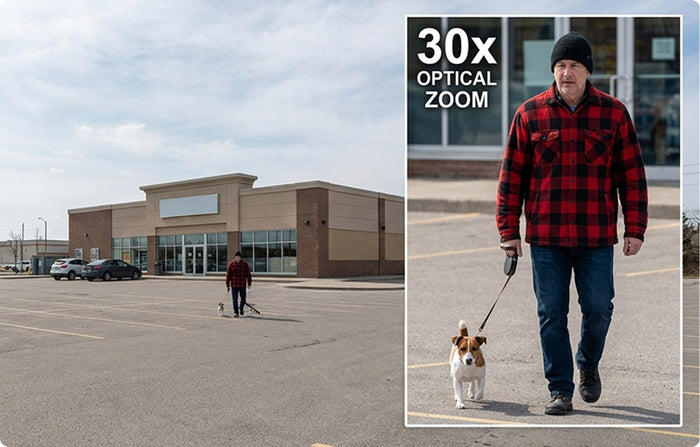

Optical reach before digital processing
The 7–210 mm motorized lens changes the field of view from 67.6° diagonal to 3°, helping operators inspect distant areas with real optical magnification.
Direction, presets, and compatible tracking
Endless pan and motorized tilt support repositioning and patrol workflows. Tracking results depend on configuration, scene conditions, firmware, and compatible system support.

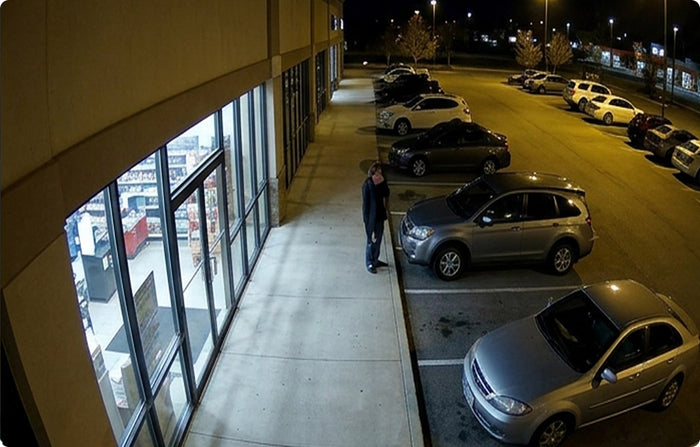

Two complementary night modes
AI Color Night Vision depends on ambient light. Infrared is rated up to 820 ft under ideal conditions and produces monochrome imagery when active.

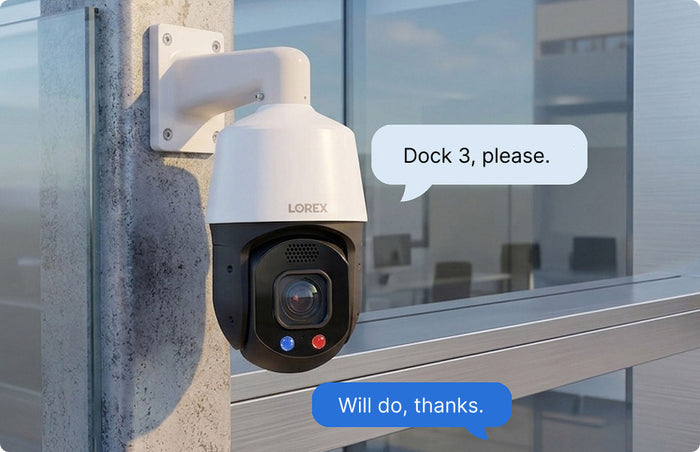

Listen and speak when policy allows
A built-in microphone and speaker support two-way communication. Audio recording is disabled by default and must follow applicable privacy and consent law.
Deterrence and external integration
Configurable warning lights, siren, messages, and two alarm inputs/two outputs support site-specific responses without guaranteeing event prevention.
PLAN BEFORE YOU MOUNT
Placement, power, cable, and recording are one decision
This is a professional PTZ camera, not a complete recorder bundle. A reliable result starts by planning the mounting point, Ethernet path, PoE budget, recording destination, and coverage limitations together.
-
CAMERA PLACEMENT
Choose the observation point first
Map the widest view, the distant details that need inspection, likely obstructions, lighting, mounting height, and the camera’s directional coverage at any moment.
-
CLEARVERO PLANNING
Measure the Ethernet route
The Ethernet camera cable is not included. Select outdoor-rated or otherwise installation-appropriate cabling and protect every transition for the environment.
-
POWER REQUIREMENTS
Confirm power and PoE budget
Supported inputs are IEEE 802.3at PoE+, 24 VAC, or 36 VDC. Maximum PoE draw is 25 W; verify the actual switch, injector, or recorder budget.
-
COMPATIBILITY BOUNDARY
Match the recorder before installation
For the full Lorex system experience, confirm an X Series NVR’s channels, PoE capacity, firmware, storage, analytics, PTZ, audio, and deterrence support.
-
IP66 · −40°F TO 140°F
Protect the physical installation
IP66 is weather resistant, not submersible. Use the supplied gland where applicable, suitable junction protection, structural mounting, and code-compliant practices.
-
AUDIO & PRIVACY
Set privacy and recording policy
Audio recording is disabled by default. Configure zones, analytics, notifications, retention, audio, and operator access in line with site policy and applicable law.
BUYING GUIDANCE
A strong fit depends on the monitoring job
Use these checks to distinguish a good PTZ application from a site that needs additional fixed cameras, different infrastructure, or more compatibility work.
Long sightlines
Strong candidate where a controllable 30× optical view can answer a real inspection need.
Active monitoring
Fits workflows where an operator or configured automation will reposition the camera deliberately.
Exposed locations
Aluminum-alloy IP66 construction and the published temperature range support demanding outdoor placement when installed correctly.
Simultaneous all-direction coverage
One PTZ camera looks in one direction at a time. Add fixed viewpoints where continuous scene coverage is required.
No planned cable route
The package does not include an Ethernet camera cable. Confirm route, cable specification, surge protection, and PoE source before purchase.
Third-party feature parity
ONVIF and RTSP support interoperability, but do not guarantee full Lorex PTZ, analytics, audio, deterrence, or app behavior.
SPECIFICATIONS
The technical detail behind the buying decision
Compare the camera's power, movement, zoom, weather rating, and storage options below. Published maximums depend on the stated conditions.
Imaging
- Sensor
- 8 MP, 1/1.8-inch CMOS
- Maximum resolution
- 3840 × 2160
- Maximum frame rate
- Up to 30 fps at 4K
- Wide dynamic range
- 120 dB true WDR
- Minimum illumination
- 0.005 lux color; 0.0005 lux B/W
- Signal-to-noise ratio
- 55 dB
Lens and movement
- Lens
- 7–210 mm motorized varifocal
- Aperture
- F1.61–F5.15
- Optical zoom
- 30×
- Field of view D / H / V
- 67.6°–3° / 60.4°–2.6° / 36.5°–1.5°
- Pan
- Endless 360°
- Tilt
- Motorized tilt
Night, analytics, and audio
- Infrared range
- Up to 820 ft / 250 m under ideal conditions
- Color night view
- AI Color Night Vision; ambient light dependent
- Detection
- Person and vehicle detection
- Analytics
- Tracking, intrusion, line crossing, loitering, wrong-way, unauthorized parking, counting, heat map
- Audio
- Built-in microphone and speaker; two-way talk
- Alarm I/O
- 2 inputs / 2 outputs
Video, network, and storage
- Codecs
- Nano Codec, H.265, H.264, MJPEG
- Streams
- Three
- Network
- RJ45 10/100 Ethernet
- Interoperability
- ONVIF Profiles G/M/S/T; RTSP
- Local storage
- microSD up to 1 TB; card not included
- Recorder path
- Compatible Lorex Connect X Series NVR recommended for full system experience
Power and construction
- Power inputs
- 24 VAC, 36 VDC, or IEEE 802.3at PoE+
- Maximum PoE draw
- 25 W
- Housing
- White aluminum alloy
- Weather rating
- IP66; not submersible
- Operating range
- −40°F to 140°F / −40°C to 60°C
- Camera size / weight
- Ø6.93 × 11.96 in; 8.82 lb
Package and identifiers
- Model / SKU
- CNX01P-DPW-AB1
- UPC
- 695529066424
- Package size
- 10.83 × 10.83 × 16.14 in
- Package weight
- 13.36 lb
- Package type
- Brown box
- Condition
- Brand-new
WHAT ARRIVES
What's in the CNX01P box
The box contains one CNX01P camera, the listed wall-mount and safety hardware, and a power adapter. An Ethernet camera cable and NVR are separate.
CNX01P PTZ camera
One white Lorex Connect X Series 4K PTZ PoE camera.
Wall mount
One wall mount for the camera.
Safety chain
A safety chain for mounting.
Power adapter and cable
Alternative local power hardware supplied with the package.
Expansion bolts
Four expansion bolts.
Wall-mount screws
Three wall-mount screws.
Allen key
One Allen key.
Torx key
One Torx key.
ESD gloves
One pair/set of electrostatic-discharge gloves.
RJ45 cable gland
One weather-resistant RJ45 gland.
Six-pin connector
One six-pin wire connector.
PLAN SEPARATELY
Required infrastructure, optional storage, and compatibility boundaries
Plan the camera cable, recording storage, power source and installation materials separately.
Ethernet camera cable
Select a suitable camera cable for the measured route; no Ethernet extension cable is included.
X Series NVR
Verify channels, PoE budget, firmware, storage, and feature support before choosing a recorder.
microSD card
The camera supports a microSD card up to 1 TB; the card is optional and not included.
PoE+ source or network hardware
A compatible recorder, PoE+ switch, or injector may be needed for the chosen topology.
Installation tools and site materials
Plan suitable tools, structure, cable protection, weather sealing, and code-compliant materials for the site.
BUYER FAQ
Questions to answer before installation day
Answers here cover power, recording, compatibility, box contents, and the separate seller warranty.
Does the camera include an Ethernet cable?
No. The exact product is sold without an Ethernet camera/extension cable. Measure the route and choose installation-appropriate cabling separately.
Is an NVR included?
No. This is one standalone camera. A compatible Lorex Connect X Series NVR is recommended when you want the complete Lorex recorder-centered experience.
How can the camera be powered?
The camera supports IEEE 802.3at PoE+, 24 VAC, or 36 VDC. Maximum PoE draw is 25 W, so verify the budget of the chosen recorder, switch, or injector.
Which recorder should I use?
Choose a compatible X Series NVR and confirm channel count, PoE capacity, firmware, storage, and support for PTZ, analytics, audio, and deterrence before purchase.
What does 30× optical zoom mean?
The 7–210 mm lens changes focal length optically, narrowing the view before the image is recorded. It can help inspect distant areas, but usable detail still depends on distance, focus, movement, light, weather, and camera direction.
Does 360° PTZ mean the camera sees every direction at once?
No. It supports endless 360° horizontal pan with motorized tilt, but a PTZ camera observes the direction it is currently facing. Use additional fixed viewpoints where simultaneous coverage is required.
Does smart tracking work automatically in every setup?
No. Tracking and analytics depend on configuration, compatible equipment or platform support, firmware, placement, lighting, weather, obstructions, and scene conditions.
How far can it see at night?
Infrared is rated up to 820 ft / 250 m under ideal conditions. Real results vary with the scene and weather. AI Color Night Vision also needs sufficient ambient light.
Can it record without an NVR?
The camera supports a microSD card up to 1 TB, sold separately. Available recording, search, retention, analytics, and app behavior depend on the selected architecture and configuration.
Can it be installed outdoors?
The aluminum-alloy housing is IP66-rated and specified for −40°F to 140°F. IP66 is weather resistant, not submersible; mounting, cable transitions, surge protection, and sealing must suit the site.
Does it support two-way audio?
Yes. The built-in microphone and speaker support two-way talk. Audio recording is disabled by default and must be configured in line with applicable privacy and consent law.
What warranty does ClearVero provide?
This Lorex product is covered by the 3-Year ClearVero™ Product Warranty.
What is the return window?
ClearVero provides a 30-Day Money-Back Guarantee, subject to the current refund policy and its conditions.
Is this a complete installation kit?
The camera and listed mounting accessories are included. Plan the Ethernet cable, recording storage, suitable power and network hardware, tools and any installation labor separately.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
REQUIRED FOR INSTALLATIONS WITHOUT A SUITABLE EXISTING NETWORK CABLE

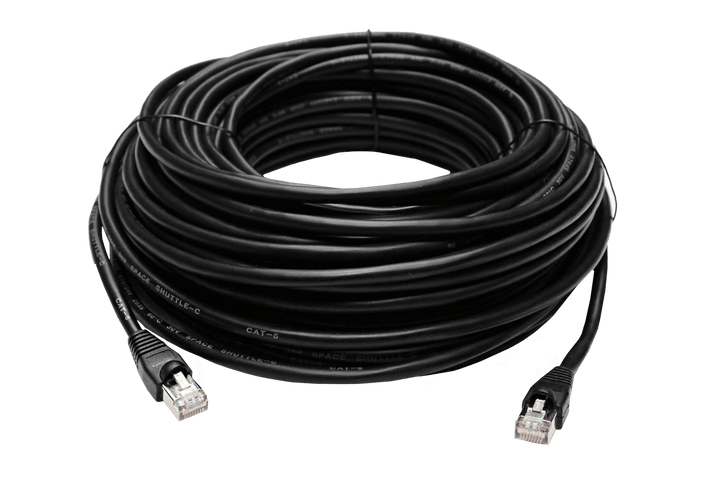

Lorex 100ft Outdoor Cat6 Extension Cable (CBL100C6RXU)
$59.99 USD
Connects the outdoor PoE PTZ to a compatible recorder/network path.
Useful when: Connects the outdoor PoE PTZ to a compatible recorder/network path.
Not needed when: A compliant outdoor Ethernet run already exists.
Compatibility: Outdoor CAT6 cabling connects this PoE camera to a suitable network or recorder. Camera Ethernet cable is sold separately.
Sold separately.
Available
FOR RECORDER-BASED STORAGE

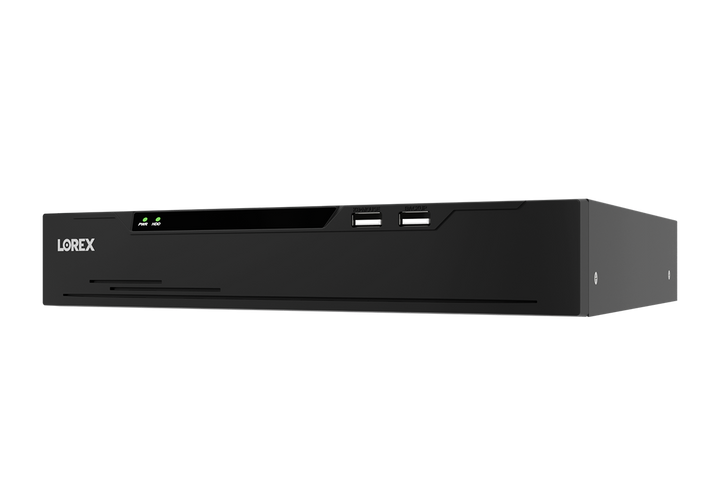

Lorex Connect XC 8-Channel NVR with 2TB HDD (RNE01P)
$549.99 USD
Choose a compatible recorder when you want centralized NVR recording.
Useful when: Choose a compatible recorder when you want centralized NVR recording.
Not needed when: A compatible X-series recorder with an available channel is already installed.
Compatibility: Use an XC eight-channel recorder with 2 TB storage for a compatible recorder-based setup. Check the camera’s PoE+ power requirement against the chosen connection.
Sold separately.
Available
RECOMMENDED

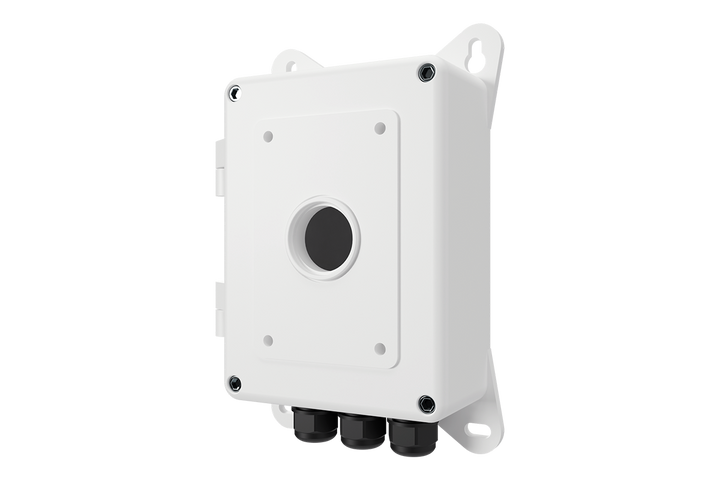

Lorex PTZ Camera Junction Box (JB501P)
$84.99 USD
Protects PTZ cable connections and provides a mounting base for the compatible camera.
Useful when: You need a protected cable connection point for the white CNX01P-DPW-AB1 camera.
Not needed when: A suitable compatible mounting solution already exists.
Compatibility: JB501P-MPW is compatible with the white CNX01P-DPW-AB1 camera. Use suitable mounting hardware and a surface that supports the complete installation.
Sold separately.
Available
READY TO PLAN THE CAMERA?
Bring long-range 4K PTZ inspection to the point that matters
Choose the exact standalone white CNX01P camera, then plan the Ethernet route, PoE+ source, recording path, and compatible X Series equipment separately.
- One CNX01P-DPW-AB1 camera
- Ethernet camera cable not included
- NVR and storage media not included
SKU CNX01P-DPW-AB1
$1,469.99 USD
Uses the configuration and quantity selected above.
