Keep the wider scene while inspecting detail
The fixed 4K view preserves context while dual 2K PTZ views help follow movement and look closer without treating one view as every view.
EUFYCAM S4 • SOLAR • HOMEBASE • E10

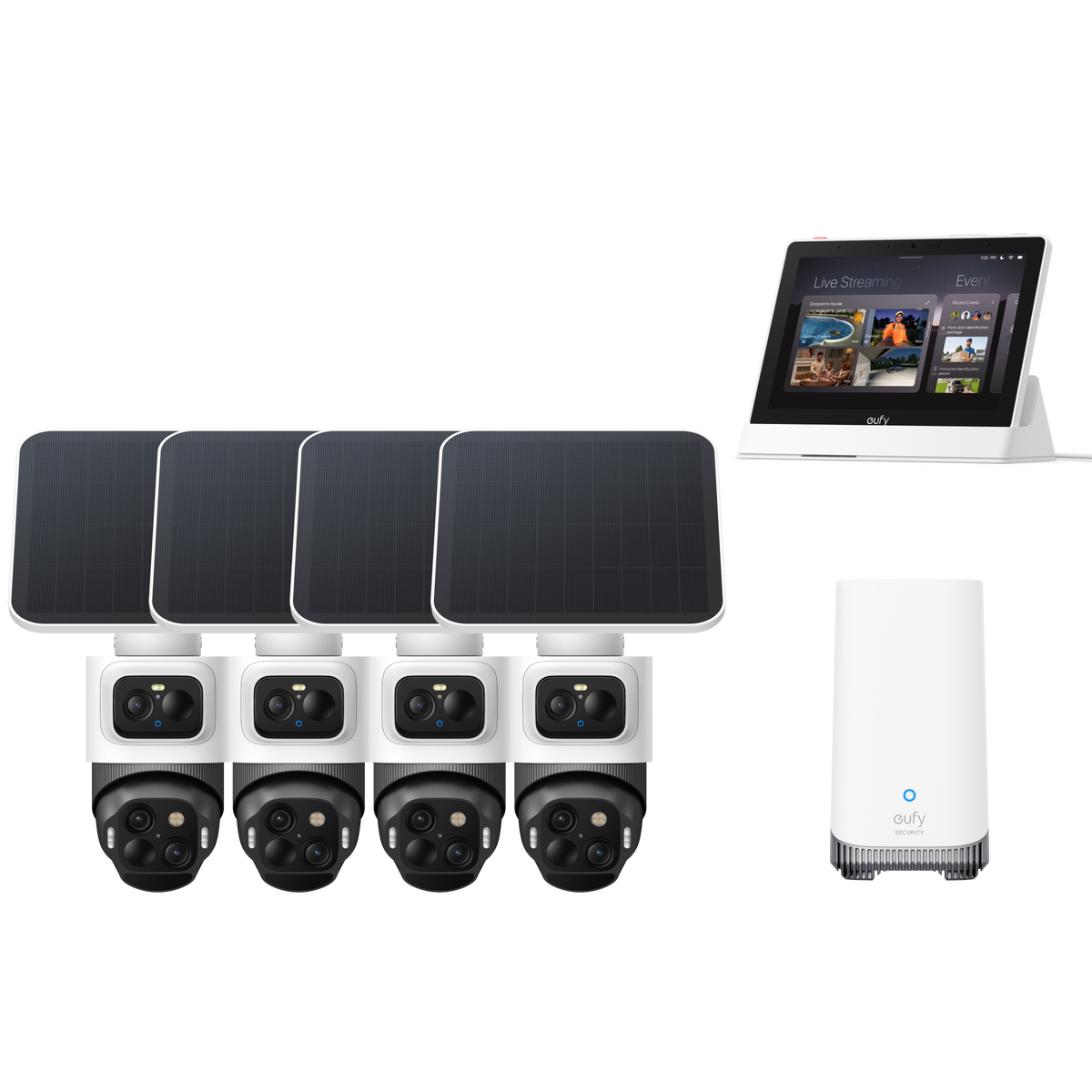

eufyCam S4 4-Camera Solar Kit with HomeBase S380 and Smart Display E10
Four solar-assisted triple-lens cameras, HomeBase S380, and an 8-inch Smart Display E10 for coordinated multi-zone monitoring.
- 4× eufyCam S4 + 4× detachable 5.5W solar panels
- HomeBase S380 + Smart Display E10
AT A GLANCE
Product Overview
Scan the configuration, viewing architecture, storage paths, and power requirements before deciding whether this four-zone system fits your property.
- One complete four-zone kitFour eufyCam S4 cameras, four detachable solar panels, HomeBase S380, and Smart Display E10 are included.
- Wide context and close detailEach camera combines one 4K fixed view with two 2K pan-tilt-zoom views.
- 355° mechanical panThe PTZ assembly pans 355° and tilts 70° for all-around tracking coverage.
- Two local storage pathsUse each camera’s 32GB storage or optional microSD, or expand HomeBase S380 with a customer-supplied drive.
- 24/7 recording is conditionalContinuous recording requires direct power, current firmware, the current eufy app, and compatible storage.
- Four feeds on an 8-inch displaySmart Display E10 can show up to four compatible eufy live feeds at once.
Full product details
A four-camera eufyCam S4 security bundle with four T8172 cameras, four detachable 5.5W solar panels, one HomeBase S380, and one Smart Display E10. Each camera combines a 4K fixed view with dual 2K pan-tilt-zoom views, includes 32GB of local storage, and supports microSD expansion. The E10 provides an 8-inch display for up to four compatible eufy feeds. Continuous recording requires direct 5V/2A-or-higher power, camera firmware V1.0.5.4 or later, current eufy app software, and compatible storage; HomeBase-connected continuous recording uses an installed hard drive and HomeBase firmware V3.7.2.8 or later. Camera power adapters, microSD cards, a HomeBase hard drive, router/Internet service, and professional installation are not included.
WHY THIS CONFIGURATION
Four coordinated viewpoints, one local security ecosystem
This configuration pairs solar-assisted outdoor cameras with HomeBase storage and a dedicated indoor display. Each component has a distinct role in the monitoring plan.
Choose local storage for the operating mode
Each camera has 32GB built in, while HomeBase S380 adds centralized storage and supported BionicMind features. Expansion media remains customer supplied.
Give live monitoring a dedicated screen
The included 8-inch E10 can show up to four compatible eufy feeds at once, reducing the need to make a phone the only everyday viewing surface.
WHERE IT MAY FIT
Useful when four outdoor zones need different jobs
These are planning examples, not coverage guarantees. Final performance depends on placement, sightlines, Wi-Fi, sunlight, activity, and the mounting surface.
APPROACH AWARENESS
Driveways and approaches
Use the fixed view for context while PTZ views follow movement. Avoid exact distance promises; placement, lighting, obstructions, and scene conditions govern results.
ACCESS POINTS
Entrances and side routes
Assign cameras to doors, gates, or side access points where distinct sightlines matter. Confirm Wi-Fi quality and the target path before mounting.
MULTI-ZONE EXTERIORS
Yards and separated outdoor zones
Four cameras can cover different exterior jobs without implying a guaranteed property size. Solar exposure and HomeBase placement should be planned per position.
INDOOR MONITORING
A dedicated viewing point
Place the indoor E10 where quick viewing adds value. It is a compatible-feed display, not a replacement for HomeBase or a universal third-party monitor.
HOW THE SYSTEM WORKS
Cameras, HomeBase, storage, and display—each with a clear role
The cameras can operate by direct Wi-Fi or through the included HomeBase S380. E10 is a separate indoor viewing surface for compatible feeds, not the recorder.
- eufyCam S4 Four outdoor cameras create fixed and PTZ views.
- Network path Direct Wi-Fi or the included HomeBase S380 connects the system.
- Storage choices Use camera storage, optional microSD, or HomeBase expansion.
- Everyday access Use the eufy app or compatible Smart Display E10 feeds.
One camera, three coordinated views
Each eufyCam S4 combines one 4K fixed view with two 2K PTZ views. The moving assembly supports 355° mechanical pan, 70° tilt, and 8× hybrid zoom.
Wide context plus close detail
One 4K fixed view and two 2K PTZ views divide the work. Resolutions apply to separate views, not one combined 16MP lens.
Pan, tilt, and zoom with exact limits
The PTZ assembly offers 355° mechanical pan, 70° tilt, and 8× hybrid zoom. Hybrid zoom is not an 8× optical claim.
Detection and tracking stay qualified
Local human, vehicle, and pet detection is supported; HomeBase adds supported BionicMind functions. Tracking results depend on placement and scene conditions.
Three low-light viewing modes
Starlight/AI-enhanced, spotlight color, and infrared modes serve different scenes. Infrared illumination is specified up to 32.8 ft (10 m).
Communicate and deter when configured
Full-duplex two-way audio, AI noise reduction, spotlights, warning lights, and a 105 dB-rated siren support configured responses.

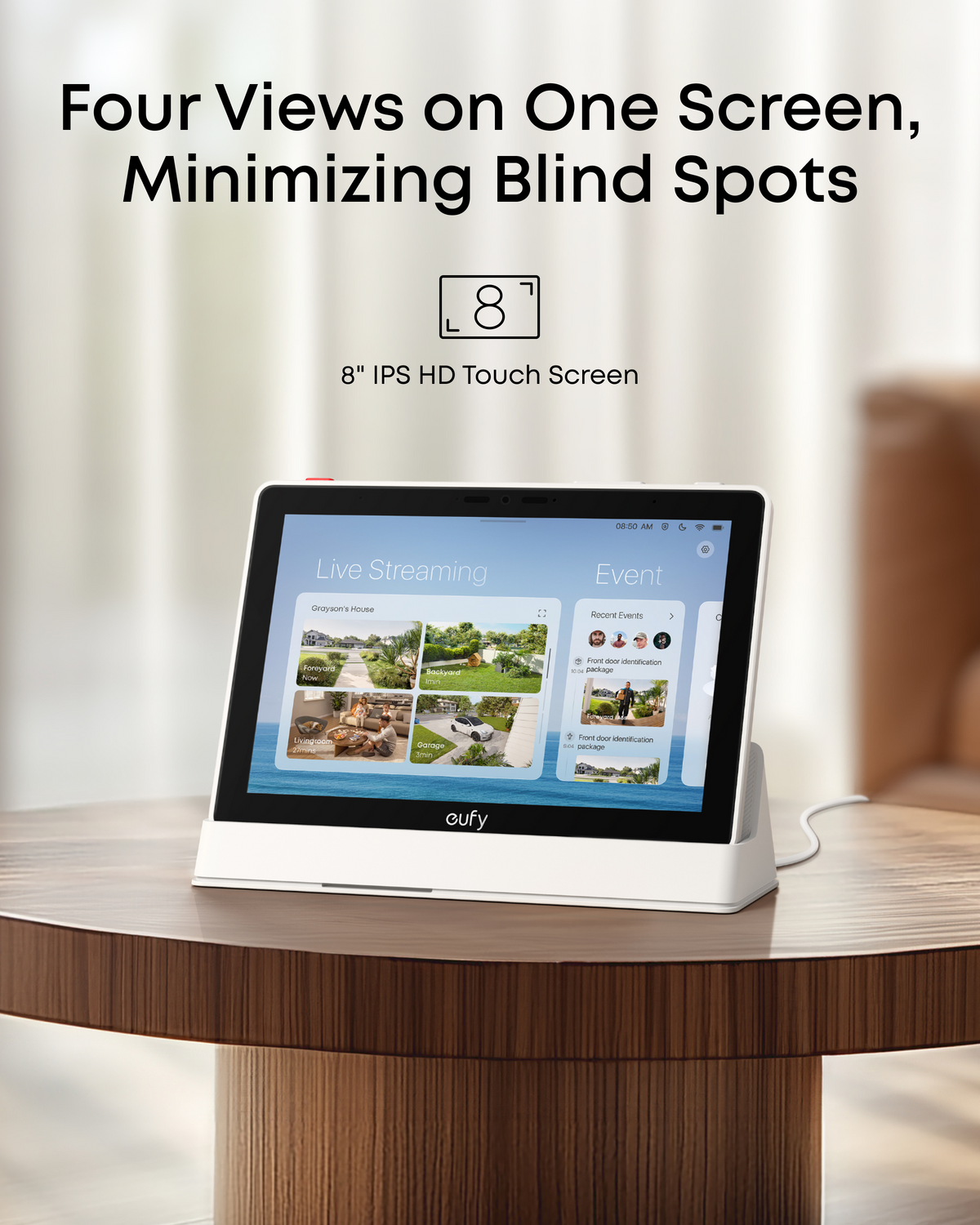

Four compatible feeds on one display
The 8-inch 1280 × 800 E10 can show up to four compatible eufy feeds. It is indoor equipment and is not currently managed through the eufy app.
INSTALLATION & COVERAGE
Plan each camera position, solar panel, network path, and storage mode
Use this as pre-purchase guidance, not a site survey. Mounting surface, sightlines, Wi-Fi, sunlight, activity, weather, and the chosen recording mode all affect the plan.
SITE-PLAN CONCEPT
Four camera jobs, four separately verified positions
Assign each camera a defined outdoor zone, then check the mounting surface, HomeBase or Wi-Fi path, shadow-free solar-panel position, and access for charging or direct power.
- Camera zone 1
- Camera zone 2
- Camera zone 3
- Camera zone 4
Indoor HomeBase location
Power · network · ventilation
-
CLEARVERO PLANNING
Give each camera one primary job
List the entrances, approaches, yards, or activity transitions that matter. Preserve clean sightlines and avoid relying on one camera for every angle.
-
VERIFIED NETWORKING
Check Wi-Fi and HomeBase placement
The cameras support direct Wi-Fi or the included HomeBase S380. Router, Internet service, and a eufy account are customer infrastructure for networked functions.
-
VERIFIED MOUNTING
Choose positions before drilling
Plan wall or top mounting around 7–10 ft (2–3 m), subject to the surface, target path, obstructions, and safe access.
-
VERIFIED SOLAR
Give each panel direct sun
Place every detachable solar panel in unobstructed sunlight, generally angled about 30°–45°, and adjust for local conditions and seasons.
-
RECORDING DECISION
Separate event and continuous modes
Battery or solar supports event recording. Continuous recording needs direct 5V/2A-or-higher power, current software, and compatible storage.
-
STORAGE DECISION
Choose storage before installation
Plan camera microSD expansion or an optional HomeBase hard drive only where needed. Neither cards nor the hard drive are included.
BUYING GUIDANCE
A strong fit starts with the operating mode
Decide whether solar-assisted event recording meets the need or whether any camera requires customer-supplied direct power and compatible storage for continuous recording.
You want solar-assisted event recording
Four detachable 5.5W panels are included—one for each camera.
Local storage is a priority
Each camera includes 32GB, and HomeBase S380 adds a centralized local path.
A dedicated indoor display adds value
E10 can keep up to four compatible eufy feeds visible on one screen.
Four outdoor zones match the first plan
The bundle starts with four cameras and four corresponding solar panels.
You need continuous recording everywhere
Plan one customer-supplied 5V/2A-or-higher adapter per directly powered camera, current firmware, and compatible storage.
HomeBase or E10 would be exposed outdoors
The cameras are IP65; HomeBase S380 and Smart Display E10 belong indoors.
Third-party display compatibility is essential
E10 supports compatible eufy devices and does not support third-party cameras.
Optional storage must be included in the box
microSD cards, a HomeBase hard drive, router/Internet service, and professional installation are separate.
VERIFIED SPECIFICATIONS
Technical details grouped by the component they describe
Values are component-scoped. Unresolved facts and unsupported fields are omitted rather than filled for appearance.
Camera & imaging
- Model
- eufyCam S4 (T8172)
- Views
- One 4K fixed view plus two 2K PTZ views
- Frame rate
- Up to 20 fps
- Fixed field of view
- 130° diagonal; 107° horizontal; 57° vertical
- PTZ fields of view
- 121° diagonal wide; 46° diagonal tele
- Zoom
- 8× hybrid zoom
Motion, detection & response
- Mechanical movement
- 355° pan; 70° tilt
- Tracking
- Auto-framing described up to 164 ft (50 m), subject to scene conditions
- On-device detection
- Human, vehicle, and pet
- Motion sensors
- PIR up to 30 ft; radar up to 40 ft
- Night modes
- Starlight/AI-enhanced, spotlight color, and infrared
- Audio & deterrence
- Full-duplex audio, AI noise reduction, warning lights, spotlights, 105 dB-rated siren
Power, solar & environment
- Camera battery
- Removable 10,000mAh rechargeable battery
- Solar panel
- Detachable 5.5W panel per camera
- USB charging
- 5V/2A; allow about 6–8 hours; adapter not included
- Camera rating
- IP65
- Camera operating range
- -4°F to 131°F (-20°C to 55°C)
- Charging range
- 32°F to 113°F (0°C to 45°C)
Storage & recording
- Camera storage
- 32GB built in; optional microSD up to 256GB
- HomeBase storage
- 16GB built in; optional customer-supplied drive up to 16TB
- Event recording
- Supported on battery or solar power
- Continuous power
- Direct 5V/2A-or-higher power required
- Camera software
- Firmware V1.0.5.4 or later and current eufy app
- HomeBase continuous path
- Installed hard drive and firmware V3.7.2.8 or later
Connectivity & compatibility
- Camera connection
- Direct Wi-Fi or included HomeBase S380
- Voice assistants
- Amazon Alexa and Google Assistant supported
- Apple HomeKit
- Not supported
- HomeBase AI
- Supported BionicMind recognition functions require HomeBase S380
- Customer infrastructure
- Router, Internet service, and eufy account for networked functions
Smart Display E10
- Display
- 8-inch 1280 × 800 capacitive multi-touch
- Feeds
- Up to four compatible eufy live feeds
- Wi-Fi
- 2.4GHz and 5GHz Wi-Fi 6
- Internal storage
- 8GB; 500MB allocated for event storage
- Optional card
- microSD up to 512GB; card not included
- Placement
- Indoor; 32°F–104°F (0°C–40°C)
Physical planning
- Camera dimensions
- 92 × 164.5 × 165 mm
- With panel at 45°
- 92 × 164.5 × 305 mm
- Per-unit weight
- Camera about 745g; solar panel about 308g
- Recommended mounting height
- 7–10 ft (2–3 m)
- E10 dimensions
- 201 × 139 × 16.5 mm
WHAT ARRIVES
The verified bundle contents
Quantities preserve the Task 2 bundle manifest. The E10 list stops at the confirmed display, dock, and wall-mount bracket.
eufyCam S4 camera sets
Each set includes one T8172 camera, removable battery, camera bracket, positioning sticker, screw pack, and USB charging cable.
Solar panel sets
Each set includes one 5.5W panel, mounting bracket, positioning sticker, 3 m extension cable, and screw pack.
HomeBase S380 set
Includes HomeBase S380, Ethernet cable, HomeBase power adapter, reset pin, and hard-drive screw pack. A hard drive is not included.
Smart Display E10 set
Includes Smart Display E10, its charging dock, and wall-mount bracket.
Quick Start Guide
Camera and HomeBase kit guidance is included.
NOT INCLUDED
Plan these items separately when the installation needs them
These are optional expansions, customer infrastructure, or mode-specific requirements—not missing promises or included accessories.
5V/2A-or-higher camera adapters
Required only for cameras configured for direct-power continuous recording; not included.
microSD cards
Optional expansion up to 256GB per camera and up to 512GB for E10; not included.
HomeBase hard drive
Optional expansion up to 16TB and required for the HomeBase-connected continuous-recording path; not included.
Router, Internet service, and eufy account
Needed for networked, app, or remote functions; not physical bundle items.
Professional installation
Installation labor and site-specific mounting or cable-management accessories are not included.
BUYER QUESTIONS
What to confirm before installation
Answers use verified product facts and current ClearVero policy architecture. Conditional recording, storage, and network requirements stay explicit.
What exactly is included in this configuration?
Four eufyCam S4 cameras, four detachable 5.5W solar panels, HomeBase S380, Smart Display E10, the confirmed mounting and connection accessories, and the camera/HomeBase Quick Start Guide.
Are the cameras wireless or wired?
They can use direct Wi-Fi or connect through HomeBase S380. Battery or solar supports event recording; direct power is a separate operating mode.
What is required for 24/7 recording?
Each continuously recording camera needs direct 5V/2A-or-higher power, camera firmware V1.0.5.4 or later, the current eufy app, and compatible storage. The HomeBase-connected path also needs an installed hard drive and HomeBase firmware V3.7.2.8 or later.
Where is video stored?
Each camera includes 32GB and supports an optional microSD card up to 256GB. HomeBase S380 includes 16GB and supports a customer-supplied drive up to 16TB.
Does the bundle include camera power adapters, cards, or a HomeBase hard drive?
No. Camera power adapters, microSD cards, and a HomeBase hard drive are separate. Router/Internet service and professional installation are also not included.
How do the three camera views work?
Each T8172 combines one 4K fixed view with two 2K PTZ views. The PTZ assembly supports 355° mechanical pan, 70° tilt, and 8× hybrid zoom.
Can tracking cover every scene automatically?
No coverage or identification result is guaranteed. Tracking, auto-framing, detection, and handoff depend on placement, lighting, obstructions, settings, and the movement path.
What can Smart Display E10 show?
The indoor 8-inch E10 can show up to four compatible eufy live feeds at once. It is not HomeBase, does not support third-party camera feeds, and is not currently managed through the eufy app.
Can the cameras stay outdoors?
The cameras are IP65 and specified for -4°F to 131°F (-20°C to 55°C). HomeBase S380 and Smart Display E10 are indoor devices.
How should the solar panels be positioned?
Place each panel in unobstructed direct sunlight, generally around a 30°–45° angle, then adjust for the site and season. Actual solar charging varies with shade, weather, settings, and activity.
Does the system support Apple HomeKit?
No. Amazon Alexa and Google Assistant are supported; Apple HomeKit is not.
What mounting height and network conditions should I plan?
Plan camera positions around 7–10 ft (2–3 m), subject to the surface and sightlines. Verify the Wi-Fi/HomeBase path and keep HomeBase and E10 indoors.
What purchase protection does ClearVero provide?
The purchase includes the current 2-Year ClearVero Product Warranty and a separate 30-Day Money-Back Guarantee, each subject to the linked ClearVero terms.
How are shipping options and timing confirmed?
Shopify shows available shipping options for the delivery address. Review the current ClearVero shipping policy and the order summary before completing checkout.
READY TO PLAN FOUR OUTDOOR ZONES?
Bring solar-assisted monitoring, local storage, and a dedicated display into one system
Choose four eufyCam S4 cameras with four solar panels, HomeBase S380, and Smart Display E10.
- Four eufyCam S4 cameras and four 5.5W solar panels
- HomeBase S380 and Smart Display E10 included
- Camera adapters, microSD cards, and a HomeBase hard drive are separate
SKU BUNDLE-E81721W2-1-T87A0120-1
$1,649.98 USD
Uses the quantity and selected Shopify configuration in the purchase area above.
