Give eight locations a defined camera job
An eight-camera layout can separate entrances, driveways, boundaries and activity routes instead of asking one view to cover every question.
EUFY WIRED POE SECURITY

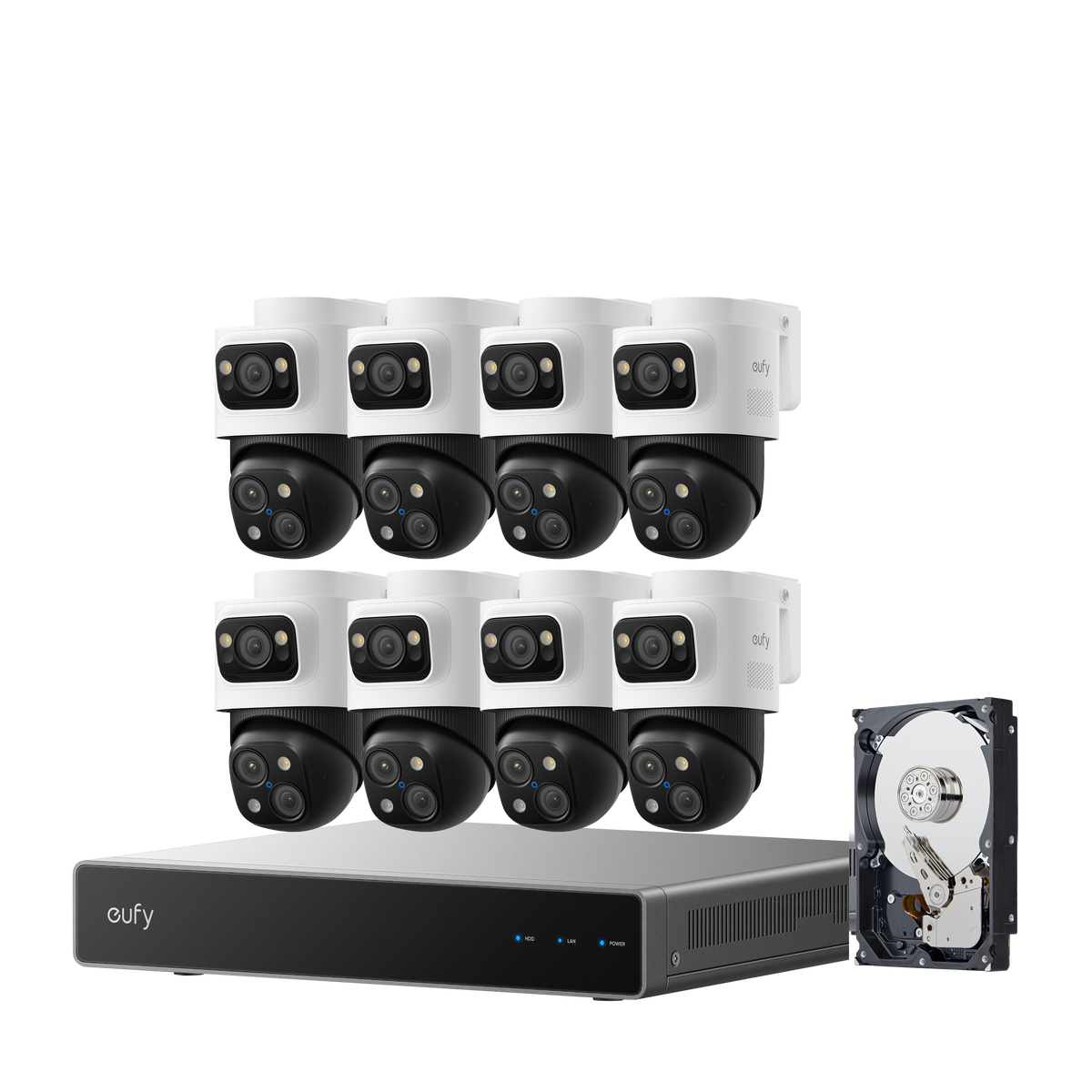

eufy PoE NVR S4 Max 8-Camera Kit with 2 TB HDD
Eight wired PoE Cam S4 cameras, one NVR S4 and continuous local recording on a preinstalled 2 TB hard drive.
- 8 × PoE Cam S4 cameras
- NVR S4 · Preinstalled 2 TB HDD
AT A GLANCE
Product Overview
Eight wired PoE cameras, one NVR S4 and preinstalled 2 TB storage create a locally recorded multi-zone system.
-
Eight PoE Cam S4 cameras
Plan eight wired camera positions across separate entrances, routes and perimeter zones.
-
Aggregate 16 MP triple-lens design
Each camera combines one 4K fixed overview with two 2K PTZ views.
-
Preinstalled 2 TB hard drive
The NVR S4 records locally to the installed mechanical drive.
-
Storage replaceable up to 16 TB
The single 3.5-inch drive bay supports a compatible replacement drive up to 16 TB.
-
Local detection and cross-camera tracking
Person, vehicle, pet and stranger detection support qualified tracking across camera views.
-
Eight 59 ft camera Ethernet cables
The included long leads support a measured wired installation plan for all eight cameras.
Full product details
The eufy PoE NVR Security System S4 Max + 4 PoE Cam S4 Add-Ons combines eight PoE Cam S4 cameras with one Network Video Recorder S4 and a pre-installed 2TB hard drive. This is the white eight-camera / 2TB configuration, SKU BUNDLE-E8E00121-1-T8E00121-4.
Each PoE Cam S4 uses an aggregate 16MP triple-lens design with one 4K fixed overview and two 2K PTZ views. The PTZ assembly provides 360° horizontal pan, a 0°–70° vertical range, and 8× hybrid zoom. A single PoE Ethernet connection carries camera power and data for wired, continuous local recording.
The NVR S4 provides eight physical PoE camera ports and records to the installed 2TB mechanical hard drive. Its single 3.5-inch drive bay is user-replaceable and supports a compatible drive up to 16TB. Viewing is available through the NVR's local HDMI interface, the eufy Security app, and documented web access. Networked and remote features require customer-supplied network service, a router, and a eufy account.
The system supports local person, vehicle, pet, and stranger detection, cross-camera tracking up to 164 ft / 50 m, local keyword video search, infrared and color night modes, and full-duplex two-way audio. Detection and tracking performance depend on camera placement, obstructions, lighting, the scene, and configuration.

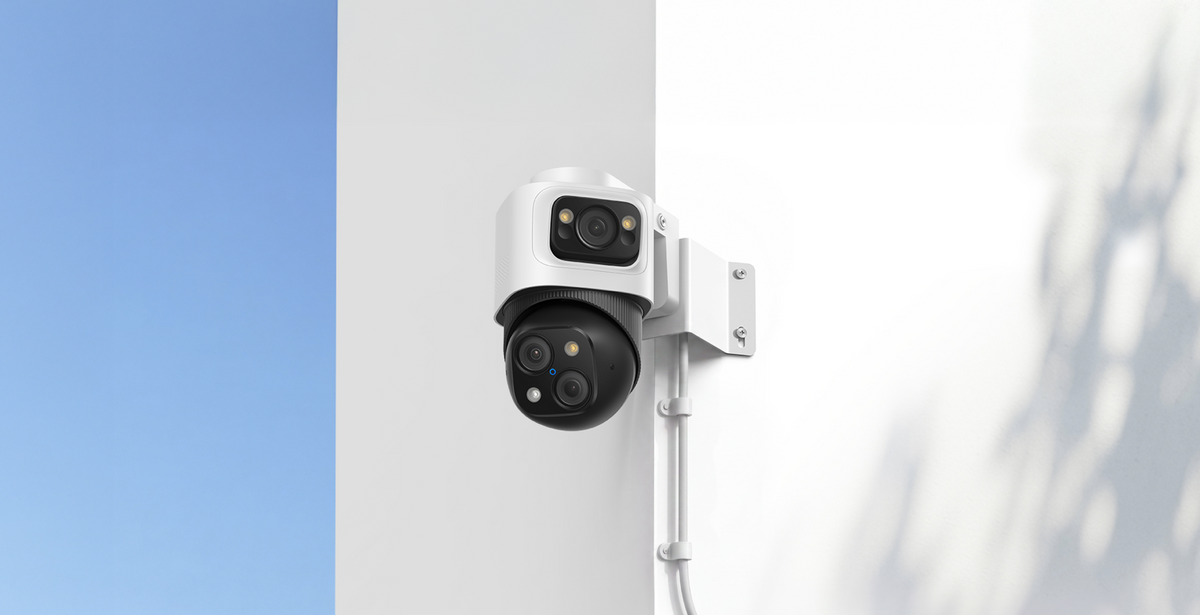

The PoE Cam S4 cameras are IP65-rated outdoor equipment and work only with NVR S4; they cannot operate as standalone cameras. The NVR is indoor equipment and does not support cameras from other brands. This bundle is already at the documented maximum of eight S4 cameras for one NVR S4.
What's included
- 1 × Network Video Recorder S4 with pre-installed 2TB hard drive
- 8 × PoE Cam S4 cameras
- 8 × 59 ft / 18 m camera Ethernet cables
- 1 × 3.3 ft / 1 m Ethernet cable
- 1 × HDMI cable
- 1 × power adapter
- 1 × USB mouse
- Mounting hardware and weatherproof connection accessories for the included cameras
- 1 × Quick Start Guide
WHY THIS CONFIGURATION
Eight wired views for a deliberate multi-zone plan
This configuration is for buyers who need several clearly defined camera positions and prefer continuous local NVR recording.
Keep the overview while checking detail
Each camera pairs a fixed 4K overview with two 2K PTZ views, preserving context while helping you inspect movement more closely.
Anchor recording to a wired local system
One Ethernet connection carries camera power and data, while the indoor NVR records continuously to its preinstalled 2 TB hard drive.
WHERE IT MAY FIT
Turn the camera count into a coverage plan
These scenarios are planning examples, not coverage guarantees. Confirm sightlines, cable routes and scene conditions before installation.
ENTRANCES
Separate important approaches
Assign distinct camera positions to gates, doors or approach routes where preserving a wide view and examining movement both matter.
PERIMETER PLANNING

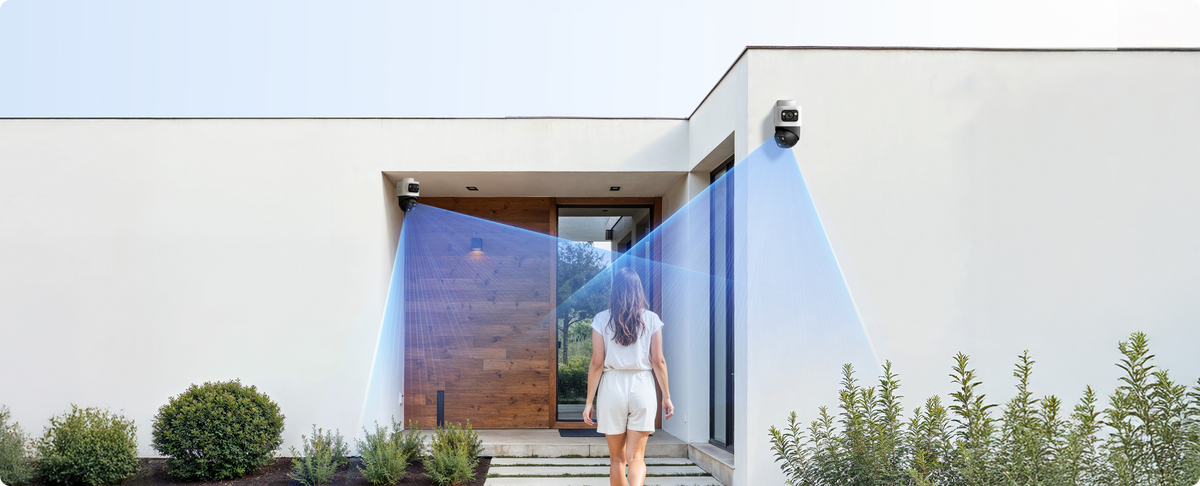

Follow movement across planned zones
Cross-camera tracking can support continuity between views up to 164 ft / 50 m. Actual performance depends on placement, obstructions, lighting, the scene and configuration.
MULTI-ZONE COVERAGE
Plan larger properties by zone
Eight wired positions may suit buyers who can route Ethernet to several separate exterior areas and want those feeds recorded by one NVR.
LOW-LIGHT PLANNING
Choose the night mode for each scene
Infrared and color night modes support different low-light conditions. Placement, obstructions and available light still affect results.
WIRED INSTALLATION
Use measured cable routes
This configuration fits installations where eight Ethernet paths can return to an indoor NVR location with power and customer network access.
HOW THE SYSTEM WORKS
From eight wired cameras to local recording and monitoring
Each camera connects to NVR S4 by Ethernet for power and data. The recorder stores video locally, with HDMI, app and supported web viewing.
- PoE Cam S4 Eight included cameras provide fixed and PTZ views.
- Wired Ethernet A single cable carries camera power and data.
- NVR S4 The indoor recorder manages feeds and stores video locally.
- Monitoring paths View through HDMI, the eufy Security app or supported web access.

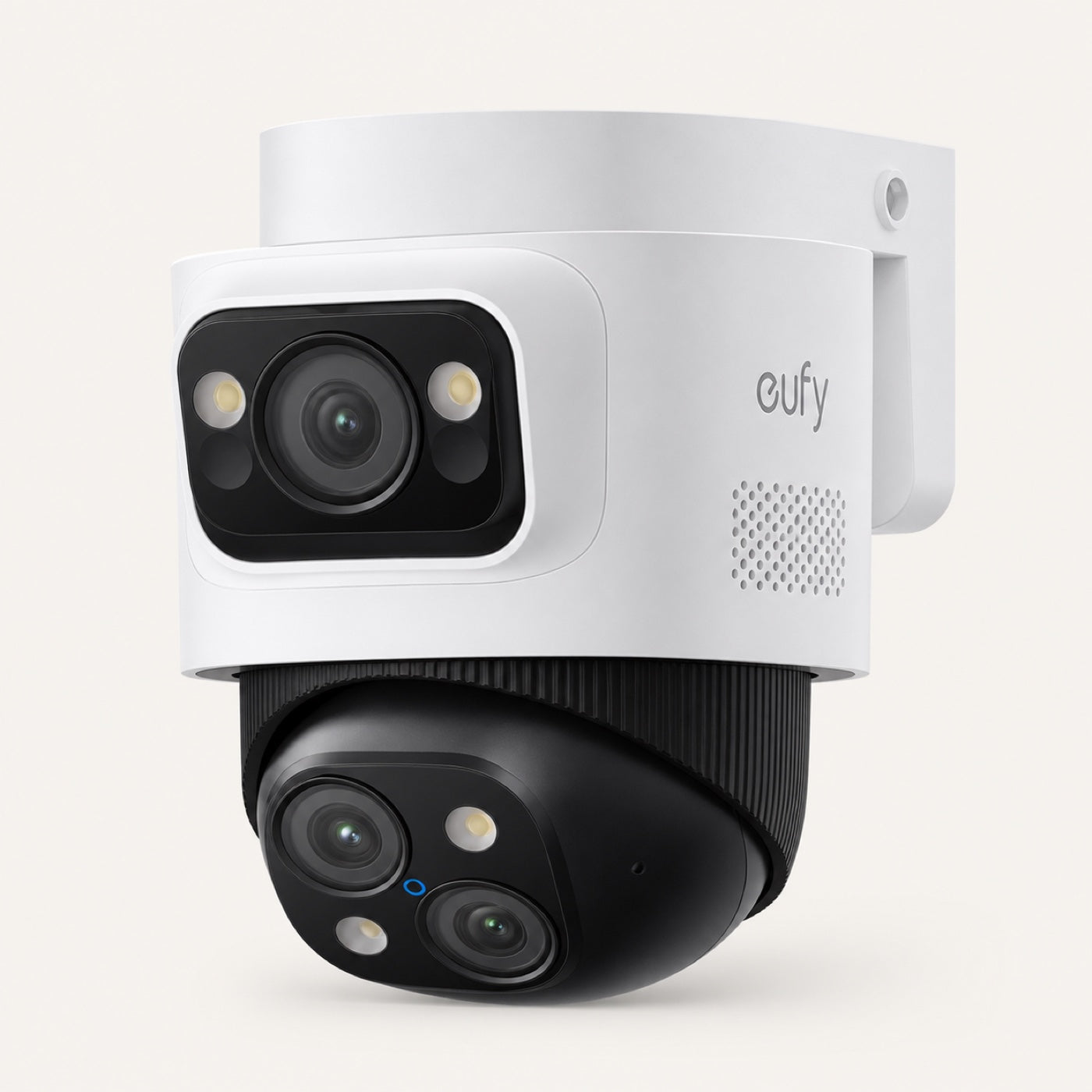

One camera, three coordinated views
The fixed overview preserves context while the two PTZ views support closer inspection. The aggregate resolution across all three views is 16 MP.
Three coordinated views per camera
One 8 MP/4K fixed view and two 4 MP/2K PTZ views form the aggregate 16 MP design. It is not one 16 MP lens.
Pan, tilt and zoom for inspection
The PTZ assembly provides 360° horizontal pan, a 0°–70° vertical range and 8× hybrid zoom.
Detection and tracking stay qualified
Person, vehicle, pet and stranger detection, local keyword video search and cross-camera tracking are supported. Performance depends on the scene and configuration.
Night modes for different scenes
Infrared and color night modes support low-light viewing, while full-duplex two-way audio supports communication.
Local and networked viewing paths
View through the NVR's local HDMI interface, the eufy Security app or web access. Networked features require customer-supplied service, a router and a eufy account.
Compatibility boundaries matter
PoE Cam S4 works only with NVR S4 and cannot operate as a standalone camera. The NVR does not support cameras from other brands.
INSTALLATION & COVERAGE
Build the cable, placement and viewing plan first
This guidance exposes the pre-purchase decisions that can change camera positions, cable routes, recorder placement and network access.
SITE-PLAN CONCEPT
Eight camera jobs, eight measured Ethernet routes
Assign each camera a zone, measure the complete path and bring every PoE route back to one indoor NVR location. Eight 18 m camera Ethernet cables are included.
- Camera zone 1
- Camera zone 2
- Camera zone 3
- Camera zone 4
- Camera zone 5
- Camera zone 6
- Camera zone 7
- Camera zone 8
Indoor recorder location
Power · LAN · ventilation
-
CLEARVERO PLANNING
Define eight camera jobs
List the entrances, boundaries, routes or parking areas that matter. Give each camera one clear monitoring purpose before fixing its location.
-
WIRED CONNECTIONS
Measure every Ethernet path
Eight 59 ft / 18 m camera Ethernet cables are included. Direct PoE Ethernet runs are documented up to 100 m; plan each complete route and any separately sourced cabling.
-
RECORDER CAPACITY
Choose an indoor recorder location
NVR S4 is indoor equipment. Place it where all eight camera runs can reach while preserving power, ventilation and customer network access.
-
NETWORK REQUIRED
Plan customer network access
The camera transport is wired PoE. App, web and remote features also require customer-supplied network service, a router and a eufy account.
-
PERFORMANCE CONDITION
Check sightlines and lighting
Tracking and detection depend on placement, obstructions, lighting, the scene and configuration. Confirm the field of view before drilling or routing cable.
-
STORAGE PLANNING
Choose storage without guessing retention
The installed 2 TB drive can be replaced with a compatible drive up to 16 TB. Recording duration depends on camera settings, recording mode and scene activity.
BUYING GUIDANCE
A strong fit starts with the right infrastructure
Use these signals to decide whether an eight-camera wired system matches the property and installation plan.
You have several distinct monitoring zones
Eight camera positions can separate coverage questions that would otherwise compete for the same view.
Wired Ethernet routes are practical
The system is built around PoE cabling from every camera back to NVR S4.
Continuous local NVR recording is preferred
The preinstalled 2 TB hard drive stores recordings locally.
Eight cable routes cannot be completed
The included cameras are not wireless. Reconsider the layout if Ethernet cannot reach the planned positions.
Other-brand camera support is required
NVR S4 does not support cameras from other brands, and PoE Cam S4 works only with NVR S4.
More than eight S4 cameras are required
All eight supported S4 camera positions are occupied by this bundle.
SPECIFICATIONS
Technical detail, grouped by the component it describes
Compare camera and NVR limits below before planning eight wired camera routes and local storage.
Camera imaging
- Camera count
- 8 × PoE Cam S4
- Aggregate resolution
- 16 MP across one 8 MP/4K fixed view and two 4 MP/2K PTZ views
- Fixed field of view
- 123.3° diagonal / 105.4° horizontal / 58.8° vertical
- Horizontal pan
- 360°
- Vertical range
- 0°–70°
- Zoom
- 8× hybrid; 3× optical; 5× digital
Detection, night and audio
- Local detection
- Person, vehicle, pet and stranger
- Cross-camera tracking
- Up to 164 ft / 50 m; conditions apply
- Search
- Local keyword video search
- Night modes
- Starlight, spotlight/color and infrared
- Audio
- Full-duplex two-way audio
- Noise handling
- AI noise reduction
NVR and storage
- Recorder
- NVR S4, T8N00 family
- Installed storage
- Preinstalled 2 TB mechanical hard drive
- Drive bay
- Single user-replaceable 3.5-inch bay
- Replacement ceiling
- Compatible drive up to 16 TB
- Camera ports
- Eight physical PoE ports
- S4 camera limit
- Eight S4 cameras; all eight included
Network and environment
- Camera connection
- Single Ethernet cable for power and data
- PoE standard
- IEEE 802.3af/at; up to 30 W per port
- Direct Ethernet run
- Up to 100 m
- Camera environment
- IP65; −30°C to 45°C
- NVR environment
- Indoor; −10°C to 40°C; 20 mm side clearance
- Compatibility
- PoE Cam S4 requires NVR S4; other-brand cameras unsupported
WHAT ARRIVES
What's included
This kit includes eight cameras, the NVR, and the stated cables. Mounting and weatherproof accessories are described without exact packed counts.

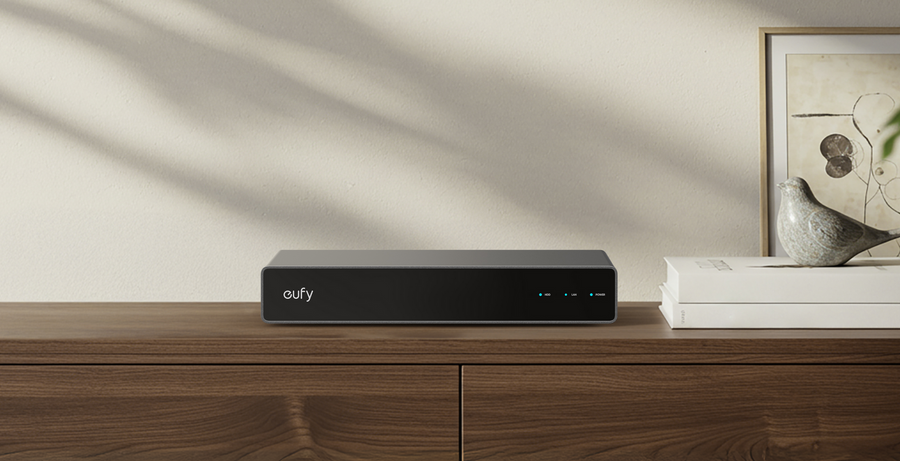

Network Video Recorder S4
Includes the preinstalled 2 TB hard drive.
PoE Cam S4 cameras
Eight white triple-lens wired cameras.
59 ft / 18 m camera Ethernet cables
One long camera cable for each included camera.
Recorder connection cables
One 3.3 ft / 1 m Ethernet cable and one HDMI cable.
Power adapter and USB mouse
Recorder power and local interface accessories.
Camera mounting and connection hardware
Mounting hardware and weather-resistant connection accessories are included for the cameras.
Quick Start Guide
The included setup reference.
PLAN SEPARATELY
Not included, optional and compatibility boundaries
Plan site-specific Ethernet, networking, storage, or installation additions separately.
Network service, router and eufy account
Required for networked and remote features; not included in this bundle.
Compatible replacement hard drive
The installed 2 TB drive can be replaced with a compatible 3.5-inch drive up to 16 TB.
Additional Ethernet cabling
Plan separately only when the included 18 m leads do not cover the measured routes; direct runs are supported up to 100 m.
Local HDMI display
The NVR supports a local HDMI interface; a display is not listed among the included items.
Professional installation
May be useful when cable routing, mounting or site conditions require specialist work.
Other-brand cameras
NVR S4 does not support cameras from other brands.
Additional PoE Cam S4 units
This bundle includes eight S4 cameras, using the recorder’s full S4 camera capacity.
BUYER FAQ
The questions worth answering before installation day
These answers focus on package contents, infrastructure, limits and compatibility—the details most likely to change a buying decision.
What exactly is included?
You receive one NVR S4 with a preinstalled 2 TB hard drive; eight PoE Cam S4 cameras; eight 59 ft / 18 m camera Ethernet cables; one 3.3 ft / 1 m Ethernet cable; one HDMI cable; one power adapter; one USB mouse; mounting hardware and weatherproof connection accessories for the included cameras; and one Quick Start Guide.
Are the included cameras wireless?
No. Each PoE Cam S4 uses one Ethernet connection for power and data and works only with NVR S4.
How much storage is installed?
The NVR S4 includes a preinstalled 2 TB mechanical hard drive. Local recording and supported local features require no paid subscription. Recording duration depends on settings and scene activity. Optional cloud, monitoring, membership and third-party services may have separate fees and terms.
Can the hard drive be replaced?
Yes. The single 3.5-inch drive bay is user-replaceable and supports a compatible drive up to 16 TB.
Can I add more PoE Cam S4 cameras?
This bundle includes the maximum eight S4 cameras supported by one NVR S4.
What does the triple-lens design provide?
Each camera combines one 8 MP/4K fixed overview with two 4 MP/2K PTZ views. The 16 MP figure is the aggregate across all three views.
What movement and zoom are supported?
The PTZ assembly provides 360° horizontal pan, a 0°–70° vertical range and 8× hybrid zoom.
Does tracking guarantee every event will be captured?
No. Cross-camera tracking is supported up to 164 ft / 50 m, but detection and tracking depend on placement, obstructions, lighting, the scene and configuration.
What night and audio features are supported?
The cameras support infrared and color night modes plus full-duplex two-way audio. Results depend on scene conditions.
Can every component be installed outdoors?
No. The PoE Cam S4 cameras are IP65-rated outdoor equipment. NVR S4 is indoor equipment.
What customer network items are required?
Networked and remote features require customer-supplied network service, a router and a eufy account. They are not included.
Can I use cameras from another brand?
No. NVR S4 does not support cameras from other brands, and PoE Cam S4 cannot operate as a standalone camera.
How long are the included camera cables?
Eight 59 ft / 18 m camera Ethernet cables are included. Direct PoE Ethernet runs are documented up to 100 m when the site plan requires separately sourced cabling.
What warranty applies?
This Eufy product has a 2-Year ClearVero™ Product Warranty. Read the linked warranty policy for coverage and exclusions; the 30-Day Money-Back Guarantee has separate return terms.
What return support is presented?
The purchase area links to ClearVero's Hassle-Free Returns and separate 30-Day Money-Back Guarantee policy information.
Are packed weight and dimensions available?
Review ClearVero's shipping policy for delivery terms.
COMPATIBLE ADDITIONS
Compatible additions, selected by ClearVero
These accessories are matched to the selected configuration. Choose only what your installation needs.
OPTIONAL
Eufy Smart Display E10 (T87A0120)
$249.99 USD
Local live view and control without relying on a phone.
Useful when: Local live view and control without relying on a phone.
Not needed when: A phone/tablet is sufficient or an E10 is already included.
Compatibility: Compatible with eufyCam S4 (T8172), SoloCam S340, PoE Cam S4/E41, HomeBase S380 and HomeBase Professional S1.
Sold separately.
Available
UPGRADE
WD Purple 8TB Surveillance Hard Drive (WD85PURZ)
$409.99 USD
Enables recording on the no-HDD system or increases retention where replacement is justified.
Useful when: Enables recording on the no-HDD system or increases retention where replacement is justified.
Not needed when: Installed storage is sufficient or the parent uses a 2.5-inch HomeBase S380 bay.
Compatibility: New 8 TB WD Purple surveillance hard drive, 3.5-inch SATA. Match the drive to the system's supported capacity and available drive bay.
Sold separately.
Available
CONFIRM THE SYSTEM, THEN PLAN THE SITE
Ready for an eight-camera wired PoE system?
Choose this configuration when eight camera positions, local NVR recording and a preinstalled 2 TB hard drive match the installation plan. ClearVero can help review cable routes and customer-supplied infrastructure before purchase.
- Eight PoE Cam S4 cameras
- NVR S4 included
- Preinstalled 2 TB hard drive
SKU BUNDLE-E8E00121-1-T8E00121-4
$2,819.99 USD
Uses the quantity and selected Shopify configuration in the purchase area above.
