Keep context while looking closer
Each PoE Cam S4 combines a fixed 4K overview with two 2K pan-tilt-zoom views. That means one camera can preserve the wider scene while helping you inspect activity in more detail.
EUFY SMART DISPLAY + POE SECURITY

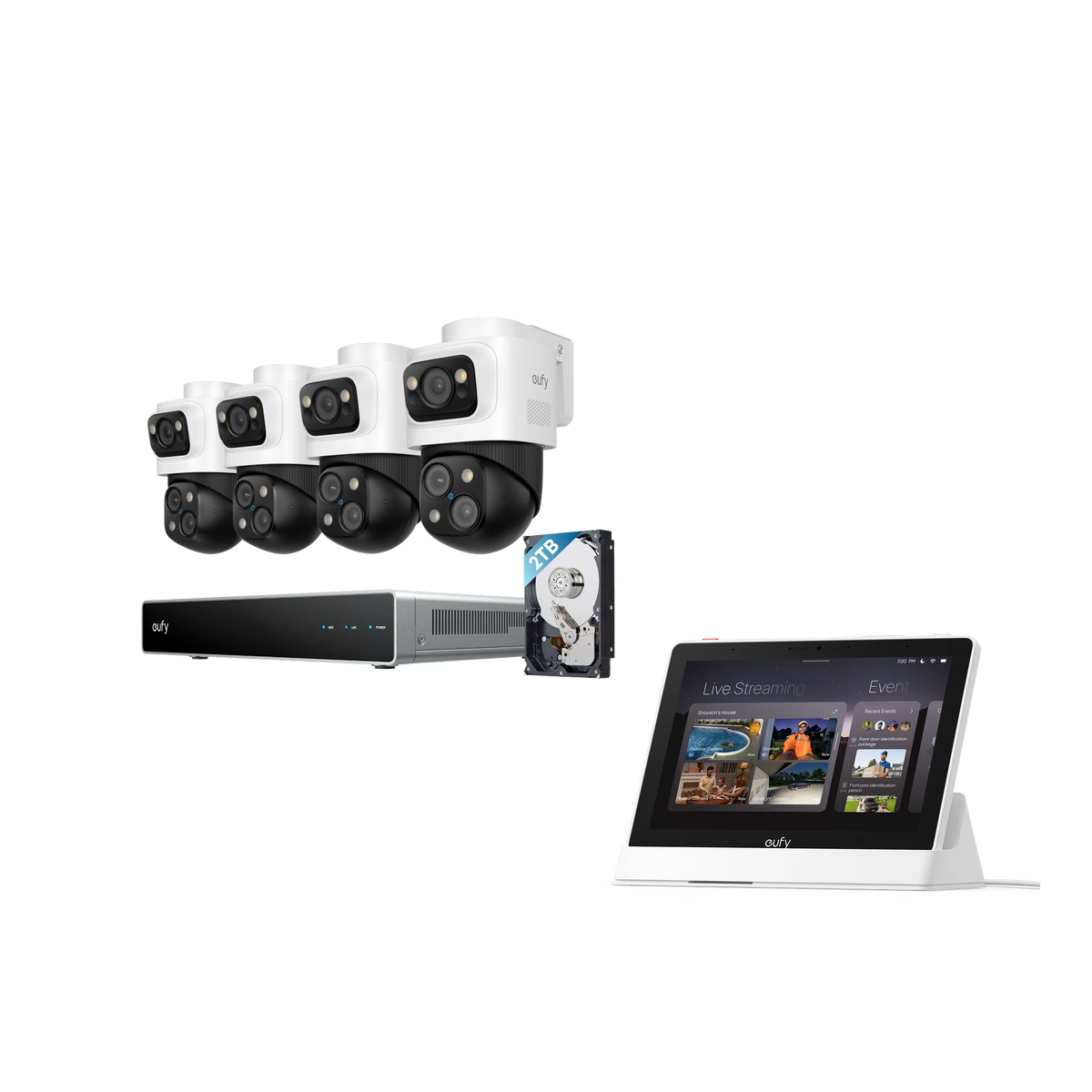

eufy Smart Display E10 + eufy PoE NVR Security System S4 Max
A dedicated indoor display, four wired PoE cameras, and continuous local recording—configured to help you plan entrances, perimeter zones, and activity across a larger property.
- Smart Display E10 + 4-Camera System
- NVR S4 · Preinstalled 2 TB HDD
AT A GLANCE
Product Overview
A four-camera wired PoE recording system with a preinstalled 2 TB drive and dedicated eight-inch Smart Display E10.
-
Smart Display E10
The included eight-inch display can show up to four compatible eufy feeds and includes its charging dock and wall bracket.
-
Four PoE Cam S4 cameras
Each triple-lens camera combines a 4K fixed view with two 2K PTZ views and 8× hybrid zoom.
-
Preinstalled 2 TB hard drive
The NVR S4 arrives with one 2 TB mechanical hard drive installed for continuous local recording.
-
NVR storage expandable to 16 TB
The recorder has eight PoE ports and supports a compatible 3.5-inch drive up to 16 TB.
-
Local AI and cross-camera tracking
Person, vehicle, pet and stranger detection pair with cross-camera tracking, night modes and two-way audio.
-
Four 59 ft camera cables
Four long Ethernet leads, camera mounts, waterproof covers and the core recorder connection accessories are included.
Full product details
eufy Smart Display E10 + eufy PoE NVR Security System S4 Max combines a dedicated 8-inch eufy monitoring display with a four-camera, 24/7 PoE recording system. The bundle includes one Smart Display E10 with charging dock and wall-mount bracket, one Network Video Recorder S4 with a preinstalled 2 TB hard drive, and four PoE Cam S4 cameras.
Each S4 camera combines one 4K fixed wide-angle view with two 2K pan-tilt-zoom views. The system supports 8× hybrid zoom, local person, vehicle, pet and stranger detection, live cross-camera tracking, two-way audio, and starlight, spotlight and infrared night modes. The NVR provides eight PoE ports and local storage that can be upgraded to 16 TB. Expansion to more channels requires compatible network hardware, and a maximum of eight S4 Bullet-PTZ cameras applies because each uses two video streams.
The Smart Display E10 can show up to four compatible eufy live feeds at once and connects over 2.4 GHz or 5 GHz Wi-Fi. The S4 cameras use wired Ethernet for power and data. Four 59 ft (18 m) camera Ethernet cables, one 3.3 ft (1 m) Ethernet cable, an HDMI cable, NVR power adapter, USB mouse, camera mounting hardware and waterproof cable covers are included.
The PoE cameras are rated IP65 for outdoor use. The NVR and Smart Display are indoor devices. A router and eufy account are required for networked and remote features. A PoE switch, additional cameras, storage beyond the installed 2 TB, HomeBase S380, eufy Wi-Fi Module, router, monitor and professional installation are not included. Third-party devices are not supported for the Smart Display, and third-party camera or NVR compatibility is not claimed.
WHY THIS CONFIGURATION
A clearer way to monitor a multi-zone property
This bundle brings a dedicated indoor display together with a wired, locally recorded camera system. Its practical value comes from how the parts answer different monitoring needs—not from treating every property as the same installation.
Anchor recording to a wired local system
Ethernet carries power and data to the cameras, while the NVR supports continuous local recording on the preinstalled 2 TB hard drive. The result is a system planned around fixed cable routes rather than camera Wi-Fi.
Give live monitoring a dedicated place
The indoor Smart Display E10 can show up to four compatible eufy live feeds at once, creating a convenient viewing point without making a phone the only everyday screen.
WHERE IT MAY FIT
Different properties create different monitoring questions
These scenarios are planning examples, not coverage guarantees. Each one highlights a distinct challenge and the infrastructure worth checking before installation.
ENTRANCE AWARENESS
Estate and property approaches
For gates, long approaches, or prominent entrances, the fixed view can retain scene context while PTZ views help examine movement. Placement should account for sightlines, mounting height, cable routing, and the distance to the activity that matters.
PERIMETER PLANNING
Boundaries and exterior routes
Separate camera positions may help observe activity along different property edges. Cross-camera tracking can support continuity between supported views, but performance still depends on placement, scene conditions, and unobstructed coverage.
MULTI-ZONE SITES
Large properties and multiple buildings
Four included cameras can be assigned to distinct exterior zones while recording returns to one NVR. Confirm each Ethernet route first; the included leads are 18 m, and direct runs have a documented 100 m limit.
ACTIVITY TRANSITIONS
Warehouses and loading exteriors
Person and vehicle detection can help surface activity around doors, loading areas, and exterior transitions without promising perfect identification. Plan mounting around traffic flow, lighting, obstructions, and protected cable paths.
VEHICLE AREAS
Parking and driveway observation
Wide context, PTZ views, vehicle detection, and night modes may help monitor arrivals and movement around parking areas. Camera position and scene lighting remain important, especially where vehicles or structures can block the view.
CENTRAL RECORDING
Campus and commercial exteriors
A central NVR can organize continuous local recording from several exterior zones. If the site may expand, account for the NVR's eight PoE ports, suitable switching, and the dual-stream limit of S4 cameras before fixing the network design.
HOW THE SYSTEM WORKS
From camera views to local recording and everyday access
The four S4 cameras and the NVR form the wired recording path. The Smart Display E10 is a separate Wi-Fi viewing device for compatible eufy feeds; it should not be mistaken for the recorder or the PoE connection point.
- PoE Cam S4 Fixed and PTZ views originate at four included cameras.
- Wired Ethernet Cat5 or Cat6 carries camera power and data.
- NVR S4 The indoor recorder manages feeds and stores video locally.
- Viewing paths Use local HDMI/GUI, the eufy Security app, or documented web access.
One camera, three coordinated views
Each PoE Cam S4 combines one 8 MP/4K fixed overview with two 4 MP/2K PTZ views. The 16 MP wording is the aggregate across those three views—not one 16 MP lens.
Three views with different jobs
The aggregate 16 MP camera architecture consists of one 8 MP fixed view and two 4 MP PTZ views. The fixed lens keeps the wider scene visible; the moving lenses provide closer perspectives.
Movement and zoom with clear limits
The PTZ system supports 360° horizontal pan, a 0°–70° vertical range, and 8× hybrid zoom. Hybrid zoom should not be read as 8× optical zoom.
Detection and tracking stay qualified
Local person, vehicle, pet, and stranger detection, keyword video search, and live cross-camera tracking are supported. Tracking is described up to 50 m, but actual performance depends on placement and scene conditions.
Choose the night mode for the scene
Starlight, spotlight/color, and infrared modes provide different ways to view low-light activity. Two-way audio and AI noise reduction add communication, while performance still depends on placement and scene conditions.
A separate indoor viewing surface
The 8-inch E10 connects over 2.4 GHz or 5 GHz Wi-Fi and can display up to four compatible eufy live feeds. It is an indoor device and is not currently managed through the eufy app.
Use the viewing path that fits the moment
The NVR supports local HDMI/GUI viewing plus documented eufy Security app and web access. Remote and networked functions require a router, network connection, and eufy account.
INSTALLATION & COVERAGE
Build the cable, placement, and viewing plan first
This is practical pre-purchase guidance, not a site-specific engineering design. The aim is to reveal the infrastructure decisions that can change camera placement, cable choice, recorder location, and expansion cost.
SITE-PLAN CONCEPT
Four camera jobs, four measured Ethernet routes
Assign each camera a specific zone, measure its complete path, and bring each PoE route back to an indoor recorder location with power, LAN access, and ventilation. Four 18 m Cat5 leads are included; direct Ethernet runs are documented up to 100 m.
- Camera zone 1
- Camera zone 2
- Camera zone 3
- Camera zone 4
Indoor recorder location
Power · LAN · ventilation
-
CLEARVERO PLANNING
Define the monitoring questions
List the entrances, boundaries, activity transitions, or parking areas that matter. Give each camera a specific job before deciding where the cable should end.
-
VERIFIED CABLING
Measure every Ethernet route
Four 18 m Cat5 camera cables are included. Direct Ethernet runs are documented up to 100 m; longer or expanded layouts require an appropriate network design.
-
VERIFIED GUIDANCE
Choose positions before drilling
eufy recommends mounting the cameras around 2–3 m high. Check the fixed-view orientation, PTZ movement, obstructions, lighting, and telephoto target before final mounting.
-
INDOOR RECORDER
Protect and ventilate the NVR
The recorder is indoor equipment rated for −10°C to 40°C and needs at least 20 mm of side ventilation clearance. Plan power, LAN, optional HDMI viewing, and cable entry around that location.
-
NETWORK REQUIRED
Separate camera transport from display Wi-Fi
The cameras use PoE Ethernet. The E10 uses 2.4/5 GHz Wi-Fi. A router and eufy account are required for networked and remote features.
-
EXPANSION CONDITIONS
Design expansion before buying add-ons
A switch-based plan should use suitable IEEE 802.3af/at PoE hardware with up to 30 W per port. The switch is not included, and S4 dual-stream limits still apply.
BUYING GUIDANCE
A strong fit starts with the right infrastructure
Use these signals to decide whether this configuration matches the property now—or whether a simpler or differently planned system would be more sensible.
You can route Ethernet to each camera
The system is built around wired camera power and data, not wire-free placement.
You want continuous local recording
The NVR and installed hard drive support a local 24/7 recording workflow.
A dedicated indoor display adds value
The E10 gives compatible eufy live feeds a separate viewing surface.
Four exterior zones match the initial plan
The bundle starts with four S4 cameras and one central recorder.
Your cable routes exceed the included lengths
Plan suitable additional cabling and verify the full topology before mounting.
The recorder or display would be exposed outdoors
Only the cameras carry the IP65 outdoor rating; the NVR and E10 belong indoors.
Third-party compatibility is essential
Third-party devices are unsupported for E10, and third-party camera or NVR compatibility is not claimed.
You expect immediate wireless or channel expansion
Required modules, switching, compatibility, availability, and S4 stream limits need separate verification.
VERIFIED SPECIFICATIONS
Technical detail, grouped by the component it describes
Values are intentionally component-scoped. Unverified weight, sensor-manufacturer, security-protocol, and other unsupported fields are omitted rather than filled for appearance.
Camera imaging
- Architecture
- One 8 MP/4K fixed view plus two 4 MP/2K PTZ views per camera
- Frame rate
- 20 fps for fixed and PTZ views
- Fixed lens
- f/1.6, 2.8 mm
- Fixed field of view
- 123.3° total; 105.4° horizontal; 58.8° vertical
- Fixed adjustment
- 10°–40° mechanical positioning
- Camera dimensions
- 164 × 147 × 92 mm
Viewing, movement & tracking
- PTZ lenses
- f/1.6; 2.8 mm and 8 mm
- PTZ field of view
- 117.1° and 45° total views
- Pan
- 360° horizontal
- Tilt
- 0°–70° vertical range
- Zoom
- 8× hybrid; official comparison also identifies 3× optical
- Tracking
- Auto-framing/group tracking up to 50 m; placement and scene conditions apply
Detection, night & audio
- Local detection
- Person, vehicle, pet, and stranger categories
- Video search
- Local keyword video search
- Night modes
- Starlight, spotlight/color, and infrared
- Warning lights
- Red/blue plus white warning light
- Audio
- Full-duplex two-way audio with AI noise reduction
- Subscription scope
- Documented local recording and AI features do not require a subscription
NVR & storage
- Recorder model
- NVR S4, T8N00 family
- Installed storage
- Preinstalled 2 TB mechanical hard drive
- Drive bay
- 3.5-inch bay
- Upgrade ceiling
- Up to 16 TB
- Camera ports
- Eight PoE ports
- Expansion limit
- Up to 16 channels with suitable switching; maximum eight S4 cameras due to dual streams
Network, power & viewing
- Camera transport
- PoE over Cat5 or Cat6 Ethernet
- Included camera cable
- Four 18 m Cat5 leads
- Direct Ethernet run
- Up to 100 m
- Switch guidance
- IEEE 802.3af/at, up to 30 W per port where used
- Viewing paths
- eufy Security app, NVR local GUI/HDMI, and documented web access
- Remote dependency
- Router, network connection, and eufy account
Smart Display E10
- Model
- T87A0120 / T87A0
- Display
- 8-inch, 1280 × 800 capacitive multi-touch LCD
- Wi-Fi
- 2.4 GHz and 5 GHz; official guide specifies Wi-Fi 6
- Live feeds
- Up to four compatible eufy feeds at once
- Storage
- 8 GB internal eMMC; microSD support up to 512 GB
- Charging & runtime
- Direct or dock charging at 5 V/2 A; rated over 24 hours, with actual use conditions applying
Environment & placement
- Camera weather rating
- IP65
- Camera temperature
- −30°C to 45°C
- Camera mounting
- Recommended 2–3 m / 7–10 ft
- NVR location
- Indoor; −10°C to 40°C
- NVR ventilation
- At least 20 mm side clearance
- E10 environment
- Indoor; recommended 0°C–40°C; avoid direct sun and excess moisture
Compatibility boundaries
- Smart home
- Works with Alexa and Google Voice Assistant; exact command coverage may vary
- E10 device scope
- Supports most devices on eufy's official compatibility list—not every eufy device
- E10 app management
- The E10 itself cannot currently be managed in the eufy app
- Wireless expansion
- Supported NVR wireless expansion requires the T8709 eufy Wi-Fi Module; not included and availability unverified
- Daily reports
- Described facial/package daily-report flow depends on HomeBase S380, which is not included
- Third-party devices
- Unsupported for E10; third-party camera or NVR compatibility is not claimed
WHAT ARRIVES
The verified bundle contents
Quantities are grouped for readability while preserving the complete Task 1 bill of materials.
Smart Display E10
T87A0120 / T87A0 display with one charging dock and one wall-mount bracket.
Network Video Recorder S4
T8N00-family recorder with one preinstalled 2 TB mechanical HDD, one NVR power adapter, and one USB mouse.
PoE Cam S4
T8E00-family cameras, each with one mounting bracket, one screw pack, and one waterproof cover pack.
Documented cables
Four 18 m Cat5 camera Ethernet cables, one 1 m Ethernet cable, and one HDMI cable.
Quick Start Guide
Official setup and safety documentation for the system.
PLAN AROUND YOUR PROPERTY
Optional additions for your installation
These are not missing promises. They are property-dependent choices, customer infrastructure, or compatibility boundaries to consider only when they serve the installation plan.
Additional compatible cameras
Consider only after checking the exact camera type, port/channel plan, and S4 dual-stream limit. No additional camera is included.
Suitable PoE switch
May be needed for specific expansion or topology choices. It is not included and should meet the documented PoE requirements.
Additional Ethernet cabling
Property layout may call for runs beyond the included lengths. eufy prefers Cat6 for extensions.
Storage upgrade
The recorder includes 2 TB. A replacement or larger drive is a separate future purchase, not additional storage in the box.
HomeBase S380
Not included. It is relevant only to specifically documented E10 facial/package daily-report workflows.
T8709 eufy Wi-Fi Module
Not included. It is described for supported wireless eufy-device expansion, but current availability remains unverified.
Local monitor or TV
Not included. Add one only if you want to use the NVR's local HDMI viewing path.
Router, network service, and eufy account
These are not in the package and are required for networked and remote features.
Professional installation
Installation labor is not part of this product. Any future service should be confirmed separately before purchase.
Third-party integrations
Do not plan this bundle around third-party devices: E10 does not support them, and third-party camera or NVR compatibility is not substantiated.
BUYER FAQ
The questions worth answering before installation day
These answers focus on package contents, infrastructure, limits, and compatibility—the details most likely to change a buying decision or installation plan.
What exactly is included in this bundle?
You receive one Smart Display E10 with charging dock and wall-mount bracket; one NVR S4 with preinstalled 2 TB hard drive, power adapter, and USB mouse; four PoE Cam S4 cameras with four brackets, four screw packs, and four waterproof cover packs; four 18 m Cat5 camera cables; one 1 m Ethernet cable; one HDMI cable; and one Quick Start Guide.
Are the included cameras wireless?
No. The four S4 cameras use PoE Ethernet for both power and data. The Smart Display E10 is the Wi-Fi device in this bundle and connects over 2.4 GHz or 5 GHz.
What infrastructure should I plan before mounting?
Map each camera position and Ethernet route, choose an indoor ventilated NVR location with power and LAN access, and confirm the router/account setup for networked features. Decide whether you also want a local HDMI display.
How long are the included camera cables, and can I run farther?
Four 18 m Cat5 camera cables are included. Direct Ethernet runs are documented up to 100 m. Longer or more complex routes need a suitable network design; eufy prefers Cat6 for extensions.
Is a PoE switch required or included?
A switch is not included and is not required for the basic direct-to-NVR layout. Certain expansion or topology choices may need a suitable IEEE 802.3af/at switch providing up to 30 W per port.
What does the S4 camera's triple-lens design actually provide?
Each camera combines one 8 MP/4K fixed overview with two 4 MP/2K PTZ views. The fixed view preserves wider context while the moving views support closer inspection. The 16 MP wording is an aggregate across those three views.
How do pan, tilt, and zoom work?
The camera supports 360° horizontal pan, a 0°–70° vertical range, and 8× hybrid zoom. Do not interpret the hybrid figure as 8× optical zoom; eufy's comparison material separately identifies 3× optical zoom.
Does detection or tracking guarantee every event will be captured?
No. Person, vehicle, pet, and stranger detection plus cross-camera tracking are supported, with tracking described up to 50 m. Real performance depends on placement, scene conditions, obstructions, lighting, and configuration.
What happens at night, and is two-way audio included?
The cameras support starlight, spotlight/color, and infrared night modes, plus red/blue and white warning lights. Full-duplex two-way audio and AI noise reduction are also supported.
Where is video recorded, and how much storage is installed?
The NVR supports continuous local recording and includes a preinstalled 2 TB mechanical hard drive. The recorder can be upgraded to 16 TB; 16 TB is the supported ceiling, not the amount supplied.
How far can the NVR expand?
The NVR has eight PoE ports and can support up to 16 channels through suitable switching. Because each S4 camera uses two streams, the maximum for S4 cameras is eight. The included four S4 cameras use eight streams.
What does the Smart Display E10 add, and can I manage it in the eufy app?
The E10 is an indoor 8-inch display that can show up to four compatible eufy feeds at once. The display itself cannot currently be managed through the eufy app; no future-update promise is made.
Will this work with every eufy or third-party device?
No. E10 supports most devices on eufy's official compatibility list, not every eufy device. Third-party devices are unsupported for E10, and third-party camera or NVR compatibility is not claimed.
Which components can be installed outdoors?
The PoE Cam S4 units are IP65-rated and specified for −30°C to 45°C. The NVR and Smart Display are indoor devices. The recorder also needs at least 20 mm of side ventilation clearance.
How long can the E10 operate away from its charger?
The official guide rates operation at more than 24 hours. Actual runtime varies with use and conditions; keep the dock or a 5 V/2 A charging option available for continuous placement.
Do the documented local recording and AI features require a subscription?
eufy states that the documented local recording, detection, tracking, and search features do not require a subscription. That is not a blanket promise about optional cloud, membership, or third-party services.
What might I need to add for my property?
Depending on the layout, you may consider additional compatible cameras, cable, a suitable PoE switch, a storage upgrade, or a customer-supplied HDMI display. A router, network service, and eufy account are separate prerequisites for networked features. Professional installation is not included.
Are HomeBase S380 or the eufy Wi-Fi Module included?
No. HomeBase S380 is relevant only to specifically documented E10 daily-report workflows. The T8709 Wi-Fi Module is described for supported wireless eufy-device expansion, but it is not included and its current availability is unverified.
How are warranty and returns handled?
The current ClearVero product warranty term is shown near the purchase controls from the centralized warranty source. The 30-Day Money-Back Guarantee is separate; review the linked warranty and refund policies for the applicable terms.
How will shipping cost and timing be confirmed?
Shipping availability, timing, and any applicable charges are confirmed through ClearVero's current shipping terms and checkout for the destination. This page does not invent packed dimensions, weight, or a temporary shipping promotion.
CONFIRM THE SYSTEM, THEN PLAN THE SITE
Ready for a wired, locally recorded four-camera system?
Choose this bundle when you want a dedicated E10 display alongside an S4 Max installation built around wired cameras and local NVR recording. ClearVero can help you think through cable routes and optional infrastructure before purchase.
- Smart Display E10 included
- Four PoE Cam S4 cameras
- NVR S4 with preinstalled 2 TB HDD
SKU BUNDLE-T87A0120-1-E8E00121-1
$1,749.99 USD
Uses the quantity and selected configuration in the purchase area above.
