2K battery video doorbell + encrypted Home Hub
Reolink · Video Doorbell Battery D340B + Home Hub
Reolink 2K Battery Video Doorbell + Home Hub Kit
See every arrival. Keep every recording closer to home. A head-to-toe 2K doorbell and indoor Home Hub work together for intelligent visitor alerts, encrypted local recording, two-way talk, and flexible battery or existing-wire installation.
$385.00
microSD card not included. Add a compatible card to the doorbell or Home Hub for local recording.
1-Year ClearVero™ Product Warranty
1-Year ClearVero™ Dedicated Customer Support
30-Day Return-Request Period
100% Secure Checkout
Delivered in 7 business days after processing
Doorstep clarity. Indoor control.
A complete front-door security system
One system, two coordinated devices
See, answer, store, and review from one connected setup.
The IP65-rated doorbell captures visitors from head to toe, sends instant call-style alerts, and lets you speak through the Reolink App. Inside, the Home Hub centralizes chimes, smart event history, compatible cameras, and encrypted recordings.

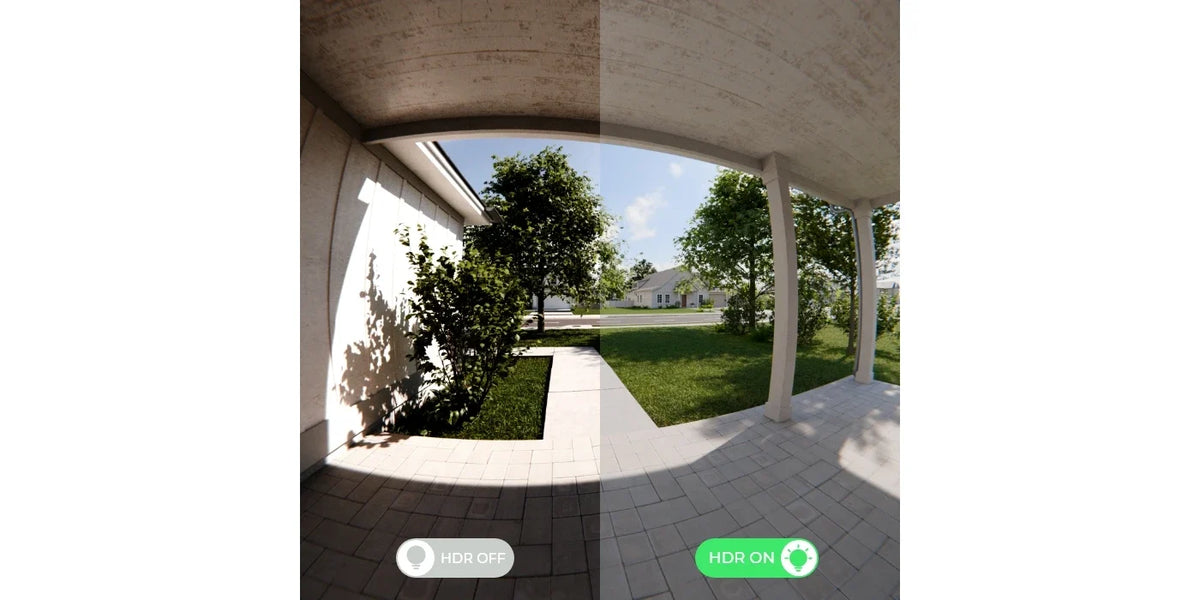

- 150° horizontal and vertical field of view
- Person, vehicle, package, and motion detection
- Two-way audio, noise reduction, echo suppression, and quick replies
- Infrared night viewing and HDR
Local storage and privacy
Your recordings can stay closer to home.
The Home Hub uses AES-128 storage encryption and supports two microSD slots, each stated to accept up to 1 TB. It also serves as an indoor chime and alarm center with smart playback and event history.

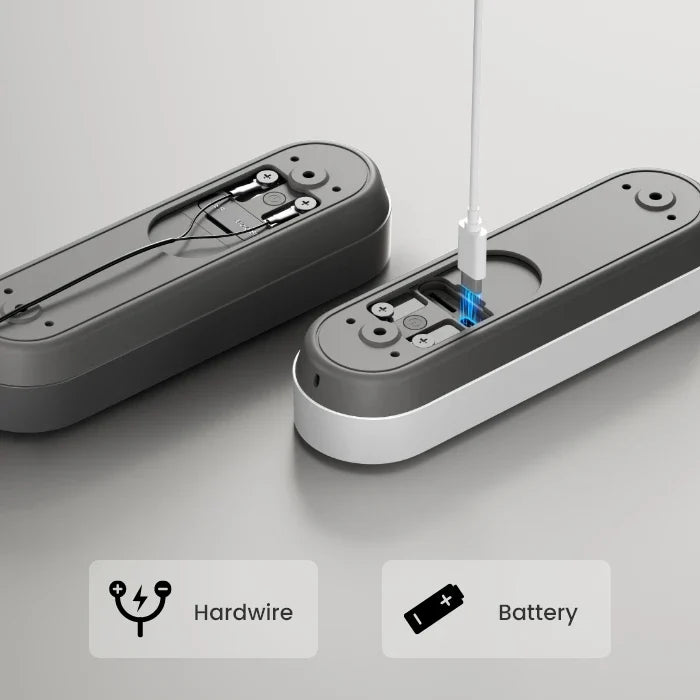

Power and installation
Install on battery power or use compatible doorbell wiring.
Mount with the included plate and wedge, recharge through USB-C, or connect to a compatible 8–24 V AC or 24 V DC supply. For AC installations, Reolink also states a 5 VA–40 VA requirement.
Initial Ethernet setup is required.
Connect the Home Hub to power and to your router with the included Ethernet cable. Keep the phone running the Reolink App on the same network during initialization.
No professional installation service is included. Follow Reolink instructions and local electrical requirements.

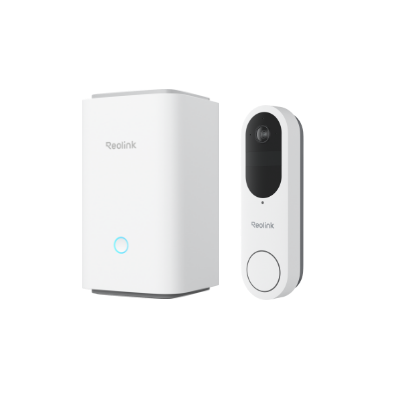

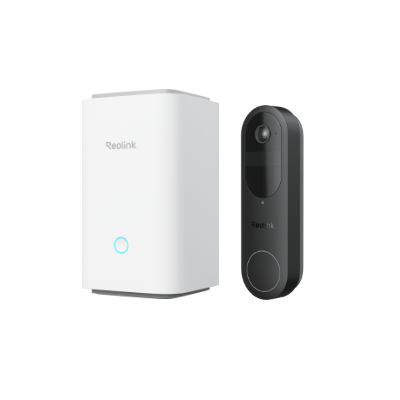

In the box
Everything listed in the verified no-card kit
No microSD card and no separate plug-in chime are included.
- 1× Reolink Home Hub
- 1× Reolink Video Doorbell (Battery)
- 1× pack of jumper cables
- 1× pack of extension cables
- 1× Home Hub power adapter
- 1× 1 m Ethernet/network cable
- 1× mounting plate
- 1× wedge
- 1× USB-C cable
- 2× quick-start guides
Technical specifications
Doorbell and Home Hub specifications
The specifications are separated below so power, storage, temperature, and connectivity details are never conflated.
Reolink Video Doorbell (Battery) — D340B
- Video
- 2048 × 2048 at 15 fps; 2K / 4 MP; 1:1 aspect ratio; H.264/H.265
- View
- 150° horizontal; 150° vertical; 180° diagonal
- Imaging
- 1/3.11-inch CMOS; 1.2 mm F1.8 fixed lens; HDR; infrared night viewing
- Detection
- Motion, person, vehicle, and package
- Audio
- Two microphones, one speaker, two-way talk, quick replies
- Power
- 7,000 mAh rechargeable battery; USB-C; 8–24 V AC or 24 V DC hardwire input
- Connectivity
- 2.4/5 GHz Wi-Fi; IEEE 802.11 a/b/g/n; WPA/WPA2
- Doorbell storage
- microSD up to 256 GB; card not included
- Weather
- IP65; 14°F to 131°F (-10°C to 55°C); 10%–90% humidity
- Size and weight
- 160.0 × 48.0 × 29.5 mm; 231 g
Reolink Home Hub
- Capacity
- Up to eight compatible cameras total
- Router connection
- One 10/100 Mbps RJ45 WAN port; Ethernet required for initial setup
- Hub Wi-Fi
- Wi-Fi 6; 2.4/5 GHz; WPA/WPA2/WPA3
- Power
- DC 12 V / 1 A
- Storage
- Two microSD slots, up to 1 TB each; no card included; no SATA/HDD
- Privacy
- AES-128 storage encryption
- Chime and access
- Built-in speaker up to 115 dB; one admin plus 10 shared accounts
- Software
- Reolink App/Client on iOS, Android, Windows, and macOS
- Environment
- Indoor use; 14°F to 113°F (-10°C to 45°C); 10%–90% humidity
- Size and weight
- 95 × 95 × 161.8 mm; 441 g
Read before ordering
Important Customer Disclosures
- Initial Ethernet setup is required. The current US kit page does not clearly promise that Ethernet can be removed afterward.
- The doorbell can operate without the Home Hub. The hub adds centralized encrypted storage, chime/alarm functions, management, and the manufacturer’s low-power-link benefit.
- No memory card is included. Local recording requires a compatible microSD card in the doorbell or Home Hub.
- Cloud is optional and region-dependent. Rich notifications require a Reolink Cloud subscription; availability and pricing can vary.
- Core local operation is not presented as requiring a monthly storage fee. Optional cloud services can cost extra.
- Battery runtime is not guaranteed. Reolink markets up to six months with the Home Hub, but settings, activity, connection, and temperature materially affect runtime.
- Hardwiring has electrical limits. Use 8–24 V AC or 24 V DC and follow the stated 5 VA–40 VA AC requirement.
- The Home Hub is indoor equipment. Only the doorbell carries the IP65 rating.
- Compatibility varies. Home Hub support depends on camera model, hardware, and firmware. Check Reolink’s current matrix before adding another camera.
- Storage is finite. Retention depends on card capacity, camera count, bitrate, event frequency, and recording duration.
- Manufacturer and ClearVero™ warranties are separate. Reolink eligibility and remedies are governed by Reolink terms.
- No professional installation is included. Installation accessories and guides are included, but installation service is not.
Frequently asked questions
What to know before setup
Does the doorbell work without the Home Hub?
Yes. It supports standalone dual-band Wi-Fi and its own microSD storage. The Home Hub adds centralized encrypted storage, indoor chime/alarm functions, device management, and a low-power connection benefit.
Does the Home Hub need Ethernet?
Ethernet is required for initial setup. Connect the hub to your router and keep your phone on the same network during initialization. ClearVero™ does not promise that Ethernet can be removed afterward for this exact hardware and firmware.
Is a microSD card included?
No. This is the verified no-card configuration. The doorbell supports up to 256 GB, while the Home Hub supports up to 1 TB in each of two slots.
Does the Home Hub act as a chime?
Yes. Its built-in speaker provides indoor doorbell alerts and alarm-center functions. A separate plug-in Reolink Chime is not listed in the box.
Can I use existing doorbell wiring?
The doorbell supports 8–24 V AC or 24 V DC input. Reolink also states 5 VA–40 VA for compatible AC wiring. Follow Reolink instructions and local electrical requirements.
How long does the battery last?
Reolink markets up to five months standalone and up to six months with the Home Hub. Actual runtime can vary materially with settings, activity, recording time, connection, temperature, and environment.
Do I need a subscription?
Live view, local recording, two-way audio, and local smart detection are not presented as requiring a recurring plan. Optional Reolink Cloud is region-dependent, and rich notifications require a cloud subscription.
Which cameras work with the Home Hub?
The hub supports up to eight compatible Reolink cameras. Compatibility is model-, hardware-, and firmware-dependent, so check Reolink’s current compatibility matrix before adding another camera.
Does it work with Alexa and Google Assistant?
Yes. The included doorbell supports Amazon Alexa and Google Assistant where the relevant Reolink integration is available.
What ClearVero™ coverage is included?
The purchase includes a 1-Year ClearVero™ Product Warranty, 1-Year ClearVero™ Dedicated Customer Support, and a 30-Day Return-Request Period, subject to the applicable ClearVero™ policies.
A clearer view of every arrival
Bring the doorbell and encrypted Home Hub home together.
Choose Black or White. Both color variants are $385.00.
